Sections & profiles

HEA/HEB, IPE, UPN, angles, flat bar, hollow sections, C-Z purlins, guardrail, slotted angle.

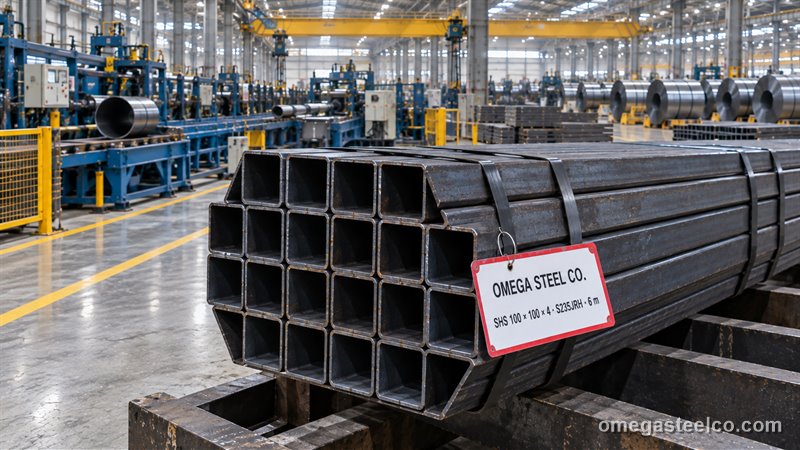

Hollow sections SHS / RHSEN 10219 S235JRH–S355J2H, black, galvanized and pre-painted; 15×15 to 400×400 mm.Manufactured in DilovasıSquare hollow sectionsSquare tube 15×15 to 250×250 mm, wall 1.2–10 mm, S235JRH / S355J2H, from our tube mill; kg/m table.From stockRectangular hollow sectionsRectangular tube 10×20 to 200×300 mm, wall 1.2–10 mm, S235JRH / S355J2H, from our tube mill; kg/m table.From stockGalvanized square tubePre-galvanized square hollow sections 20×20 to 100×100 mm from DX51D+Z275 strip, 1.35–3 mm; from our mill.From stockGalvanized rectangular tubePre-galvanized rectangular hollow sections 20×30 to 50×100 mm from Z275 strip, 1.35–3 mm; from our mill.From stockCold-rolled (DKP) box sectionsThin-wall box sections from DC01 cold-rolled strip, 10×10 to 90×90 mm, 0.7–2 mm, smooth surface for furniture and painting.From stockPre-painted box sectionsBox sections rolled from painted strip — RAL 9016 white, 7016 anthracite, 3009 red, 9005 black — 15×15 to 100×100 mm; from our mill.From stockThick-wall hollow sectionsHeavy box sections 5–10 mm wall, 100×100 to 250×250 / 200×300, S235JRH / S355J2H, for columns and heavy frames.From stockS355J2H hollow sectionsEN 10219 S355J2H (ST52) square and rectangular hollow sections — the structural grade, 40×40 to 250×250, 3–10 mm.From stockC and Z purlinsRoll-formed galvanized purlins 100–350 mm, punched to drawing.Manufactured in DilovasıC purlinCold-formed lipped C (cee) purlins and girts, 100–300 mm, 1.5–3 mm, S280GD/S350GD Z275, punched to drawing.From stockZ purlinCold-formed lipped Z (zed) purlins for continuous lapped or sleeved roof systems, 120–350 mm, 1.5–3 mm, Z275.From stockOmega, sigma and M light profilesLight-gauge steel framing profiles.Manufactured in DilovasıOmega profileGalvanized omega (hat / top-hat) profiles 20–100 mm for cladding sub-frames, roof battens and solar rails, 0.5–2.5 mm.From stockM profileGalvanized M (furring / resilient) channels 15–40 mm for ceiling grids, wall lining and cladding furring, 0.5–1.2 mm.From stockH beams HEA / HEBEN 10365 wide-flange beams 100–600 mm.From stockIPE beamsEuropean parallel-flange I-beams IPE 80–600, S275JR / S355J2, 6 and 12 m, kg/m table.From stockIPN beamsTapered-flange I-beams (NPI) IPN 80–600 for older designs; S235JR / S275JR, kg/m table.From stockHEA beamsLight wide-flange H-beams HEA 100–1000 (IPBl), S275JR / S355J2, columns and beams, kg/m table.From stockHEB beamsStandard wide-flange H-beams HEB 100–1000 (IPB), S275JR / S355J2, heavy columns, kg/m table.From stockChannels UPN / UPEEN 10365 channels 50–400 mm.From stockUPN channelsTapered-flange U-channels UPN 50–400 (NPU), S235JR, 6 and 12 m, kg/m table.From stockUPE channelsParallel-flange U-channels UPE 80–400, S235JR / S355J2, 6 and 12 m, kg/m table.From stockAngles, equal & unequalEN 10056 angles 20×20 to 200×200 mm.From stockEqual anglesHot-rolled equal-leg angles L 20×20 to 200×200, S235JR / S355J2, 6 and 12 m, kg/m table.From stockUnequal anglesHot-rolled unequal-leg angles 40×20 to 200×150, S235JR / S355J2, 6 and 12 m, kg/m table.From stockFlat barHot-rolled flat bar 20×3 to 200×20 (lama), S235JR / S355J2, 6 m, kg/m table, cut and drilled.From stockHighway guardrail W-beamEN 1317 / AASHTO galvanized guardrail with posts and fittings.From stockCrane railsDIN 536 crane rails A45–A150 and S49 / UIC 60 railway rails, 700–900 MPa, 12 m, with clips, pads and welding.From stockGuardrail post (sigma / omega)Sigma, omega and C guardrail posts, HDG, punched, 1.5–2.2 m.From stockSlotted angleGalvanized and painted slotted angle for racking.Manufactured in DilovasıSteel grating (bar grating)Press-welded HDG bar grating 25×3–50×5, platforms cut to drawing, stair treads, drain covers.From stockOval & custom profilesRoll-formed special sections to drawing.Manufactured in Dilovası

Beam, channel or angle: matching the section to the load

An I or H section carries bending — depth is what resists it, so the deepest section that fits the space is almost always the efficient one. Within that, IPE is the light parallel-flange series and HEB the heavy one: at the same nominal depth an HEB carries far more steel and far more capacity.

A channel (UPN, UPE) has one open side and is used where something must bolt or weld to a flat face — purlins, frames, edge members. It is weaker in torsion than a closed section and should not be asked to twist.

Angles and flat bar are connection and bracing material. They are the cheapest product per tonne on this page and the easiest to over-specify: an angle sized for bending is usually the wrong member entirely.

Hot-rolled sections against cold-formed hollow section

Hollow sections close the shape, which makes them far stiffer in torsion and better looking in exposed steelwork. They also cost more per tonne than an open section, and every connection is harder — you cannot bolt through a closed tube without access.

The practical rule: open sections where connections are frequent and appearance does not matter; hollow sections where the member twists, where it is seen, or where a smaller footprint is worth the connection detail.

Why catalogue mass, not a formula

Flange taper, root radii and the fillet where web meets flange all carry steel that no height-by-width calculation accounts for. Section mass comes from the standard — EN 10365 for the European series, ASTM A6 for W and S shapes — and every weight on these pages is the catalogue figure.

That matters commercially: sections are invoiced on theoretical mass per metre, so the catalogue number is the number you pay on, not what the weighbridge says.

Everything in sections & profiles at a glance

Sections & profiles — size range, governing standard and availability
ProductRangeStandardAvailability
Hollow sections SHS / RHSEN 10219 · ASTM A500EN 10219 · ASTM A500Made in our plant

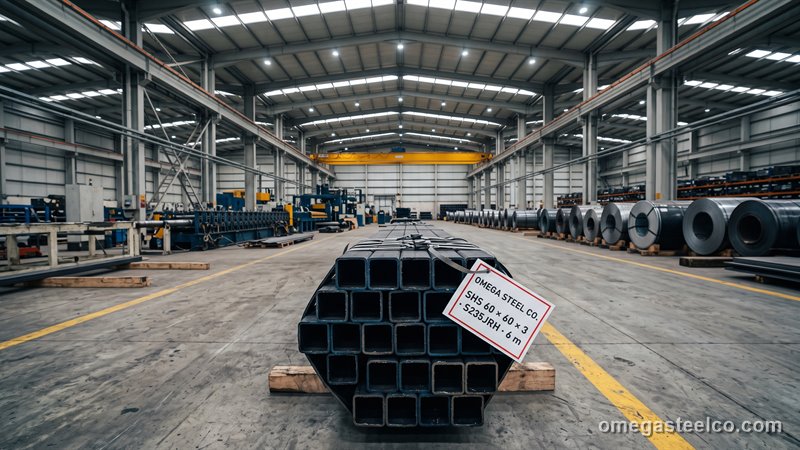

Square hollow sections15×15 – 250×250 mmWall 1.2–10 mmMade in our plant
Rectangular hollow sections10×20 – 200×300 mmWall 1.2–10 mmMade in our plant

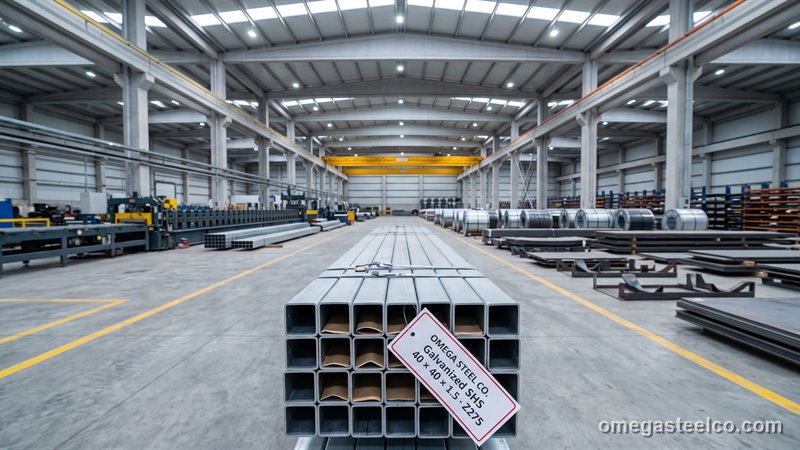

Galvanized square tube20×20 – 100×100 mmHDG option EN ISO 1461Made in our plant

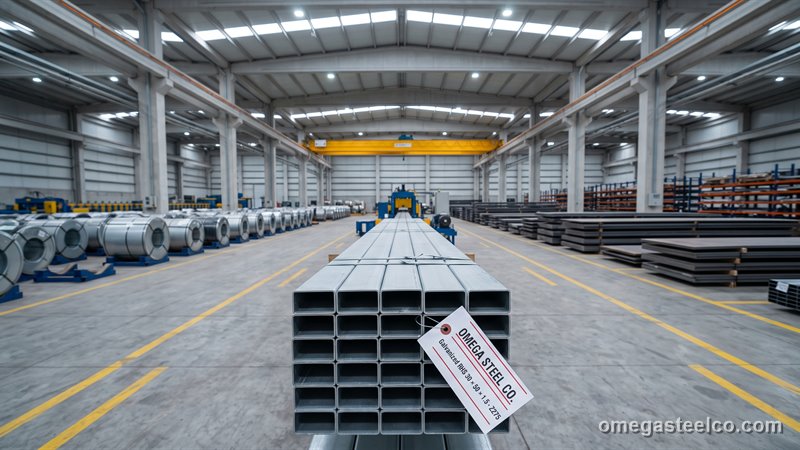

Galvanized rectangular tube20×30 – 50×100 mmWall 1.35–3 mmMade in our plant

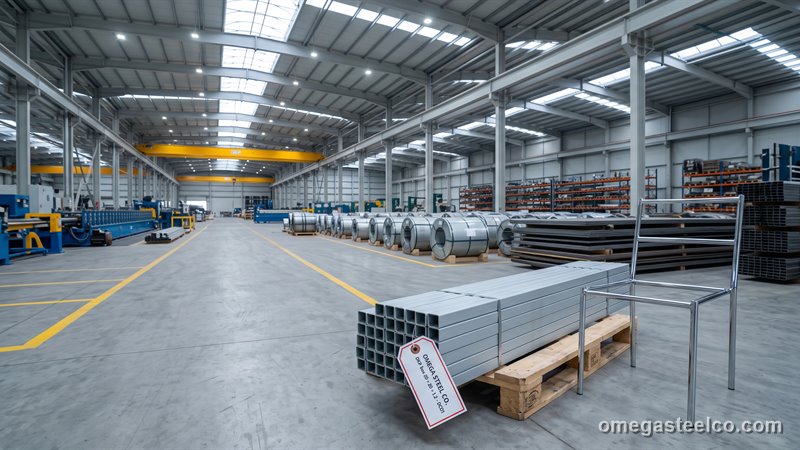

Cold-rolled (DKP) box sections10×10 – 90×90 mmWall 0.7–2 mmMade in our plant

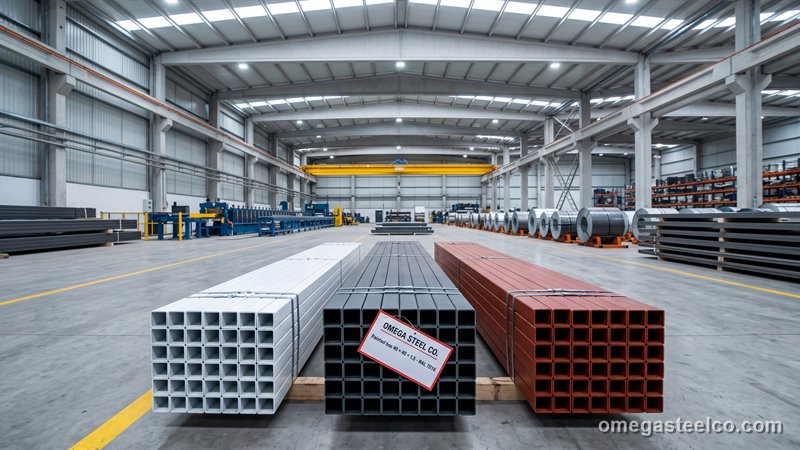

Pre-painted box sections15×15 – 100×100 mmWall 1.2–3 mmMade in our plant

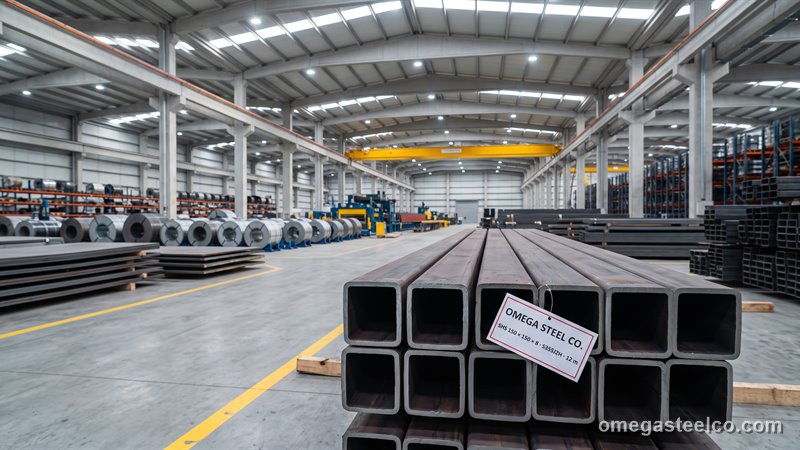

Thick-wall hollow sectionsWall 5–10 mmEN 10219 / EN 10210 optionMade in our plant

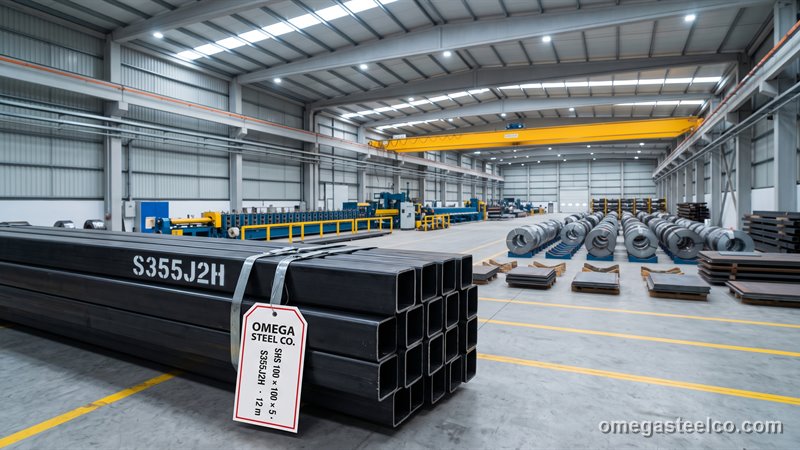

S355J2H hollow sections1.0576Yield ≥ 355 MPaMade in our plant

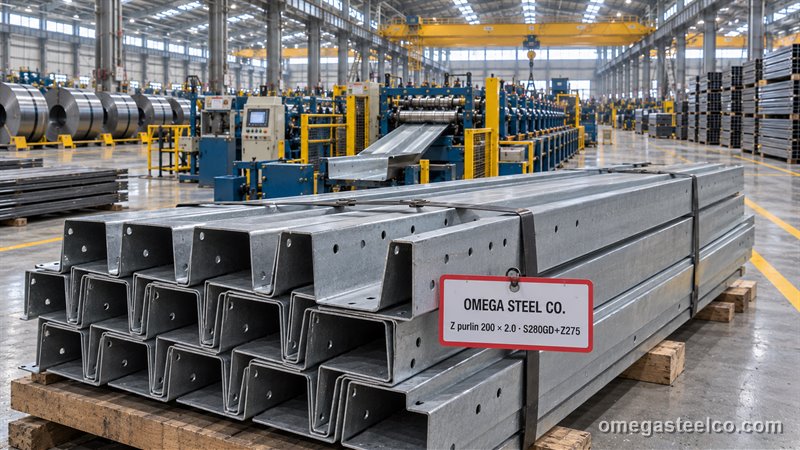

C and Z purlinsC · Z · U purlins 100 – 350 mm1.5 – 3.0 mm · S350GD+Z275Made in our plant

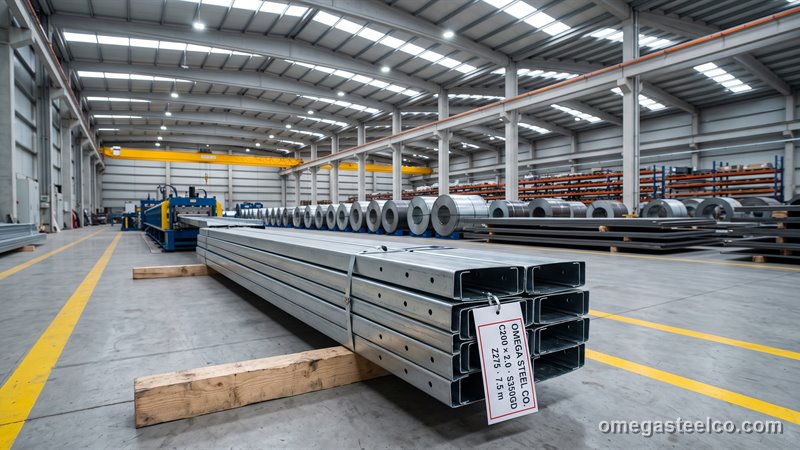

C purlinWeb 100–300 mm1.5–3.0 mmMade in our plant

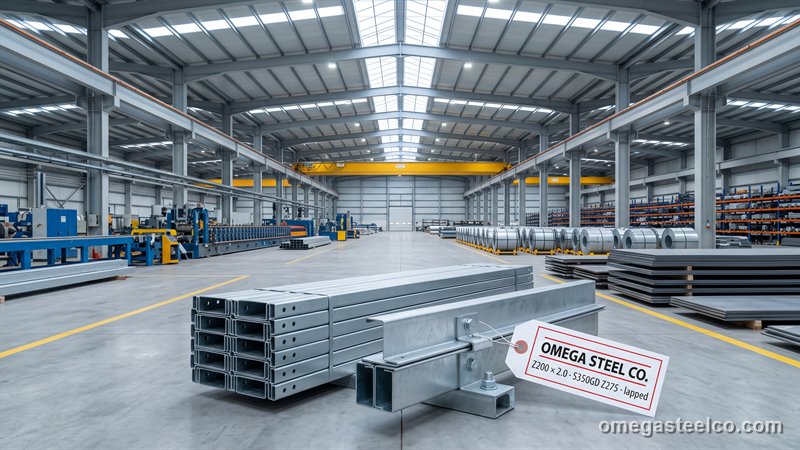

Z purlinWeb 120–350 mm1.5–3.0 mmMade in our plant

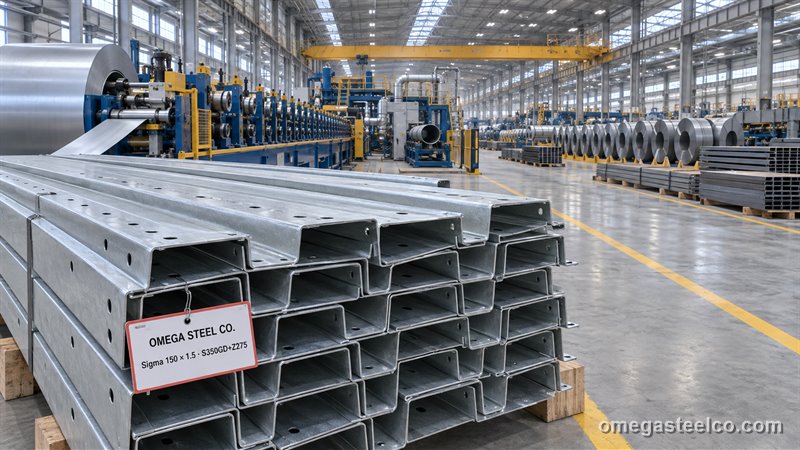

Omega, sigma and M light-gauge profilesOmega · sigma · hat · M · C/U0.5 – 3.0 mm galvanizedMade in our plant

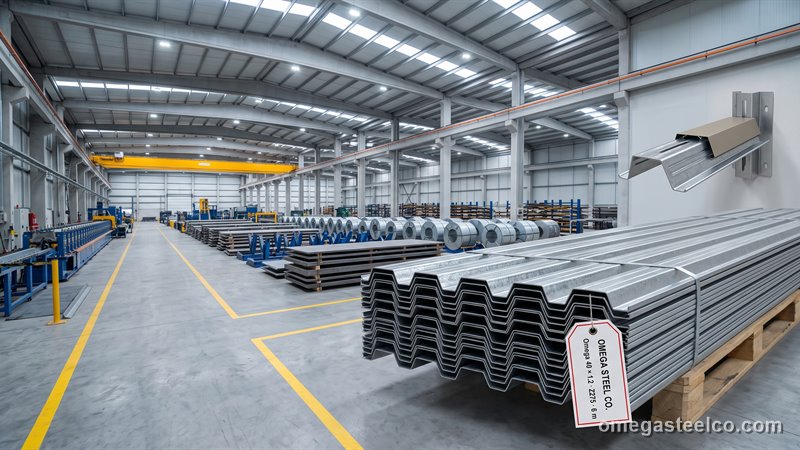

Omega profileCrown 20–100 mm0.5–2.5 mmMade in our plant

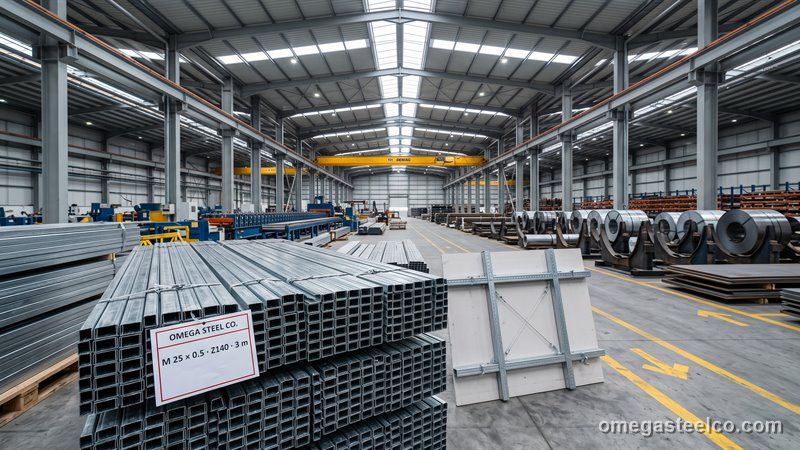

M profile15–40 mm highEN 14195 drywall sizesMade in our plant

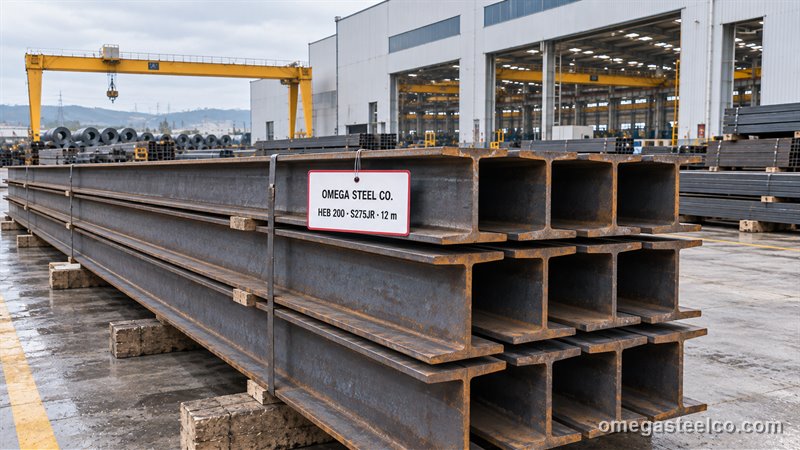

H beams HEA / HEBHEA · HEB · HEM 100–600EN 10365 · EN 10025-2From stock

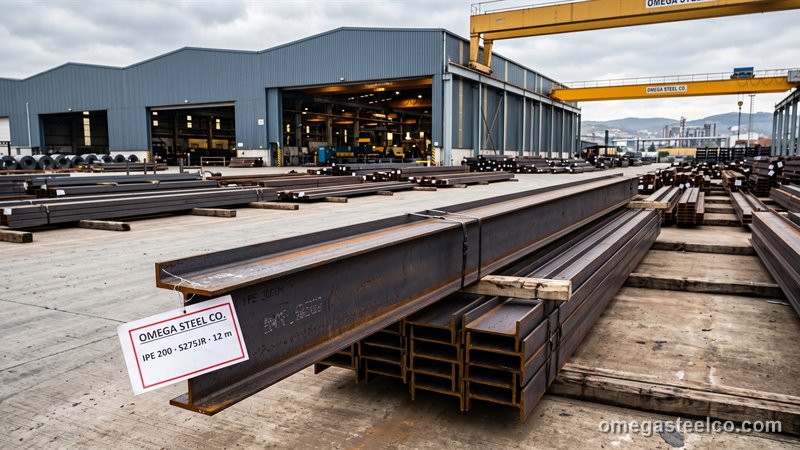

IPE beamsIPE 80–600EN 10365 / EN 10034From stock

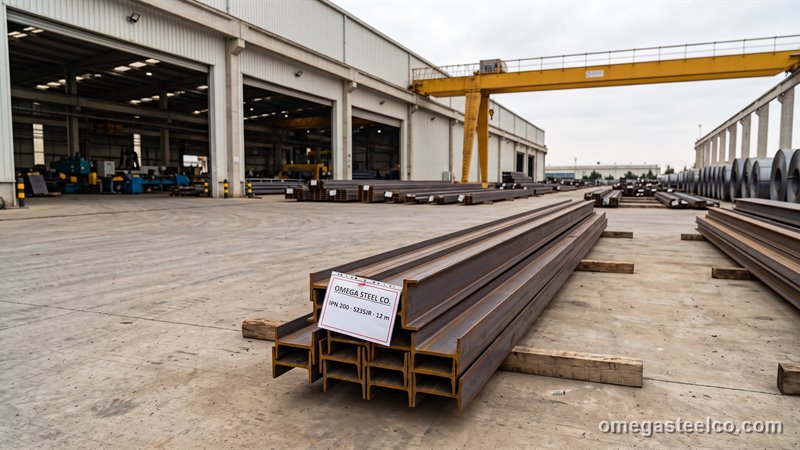

IPN beamsIPN 80–600DIN 1025 / EN 10365From stock

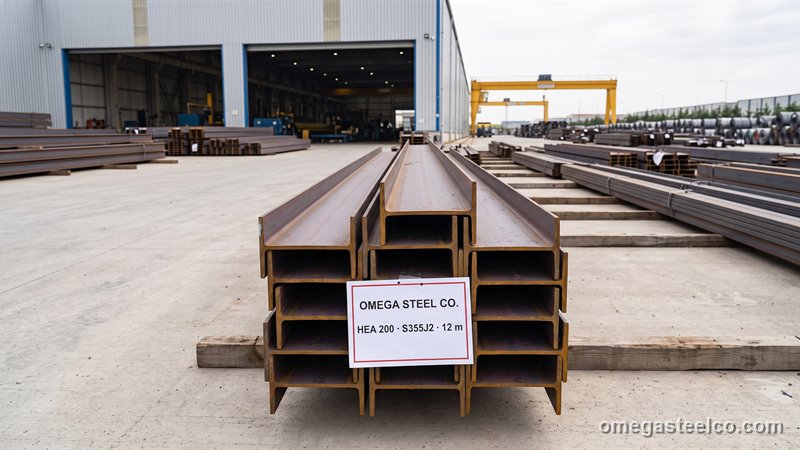

HEA beamsHEA 100–1000EN 10365 / 10034From stock

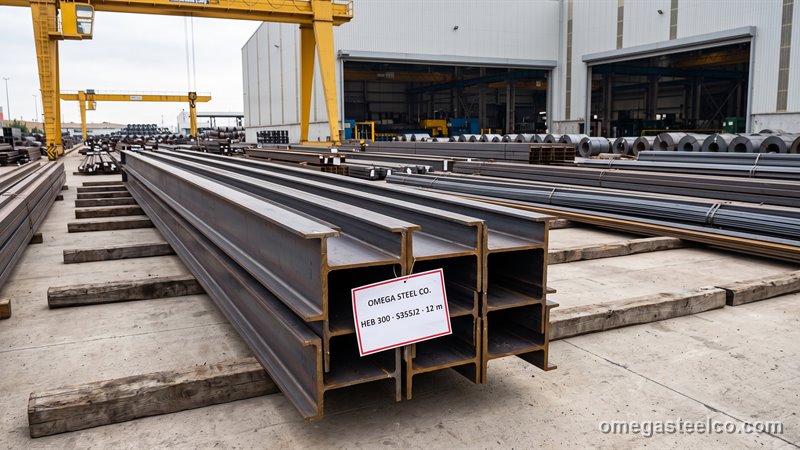

HEB beamsHEB 100–1000EN 10365 / 10034From stock
Channels UPN / UPE (C channel)UPN 50 – 400 · UPE 80 – 400EN 10365 · EN 10025-2From stock

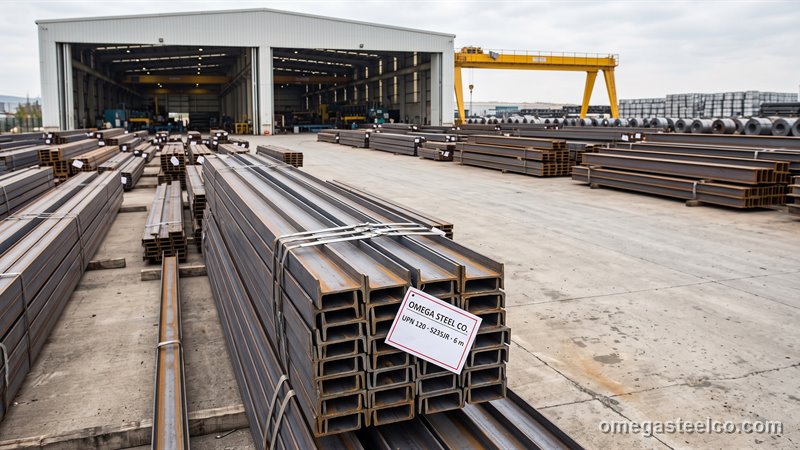

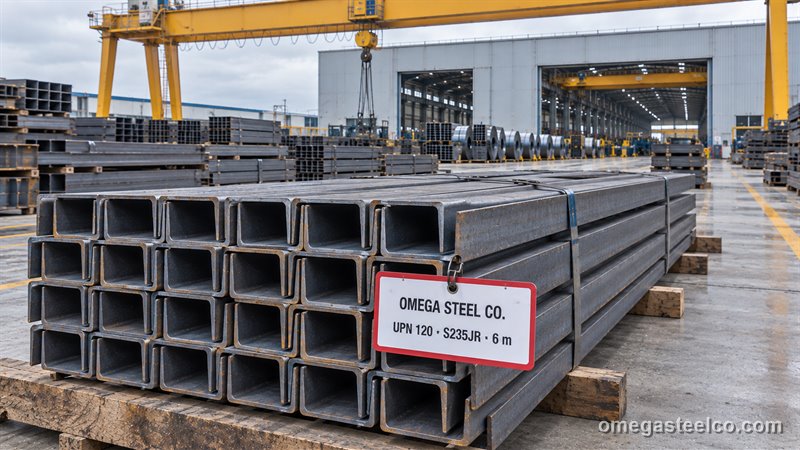

UPN channelsUPN 50–400DIN 1026 / EN 10365From stock

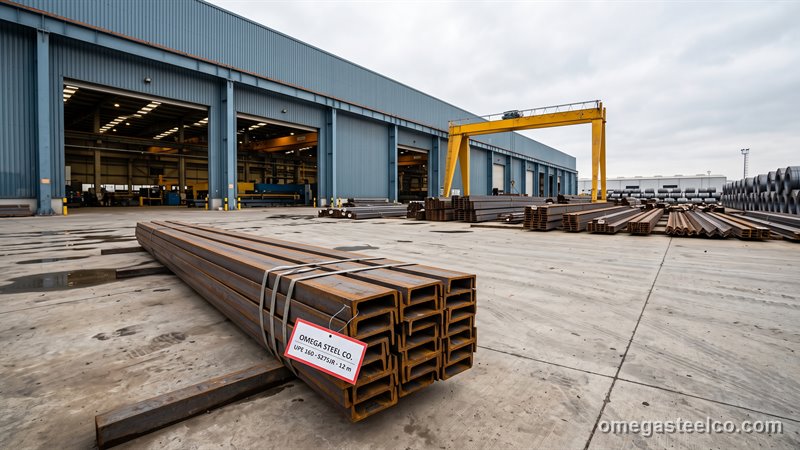

UPE channelsUPE 80–400DIN 1026-2 / EN 10365From stock

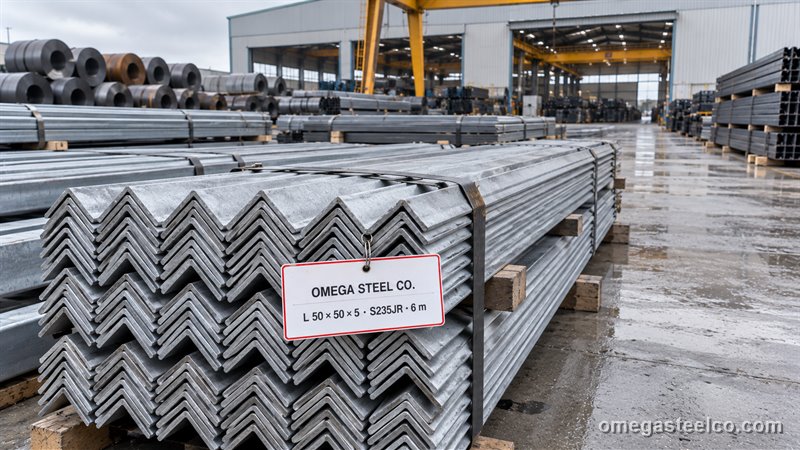

Angles, equal & unequalEqual 20×20 – 200×200Unequal 30×20 – 200×100From stock

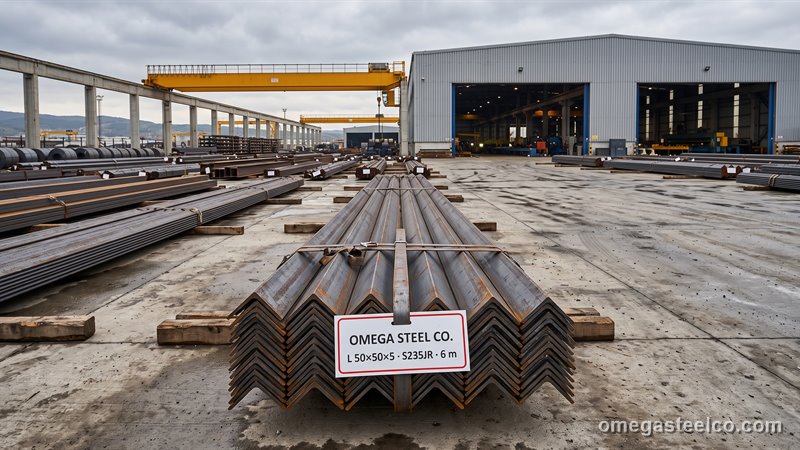

Equal anglesL 20×20 – 200×200EN 10056From stock
Unequal angles40×20 – 200×150EN 10056From stock

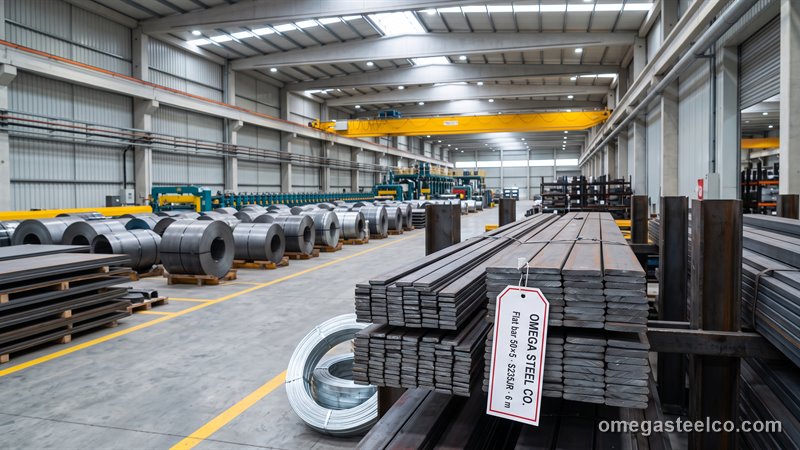

Flat bar20×3 – 200×20 mmEN 10058From stock

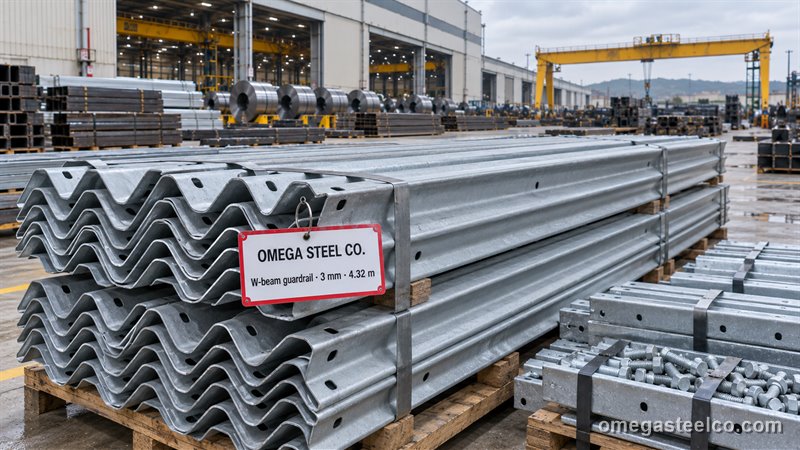

Highway guardrail W-beamW-beam · thrie-beamEN 1317 N2 · H1 · H2From stock
Crane railsA45 – A150 (DIN 536)A45 – A150 (DIN 536)From stock
Guardrail post (sigma / omega)Sigma 100×55×3 / 4 mmOmega · C 125×62.5 · U 100Made in our plant

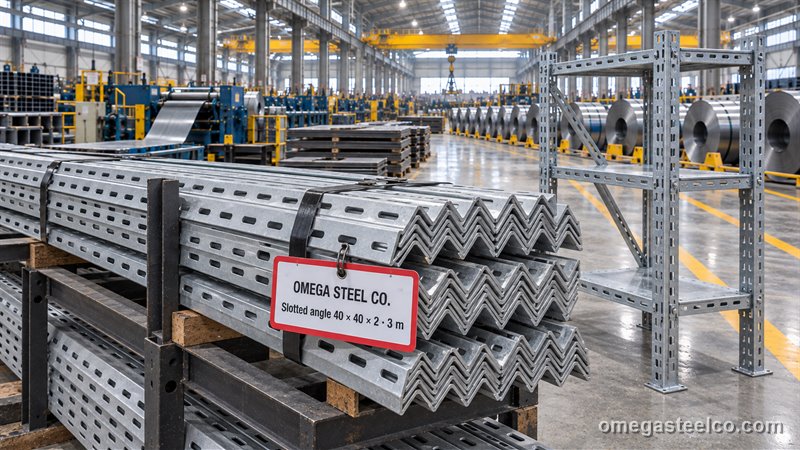

Slotted angle36×36 · 40×40 · 50×50 × 2.0 mmGalvanized · powder-coatedMade in our plant

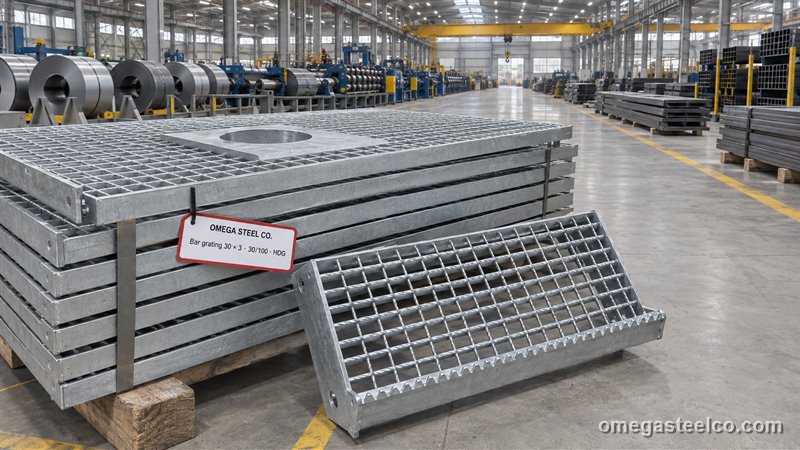

Steel grating (bar grating)Bearing bar 25×3 – 50×5 mmHDG EN ISO 1461 · 304 / 316Made in our plant

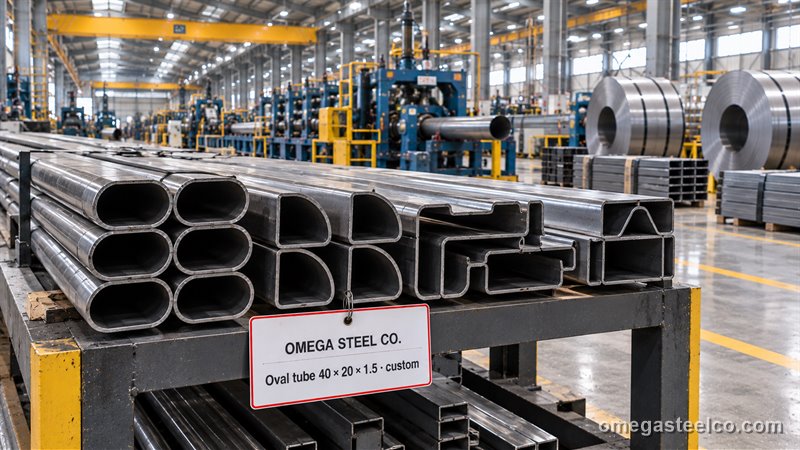

Oval & custom roll-formed profilesOval · flat-oval · D · half-roundCustom open profilesMade in our plant

Ranges are the stocked or rolled envelope, not a tolerance. The product page carries the full size table, weights and the governing standard in full.

Frequently asked questions

What is the difference between IPE and HEB?

Both are parallel-flange sections to EN 10365, but HEB is much heavier at the same nominal depth: HEA 200 is 42.3 kg/m, HEB 200 is 61.3 kg/m, IPE 200 is 22.4 kg/m. IPE is the efficient choice for simple bending; HEB where axial load or connection bearing matters.

When should I use a hollow section instead of a beam?

Where the member twists, where it is exposed and appearance counts, or where the footprint must be small. The trade-off is connection difficulty — you cannot reach inside a closed tube — and a higher price per tonne.

What lengths do sections come in?

12 m is standard from the mill, 6 m is common from stock. Lengths beyond 12 m need a flat rack rather than a container and are worth avoiding unless the design genuinely requires them.

Can sections be supplied galvanized?

Yes, hot-dip galvanized after cutting and drilling so that holes and cut ends are coated. Galvanizing after fabrication is always better than galvanizing before it, because every site-drilled hole in pre-coated steel is bare steel.

How is section weight calculated?

It is read from the standard, not calculated. Multiply the catalogue mass per metre by the length: IPE 200 at 22.4 kg/m gives 269 kg for a 12 m bar.
