What is an angle bar?

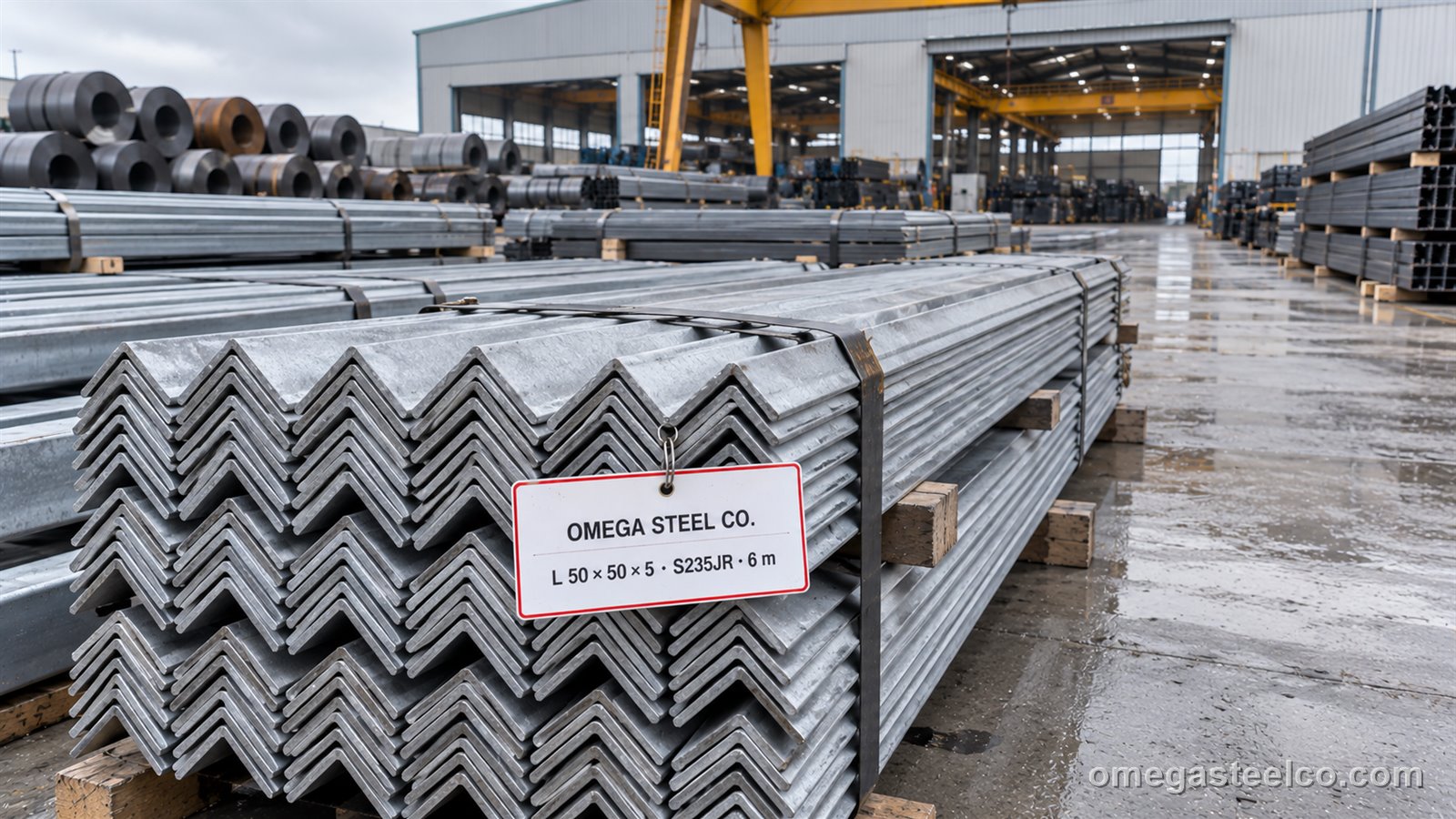

An angle is a hot-rolled L-shaped section with two legs at 90°, equal (both legs the same, e.g. 50×50×5) or unequal (e.g. 100×65×8). It is the simplest structural shape and the cheapest per ton after flat bar, and it does everything from lattice towers and roof trusses to shelf frames: bracing, purlin cleats, tank stiffening rings, lintel supports, door and window frames, gratings and platform edges, machine guards, racking, fence and guardrail posts, and the diagonals of transmission towers (S355J2, galvanized). MS angle, angle iron and L bar are trade names for the same product.
Equal or unequal — the two angle pages
Equal angle bar (20×20 to 200×200) for bracing, towers and cleats; unequal angle bar (40×20 to 200×150) for lintels, stringers and edge members. Both pages list every size with kg/m and 12 m bar weight.
Equal angle sizes and weight chart
| Size (mm) | Thickness (mm) | kg/m | kg per 6 m | Bars per ton (6 m) |
|---|---|---|---|---|
| 20 × 20 | 3 | 0.88 | 5.3 | 189 |
| 25 × 25 | 3 | 1.12 | 6.7 | 149 |
| 30 × 30 | 3 | 1.36 | 8.2 | 122 |
| 30 × 30 | 4 | 1.78 | 10.7 | 94 |
| 40 × 40 | 4 | 2.42 | 14.5 | 69 |
| 40 × 40 | 5 | 2.97 | 17.8 | 56 |
| 45 × 45 | 5 | 3.38 | 20.3 | 49 |
| 50 × 50 | 5 | 3.77 | 22.6 | 44 |
| 50 × 50 | 6 | 4.47 | 26.8 | 37 |
| 60 × 60 | 6 | 5.42 | 32.5 | 31 |
| 65 × 65 | 7 | 6.83 | 41.0 | 24 |
| 70 × 70 | 7 | 7.38 | 44.3 | 23 |
| 75 × 75 | 8 | 8.99 | 53.9 | 19 |
| 80 × 80 | 8 | 9.63 | 57.8 | 17 |
| 90 × 90 | 9 | 12.2 | 73.2 | 14 |
| 100 × 100 | 10 | 15.0 | 90.0 | 11 |
| 100 × 100 | 12 | 17.8 | 107 | 9 |
| 120 × 120 | 12 | 21.6 | 130 | 8 |
| 130 × 130 | 12 | 23.6 | 142 | 7 |
| 150 × 150 | 15 | 33.8 | 203 | 5 |
| 160 × 160 | 16 | 38.4 | 230 | 4 |
| 180 × 180 | 18 | 48.6 | 292 | 3 |
| 200 × 200 | 20 | 59.9 | 359 | 3 |
Unequal angle sizes and weight chart
| Size (mm) | Thickness | kg/m | kg per 6 m |
|---|---|---|---|
| 30 × 20 | 3 | 1.12 | 6.7 |
| 40 × 25 | 4 | 1.93 | 11.6 |
| 45 × 30 | 4 | 2.25 | 13.5 |
| 50 × 30 | 5 | 2.96 | 17.8 |
| 60 × 40 | 5 | 3.76 | 22.6 |
| 65 × 50 | 5 | 4.35 | 26.1 |
| 70 × 50 | 6 | 5.41 | 32.5 |
| 75 × 50 | 6 | 5.65 | 33.9 |
| 80 × 40 | 6 | 5.41 | 32.5 |
| 80 × 60 | 7 | 7.36 | 44.2 |
| 100 × 50 | 6 | 6.84 | 41.0 |
| 100 × 65 | 8 | 9.94 | 59.6 |
| 100 × 75 | 8 | 10.6 | 63.6 |
| 120 × 80 | 8 | 12.2 | 73.2 |
| 125 × 75 | 8 | 12.2 | 73.2 |
| 150 × 75 | 10 | 17.0 | 102 |
| 150 × 90 | 10 | 18.2 | 109 |
| 150 × 100 | 10 | 19.0 | 114 |
| 200 × 100 | 10 | 23.0 | 138 |
| 200 × 100 | 12 | 27.3 | 164 |
Grades and galvanizing
S235JR is the stock grade for fabrication, frames and racking; S275JR / S355J2 for trusses, towers and bracing designed to Eurocode; S355J2 hot-dip galvanized (EN ISO 1461, 70–85 µm) is the transmission-tower and telecom-mast standard — supplied punched to the tower drawing. Stainless 304/316 angles and aluminium on request.
Tolerances (EN 10056-2)
Leg length ±1.0 mm (≤ 50), ±1.5 (50–100), ±2 (100–150), ±3 (150–200); thickness ±0.5–1.0 mm; squareness 90° ±1° (±0.5° for towers on request); straightness 0.4% of length; length ±50/−0 mm on 6/12 m, ±5 mm cut.
Cutting, punching, drilling
Cut to length, mitred 45°, punched or drilled (tower and racking hole patterns on the angle line), notched, welded into frames and gratings, galvanized after fabrication. Tower and truss kits ship bundled by mark number with the bolt list.
Angle bar vs hollow section vs flat bar
| Angle 50×50×5 | SHS 50×50×2.5 | Flat 50×6 | |
|---|---|---|---|
| kg/m | 3.77 | 3.66 | 2.36 |
| Bending stiffness | Low–medium | High (both axes) | Very low |
| Connection | Bolt through leg, easy | Needs cleat or weld | Bolt / weld |
| Corrosion | Open, easy to paint | Closed (seal ends) | Open |
| Price per ton | 1.00 | 1.10–1.25 | 0.95–1.00 |
| Use | Frames, trusses, bracing, cleats | Columns, frames, canopies | Stiffeners, straps, ladders |
Angle bar price per ton
Indicative FOB Istanbul band from our weekly export list, equal angles 25–150 S235JR, 6 m, full-container quantities; small sizes (20–30 mm) and S355J2 sit above, galvanizing adds 25–35%.
Bands from our weekly export list (September 2026), FOB Istanbul, full-container quantities, excluding freight and certificates. Firm price per project on RFQ within one working day.
Export and packing
Bundles of 500–1 500 kg (angles nested), strapped; 6 m in 20' (20 t) and 40'; 12 m in 40' HC (24–25 t). HS code 7216.21 (L sections < 80 mm) / 7216.40 (≥ 80 mm).
| Term | Detail |
|---|---|
| MOQ | 1 × 20' (≈ 20 t) or 1 truck; sizes mixed |
| Incoterms | FOB Istanbul · CIF / CFR Gulf, Africa · DAP EU, Balkans, Iraq, Caucasus · DAP Aktau |
| Lead time | Stock 5–10 working days; galvanizing +5–7; punched tower angles 2–3 weeks |
| Packing | Nested bundles 500–1 500 kg, strapped; HDG with spacers |
| Container / truck | 20' ≈ 20 t (6 m) · 40' HC ≈ 24–25 t (12 m) · truck 22–24 t |
| Documents | Invoice, packing list, EN 10204 3.1, CE, certificate of origin; SASO / SONCAP / COC / EAC on request |
| Payment | 30% advance, balance against B/L copy; L/C at sight via London office |
Certificates
EN 10204 3.1 per heat, CE per EN 10025, certificate of origin; zinc thickness report for galvanized; SASO, SONCAP, COC, EAC on request.
How to order
Send size × thickness, grade, length, finish, tonnage and port (or the tower/truss drawing for punched angles); reply within one working day.
Standards
- EN 10056-1 / -2 (equal and unequal angles: dimensions, tolerances)
- EN 10025-2 (S235JR, S275JR, S355J2)
- ASTM A36 / A529 L-shapes (on request)
- JIS G3192
- EN ISO 1461 (hot-dip galvanizing)
Grades
Grade data sheets (chemistry, mechanicals, equivalents) are on our reference site: S235JR · S275JR · S355J2 · A36
Frequently asked questions
What is an angle bar?
An L-shaped hot-rolled steel section with two legs at 90°, equal (50×50×5) or unequal (100×65×8), 20–200 mm, used for frames, trusses, towers, bracing, racking and general fabrication. Also called MS angle, angle iron or L bar.
What is the standard size for angle bars?
6 m bars (12 m on request) in sizes from 20×20×3 to 200×200×20 mm equal and 30×20 to 200×100 unequal; 40×40×4, 50×50×5 and 100×100×10 are the most ordered.
How much does a 50×50×5 angle weigh?
3.77 kg/m — 22.6 kg per 6 m bar, about 44 bars per ton. 40×40×4 = 2.42 kg/m; 100×100×10 = 15.0 kg/m.
How much angle bar is 1×1?
A 25×25×3 mm (≈ 1" × 1" × ⅛") angle weighs 1.12 kg/m (6.7 kg per 6 m bar) — about 149 bars per ton; price per bar from the band above.
Which is stronger, tubular or angle bar?
For the same weight a square hollow section is stiffer in bending and torsion; an angle is easier to bolt and cheaper per ton. Use angles for trusses, bracing and cleats, tubes for columns and frames.
Do you supply galvanized angles?
Yes — hot-dip galvanized to EN ISO 1461 (70–85 µm) after cutting and punching, for towers, masts, fences and outdoor frames; adds 25–35% and 5–7 days.
Can you punch tower angles?
Yes — punched and drilled to the tower or truss drawing on the angle line, S355J2, galvanized, bundled by mark number with bolts.
What is the price of angle bar per ton?
See the indicative FOB Istanbul band above for S235JR equal angles 25–150; small sizes, S355J2 and galvanizing add to it. Firm price within one working day.
