Coated & cold-rolled
Hot-dip galvanized, pre-painted, aluzinc, zinc-magnesium, cold-rolled DC01–DC04, slit strip.
Cold rolled steel sheet & coil (DKP)DKP / CRCA cold rolled sheet, coil and slit strip DC01–DC06, 0.30–3.0 mm; gauge table, surface classes, price per ton.From stock

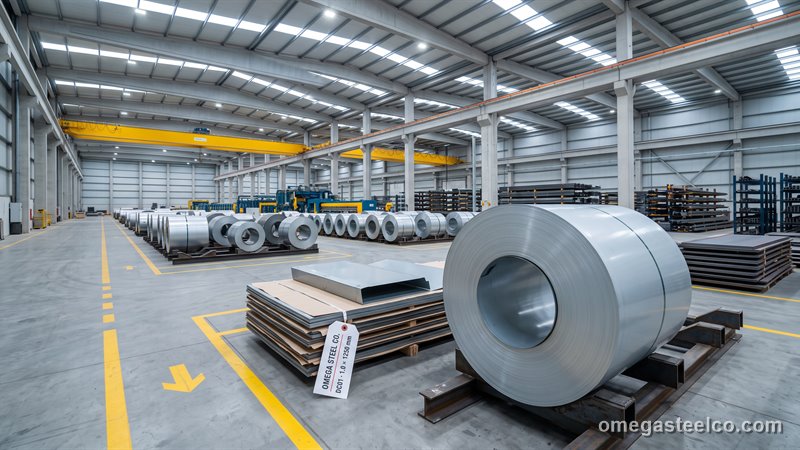

DC01 cold-rolled steelEN 10130 DC01 (1.0330) — the standard cold-rolled (DKP) sheet, 0.40–3.0 mm, from stock.From stock

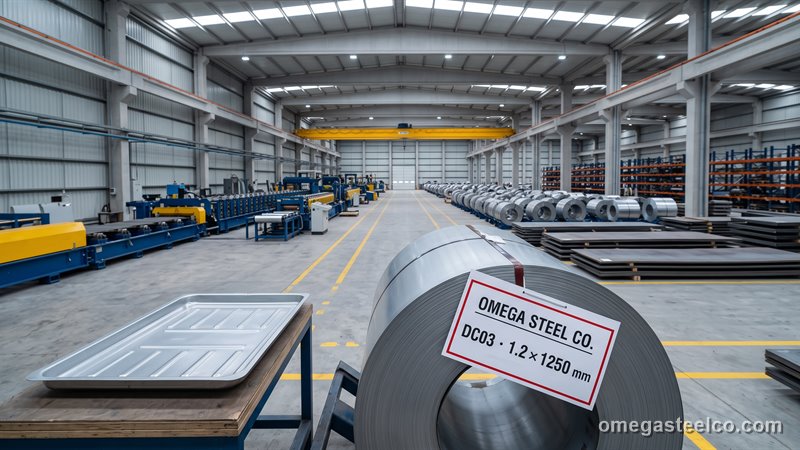

DC03 cold-rolled steelEN 10130 DC03 (1.0347) — drawing-quality cold-rolled sheet, yield ≤ 240 MPa, A80 ≥ 34 %, 0.50–3.0 mm to order.From stock

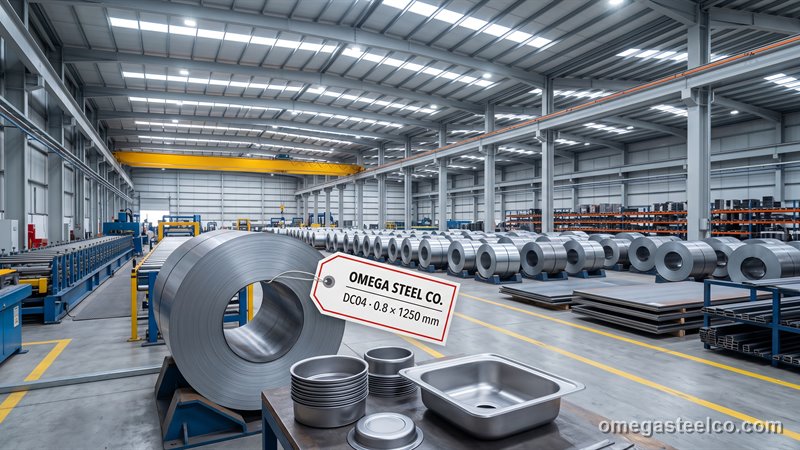

DC04 cold-rolled steelEN 10130 DC04 (1.0338) — deep-drawing cold-rolled sheet, yield ≤ 210 MPa, A80 ≥ 38 %, r90 ≥ 1.6; 0.50–3.0 mm stock.From stock

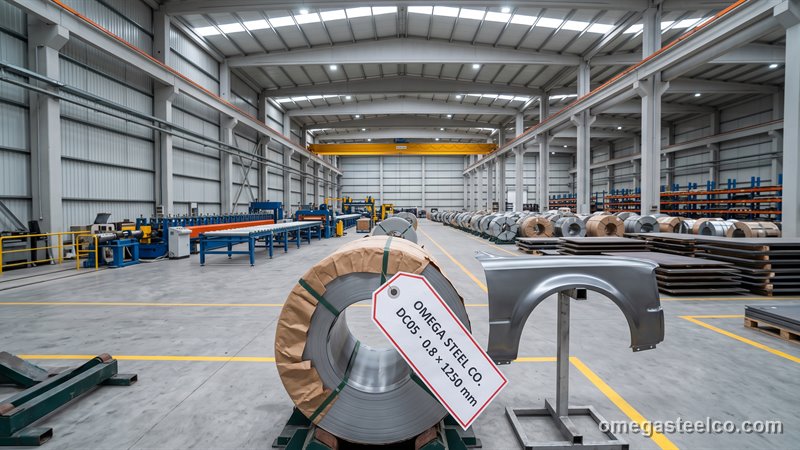

DC05 cold-rolled steelEN 10130 DC05 (1.0312) — extra-deep-drawing sheet, yield ≤ 180 MPa, A80 ≥ 40 %, r90 ≥ 1.9; 0.50–2.5 mm to order.From stock

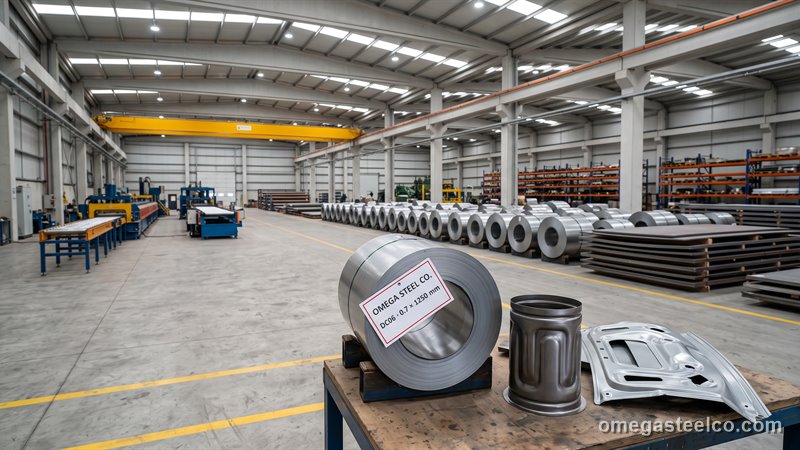

DC06 cold-rolled steelEN 10130 DC06 (1.0873) — interstitial-free super-deep-drawing sheet, r90 ≥ 2.1, no ageing; 0.50–2.0 mm to order.From stock

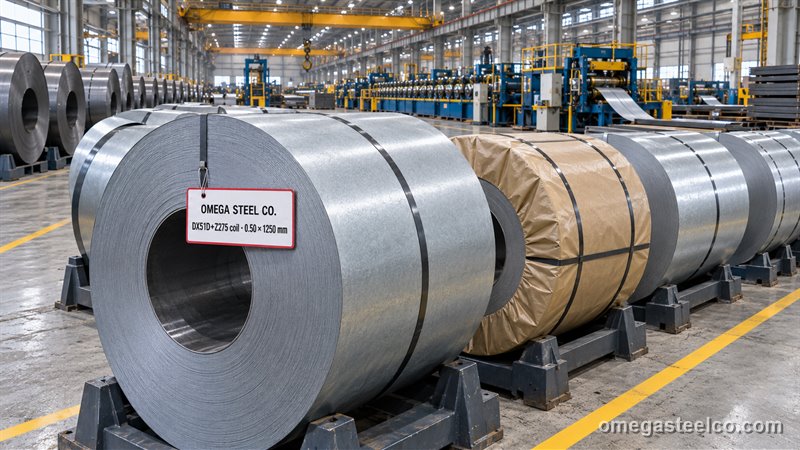

Hot-dip galvanized coil & sheet (GI)DX51D–DX54D, Z100–Z275, 0.30–4.00 mm; coil, cut sheet, slit strip.From stock

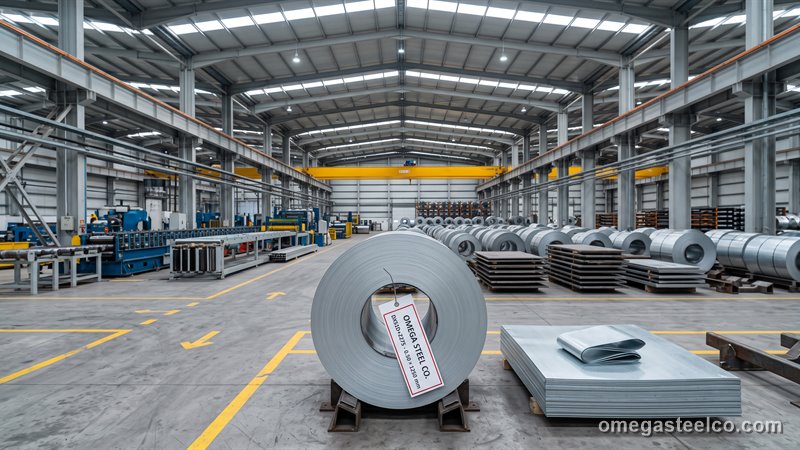

DX51D galvanized steelEN 10346 DX51D+Z — the standard hot-dip galvanized bending grade, 0.30–4.0 mm, Z100–Z275, from stock.From stock

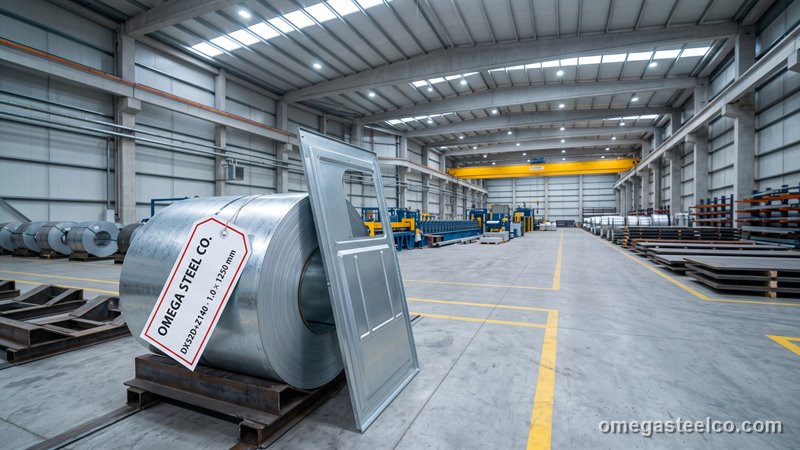

DX52D galvanized steelEN 10346 DX52D+Z — drawing grade with guaranteed yield 140–300 MPa, 0.40–3.0 mm to order.From stock

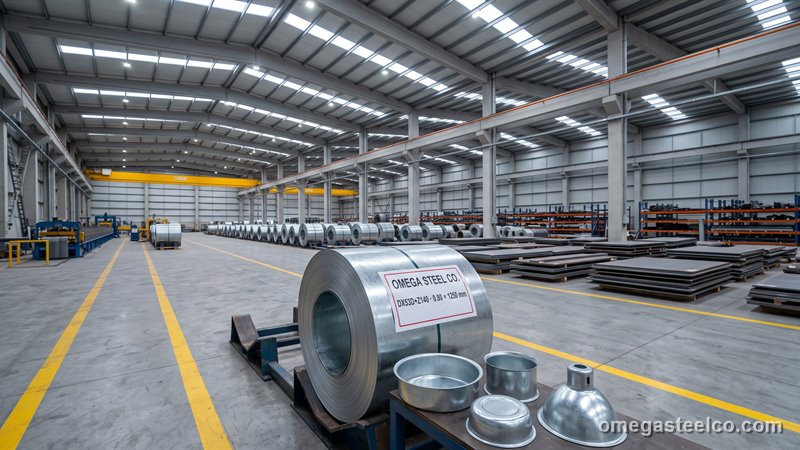

DX53D galvanized steelEN 10346 DX53D+Z — deep-drawing grade, yield 140–260 MPa, A80 ≥ 30 %, 0.40–2.0 mm to order.From stock

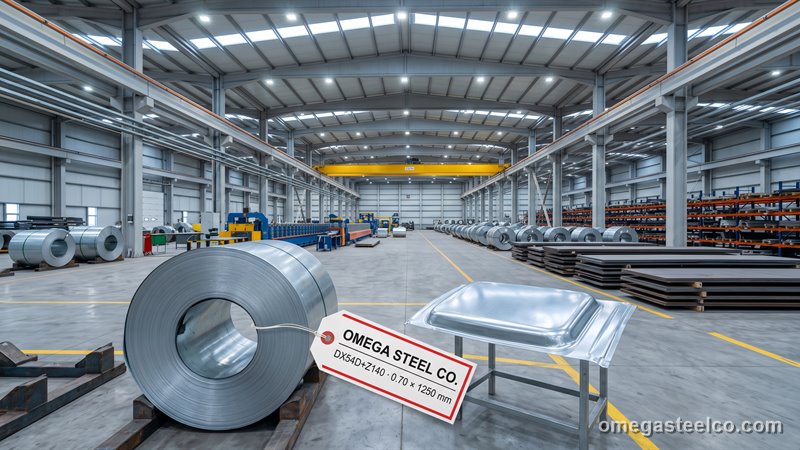

DX54D galvanized steelEN 10346 DX54D+Z — extra-deep-drawing grade, yield 120–220 MPa, A80 ≥ 36 %, r90 ≥ 1.6; 0.50–2.0 mm to order.From stock

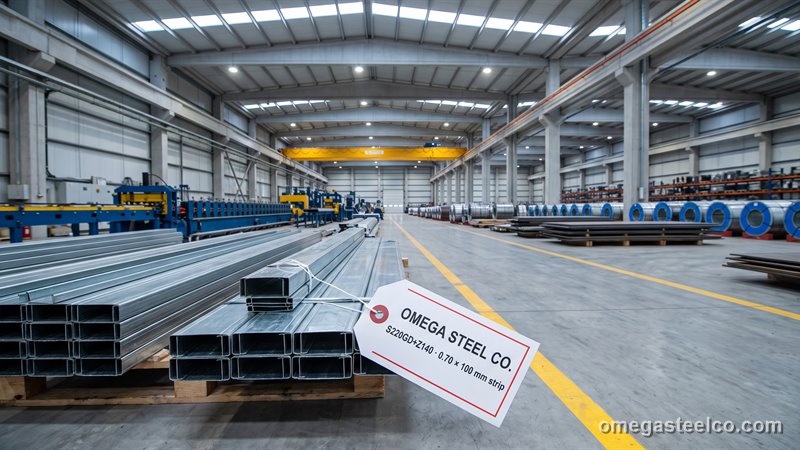

S220GD galvanized steelEN 10346 S220GD+Z — structural galvanized grade, yield ≥ 220 MPa, for light profiles; 0.40–3.0 mm to order.From stock

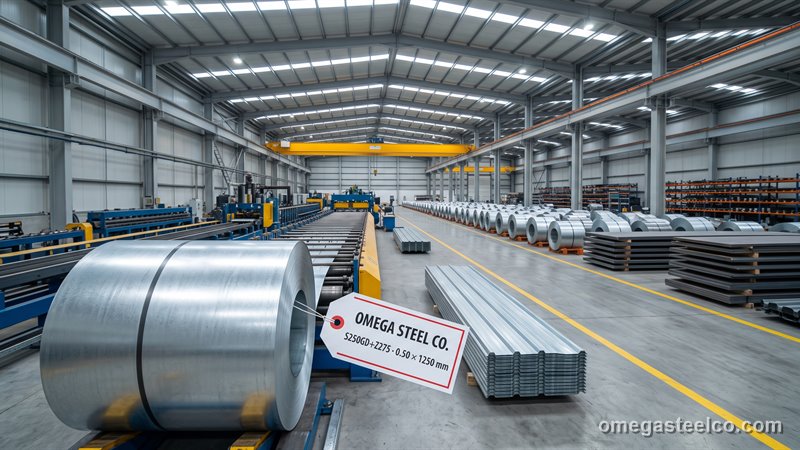

S250GD galvanized steelEN 10346 S250GD+Z — structural galvanized strip, yield ≥ 250 MPa, roofing and light profiles; 0.40–3.0 mm stock.From stock

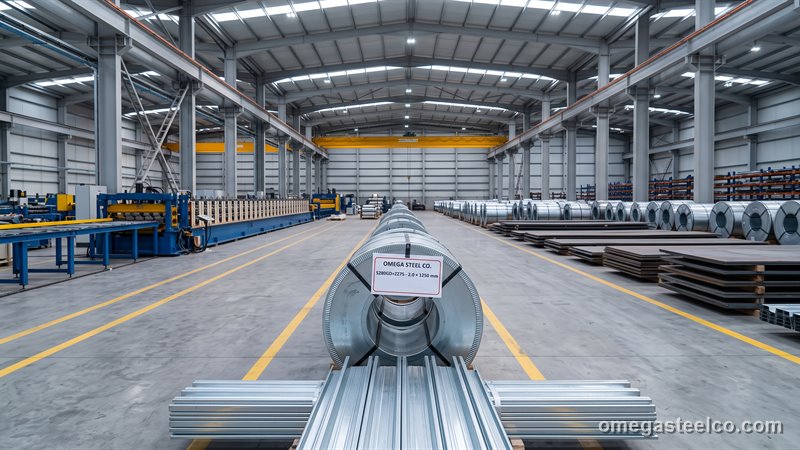

S280GD galvanized steelEN 10346 S280GD+Z — the purlin grade, yield ≥ 280 MPa, 1.5–3.0 mm stock, Z275.From stock

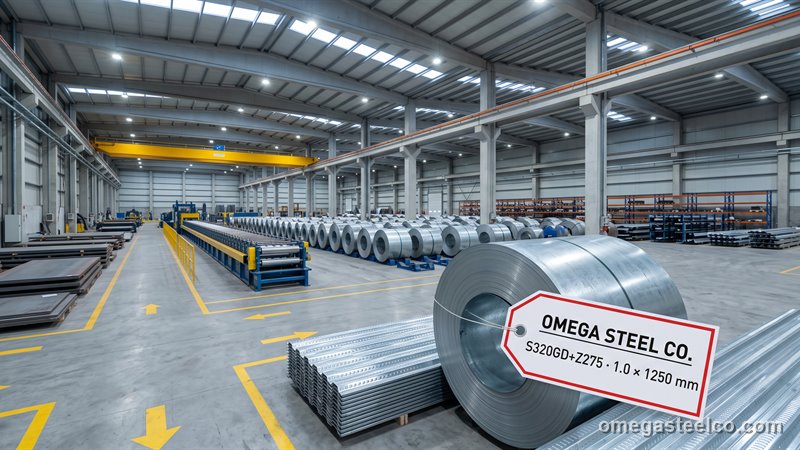

S320GD galvanized steelEN 10346 S320GD+Z — structural galvanized strip, yield ≥ 320 MPa, decking and profiles; 0.60–3.0 mm to order.From stock

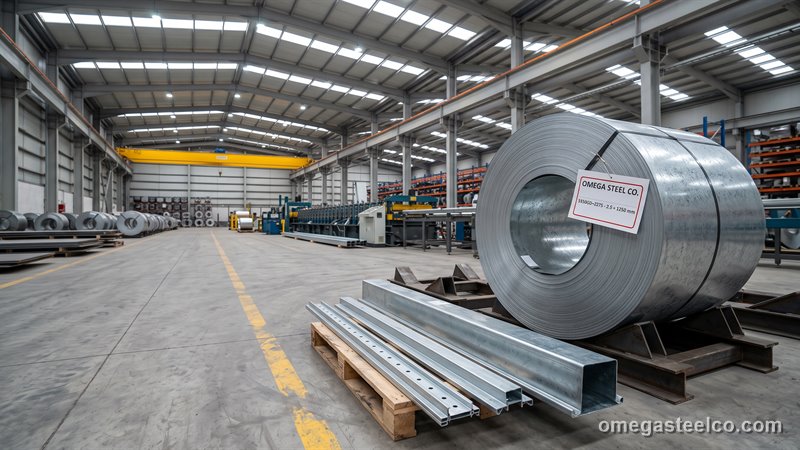

S350GD galvanized steelEN 10346 S350GD+Z — high-strength structural galvanized strip, yield ≥ 350 MPa, decking, long-span purlins, solar; 0.60–3.0 mm stock.From stock

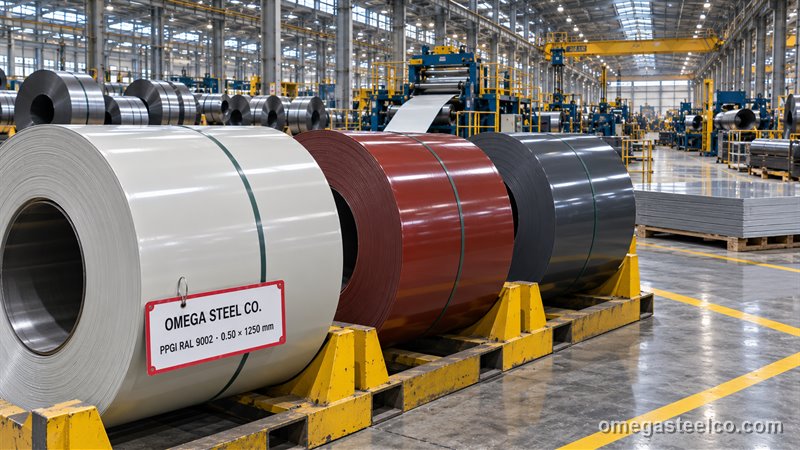

Pre-painted galvanized (PPGI)RAL colours, PE / PVDF, 0.30–1.20 mm.From stock

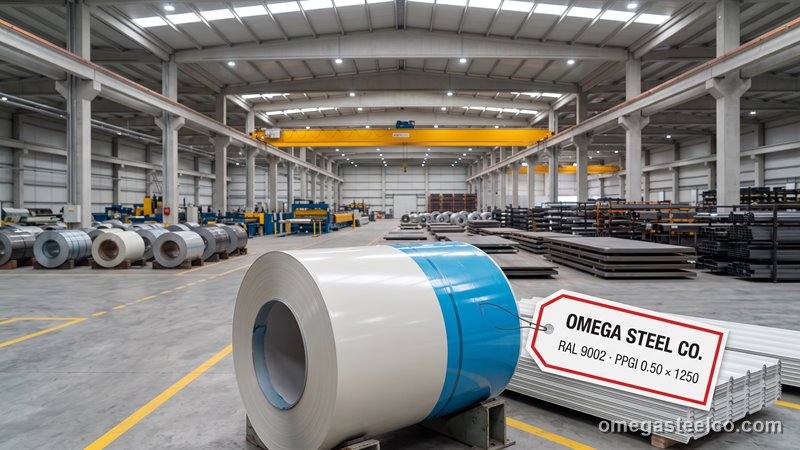

RAL 9002 PPGI sheetThe industrial standard off-white pre-painted coil and sheet, 0.35–1.2 mm — roofing, cladding, sandwich panels.From stock

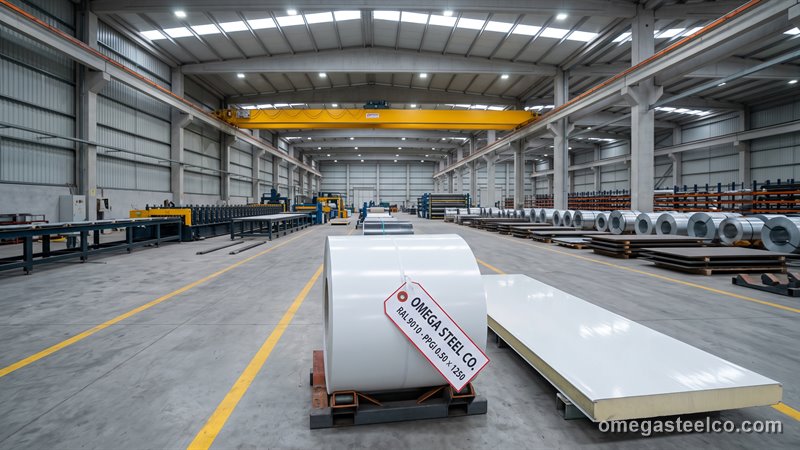

RAL 9010 PPGI sheetBright pure-white pre-painted coil and sheet for retail, food, clean and cold-store buildings, 0.35–1.2 mm.From stock
RAL 9016 PPGI sheetThe brightest stock white — cold-room panels, food plants, clean rooms and doors, 0.40–0.70 mm.From stock

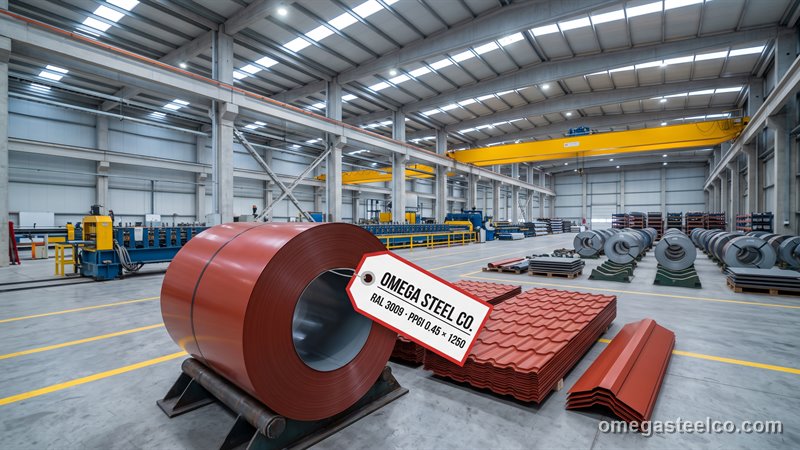

RAL 3009 PPGI sheetThe classic brick/tile red pre-painted coil and sheet for roofing, tile-profile sheet and rural buildings, 0.35–0.70 mm.From stock
RAL 8017 PPGI sheetThe tile-roof brown — most-ordered colour for pantile-profile and trapezoidal roofing, 0.35–0.70 mm from stock.From stock

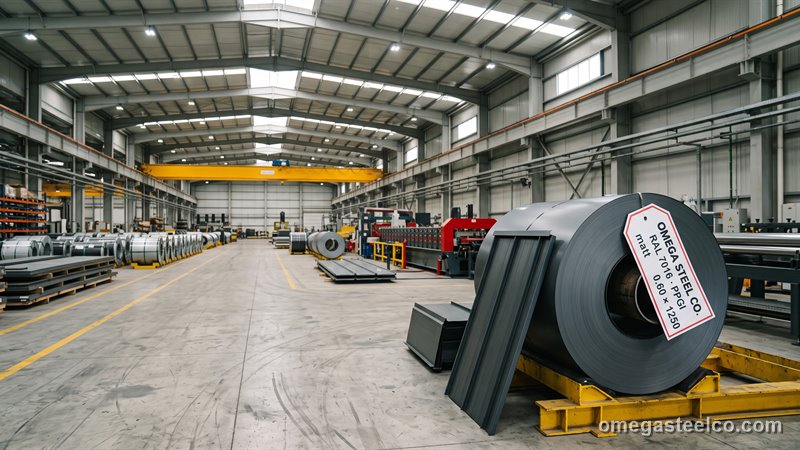

RAL 7016 PPGI sheetThe modern dark grey pre-painted coil and sheet for façades, roofs, fences and architectural cladding, 0.40–1.2 mm.From stock
RAL 9005 PPGI sheetArchitectural black for standing-seam roofs, façade cassettes, fences and doors — matt and gloss, 0.40–0.70 mm.From stock

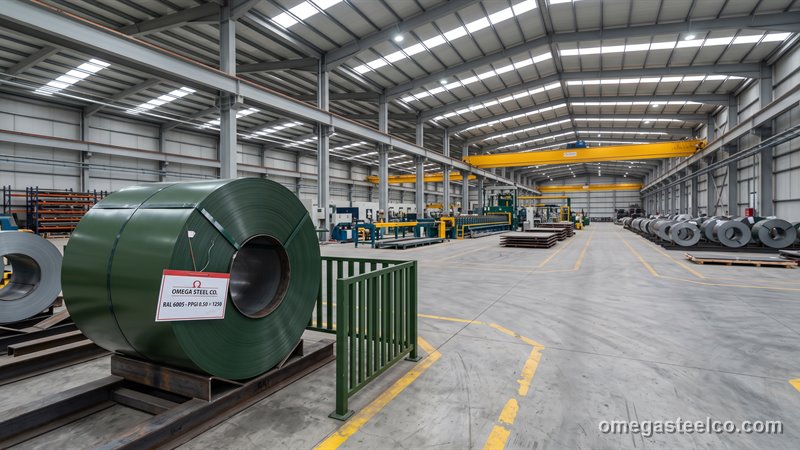

RAL 6005 PPGI sheetDark green pre-painted coil and sheet for agricultural, forest-edge and landscape-sensitive roofs and fences, 0.40–0.70 mm.From stock
RAL 6009 PPGI sheetThe dark forest green of fences, gates, pergolas and roofs that must disappear into trees — stock 0.40–0.50 mm.From stock
RAL 5010 PPGI sheetThe industrial blue of warehouse roofs, sandwich panels and shelving — stock 0.40–0.60 mm.From stock

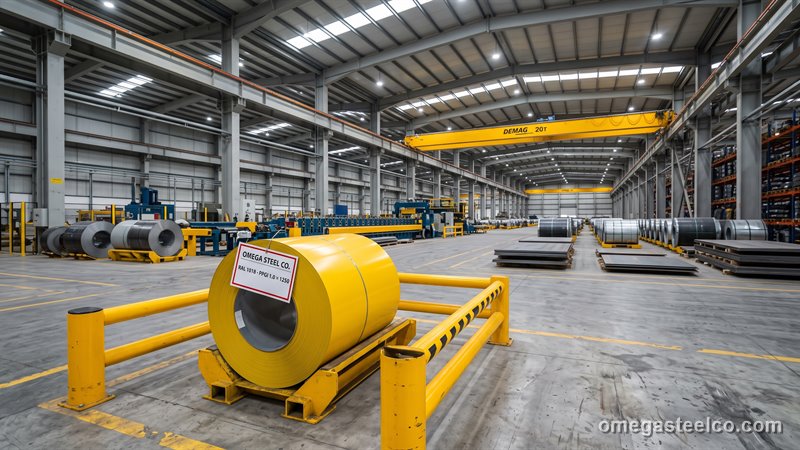

RAL 1018 PPGI sheetBright safety yellow pre-painted coil and sheet for guardrails, machine guards, signage and branded buildings, 0.50–1.2 mm.From stock
RAL 1023 PPGI sheetSafety yellow for guardrails, column protectors, machine guards and signage — 0.50–1.2 mm, PVDF for outdoor life.From stockThree coating families, three different jobs
Hot-dip galvanized (Z) is zinc on both faces, applied continuously to the coil. It is the workhorse: roofing, framing, ducting, purlins, anything that needs corrosion resistance and will be painted later or not at all.
Pre-painted (PPGI) is galvanized coil with a primer and topcoat baked on. It arrives finished in a RAL colour and needs no site painting, which is why it dominates visible roofing and cladding.
Cold-rolled (DKP) carries no coating at all. It is in this family because it comes off the same continuous lines and feeds the same customers: pressed parts, panels and anything that will be painted or plated after forming.
Coating class is a service-life decision
The number after Z is grams of zinc per square metre counting both faces. Z100 is an indoor or paint-first class; Z140 is the common stock class; Z200 and Z275 are the roofing and export classes; Z350 and above go to agricultural, humid and coastal work.
Life scales with the class in a given atmosphere: in a C3 urban environment Z275 gives roughly 12–18 years to first rust and Z140 about half that. The class is inside the invoiced weight, so a heavier class is heavier steel as well as dearer steel.
Forming grade or structural grade
Two grade families run through this catalogue and they are not interchangeable. DX51D to DX54D are forming grades, sorted by how severely they can be bent, drawn or pressed — DX51D bends, DX54D deep-draws. S220GD to S350GD are structural grades with a guaranteed yield strength, used where the profile carries load: purlins, decking, framing, rails.
Asking for "galvanized sheet" without naming one of these is the most common cause of a wrong delivery. If the part is pressed, name a DX grade; if it carries load, name an S grade and the yield you need.
Everything in coated & cold-rolled at a glance
| Product | Range | Standard | Availability |
|---|---|---|---|
| Cold rolled steel sheet & coil (DKP / CRCA) | EN 10130 DC01–DC06 | EN 10130 DC01–DC06 | From stock |
| DC01 cold-rolled steel | 1.0330 | Yield ≤ 280 MPa | From stock |
| DC03 cold-rolled steel | 1.0347 | Yield ≤ 240 MPa | From stock |
| DC04 cold-rolled steel | 1.0338 | Yield ≤ 210 MPa | From stock |
| DC05 cold-rolled steel | 1.0312 | Yield ≤ 180 MPa | From stock |
| DC06 cold-rolled steel | 1.0873 | IF steel, C ≤ 0.02 % | From stock |
| Hot-dip galvanized coil & sheet (GI) | EN 10346 · ASTM A653 | EN 10346 · ASTM A653 | From stock |
| DX51D galvanized steel | 1.0226 | Z100–Z275 (Z350 on order) | From stock |
| DX52D galvanized steel | 1.0350 | Yield 140–300 MPa | From stock |
| DX53D galvanized steel | 1.0355 | Yield 140–260 MPa | From stock |
| DX54D galvanized steel | 1.0306 | Yield 120–220 MPa | From stock |
| S220GD galvanized steel | 1.0241 | Yield ≥ 220 MPa | From stock |
| S250GD galvanized steel | 1.0242 | Yield ≥ 250 MPa | From stock |
| S280GD galvanized steel | 1.0244 | Yield ≥ 280 MPa | From stock |
| S320GD galvanized steel | 1.0250 | Yield ≥ 320 MPa | From stock |
| S350GD galvanized steel | 1.0529 | Yield ≥ 350 MPa | From stock |
| Pre-painted galvanized (PPGI) | PE · SMP · PVDF · plastisol | EN 10169 · A755 | From stock |
| RAL 9002 PPGI sheet | RAL 9002 · grey white | LRV ≈ 78 % | From stock |
| RAL 9010 PPGI sheet | RAL 9010 · pure white | LRV ≈ 85 % | From stock |
| RAL 9016 PPGI sheet | RAL 9016 · traffic white | LRV ≈ 85 % | From stock |
| RAL 3009 PPGI sheet | RAL 3009 · oxide red | LRV ≈ 12 % | From stock |
| RAL 8017 PPGI sheet | RAL 8017 · chocolate brown | LRV ≈ 7 % | From stock |
| RAL 7016 PPGI sheet | RAL 7016 · anthracite grey | LRV ≈ 6 % | From stock |
| RAL 9005 PPGI sheet | RAL 9005 · jet black | LRV ≈ 4 % | From stock |
| RAL 6005 PPGI sheet | RAL 6005 · moss green | LRV ≈ 8 % | From stock |
| RAL 6009 PPGI sheet | RAL 6009 · fir green | LRV ≈ 5 % | From stock |
| RAL 5010 PPGI sheet | RAL 5010 · gentian blue | LRV ≈ 8 % | From stock |
| RAL 1018 PPGI sheet | RAL 1018 · zinc yellow | LRV ≈ 55 % | From stock |
| RAL 1023 PPGI sheet | RAL 1023 · traffic yellow | LRV ≈ 50 % | From stock |
Ranges are the stocked or rolled envelope, not a tolerance. The product page carries the full size table, weights and the governing standard in full.
Frequently asked questions
What does Z275 mean?
275 grams of zinc per square metre counting both faces, about 20 µm per side. It is the standard export class for roofing and outdoor use, and gives roughly 12–18 years to first base-steel rust in a C3 urban atmosphere.
What is the difference between DX51D and S280GD?
DX51D is a forming grade with no guaranteed yield strength — it is specified by how well it bends. S280GD is a structural grade guaranteed to 280 MPa yield and used where the formed profile carries load. They are not substitutes for one another.
Is the zinc included in the weight I pay for?
Yes. The coil is weighed after coating, so the zinc is in the invoiced mass. Z275 adds about 3.9 kg per square metre of sheet across both faces, which is around 7 % of the shipped weight on a 0.50 mm sheet.
What is PPGI?
Pre-painted galvanized iron: galvanized coil with a primer and a baked topcoat, supplied in RAL colours. It removes site painting entirely and is the standard product for visible roofing, cladding and sandwich panel skins.
Can galvanized sheet be painted?
Yes, but the surface must be specified for it. Order surface quality B with chemical passivation, and tell us if the part will be powder-coated — passivation is not a paint primer and an oiled surface has to be degreased first.
