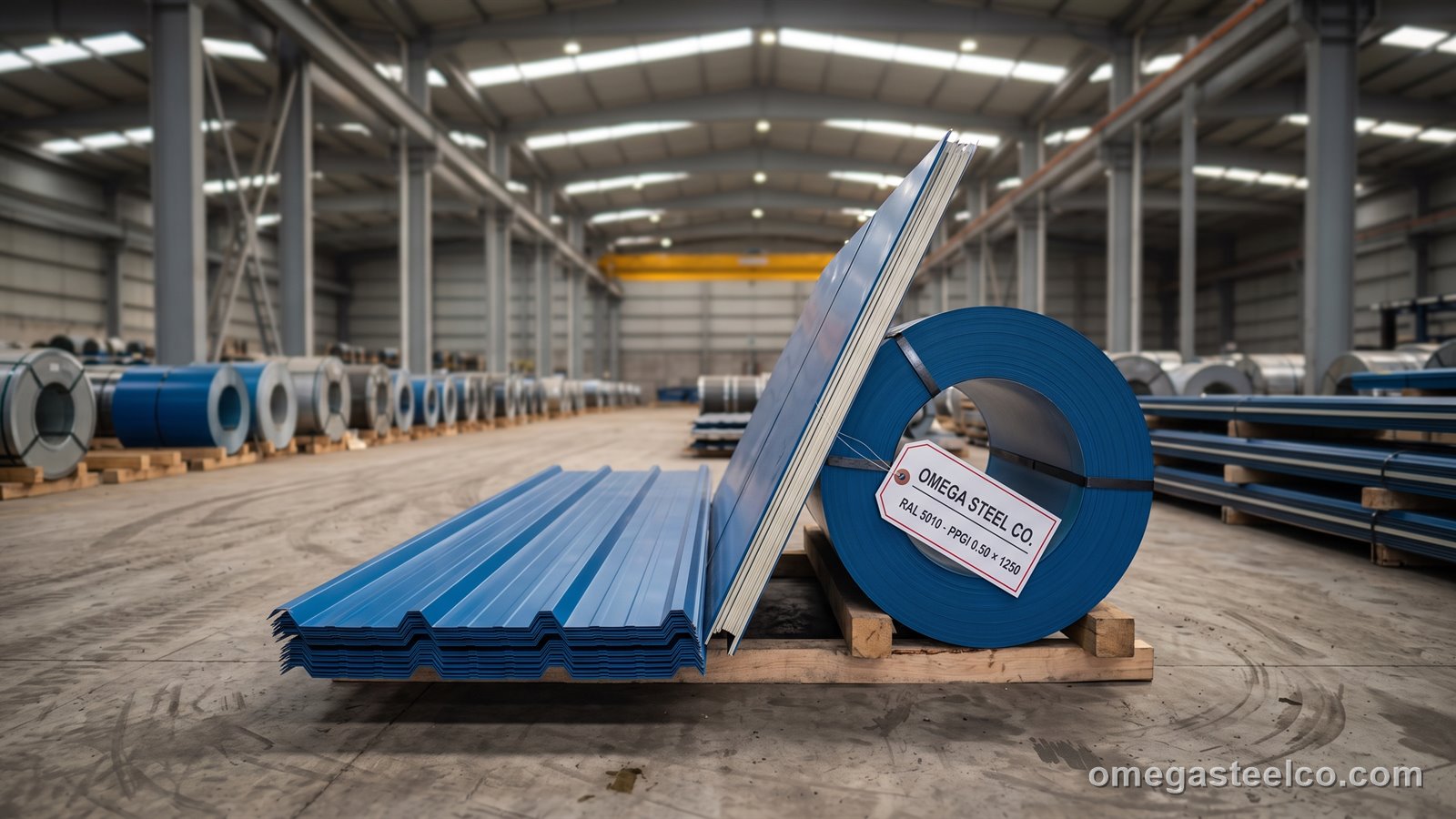

What is RAL 5010 PPGI sheet?
RAL 5010, Enzianblau, is a saturated mid-dark blue with a light-reflectance value around 8 % — dark enough to hide dirt and rib shadows on a trapezoidal roof, bright enough to read as a corporate colour from the motorway. Coil coaters make it on copper-phthalocyanine blue pigment, one of the most durable organic pigments: unlike organic reds and yellows, phthalocyanine blues keep their hue for 10–15 years even in plain polyester, so 5010 is one of the few chroma colours safely specified in PE for a roof. Being a dark colour it runs hot — about 70 °C surface in summer — and chalks slightly in PE after 8–10 years of Gulf sun, which SMP or PVDF avoids. On the market it is the blue of warehouses, logistics and distribution centres, cold-chain plants and food factories (blue walls with white or grey roofs), of sandwich-panel façades, of slotted-angle shelving and racking, of steel doors and cabinets, and of many national and company liveries. We stock 5010 in 0.40–0.60 mm PE on 1 250 mm coil, roll it into trapezoidal 27/150 and 38/151, corrugated and sandwich-panel skins, slit it to width for shelving and door makers, and fold flashings from the same batch; SMP and PVDF are ordered per project.
Colour data
| RAL code | Name | Approx. hex | Light reflectance (LRV) | Gloss (60°) | Colour tolerance |
|---|---|---|---|---|---|
| RAL 5010 | Gentian blue / Enzianblau | #0E294B | ≈ 8 % | 30–40 (semi-gloss); 10–20 matt on request | ΔE ≤ 1.0 to RAL 841-GL, batch-matched |
Paint system and pigment choice
| System | Pigment | Indoor life | Outdoor life (C3) | Note |
|---|---|---|---|---|
| PE polyester 25 µm | phthalocyanine blue | 15+ yr | 10–15 yr | stock; the exception among chroma colours — stable in PE |
| SMP / HDP 25 µm | phthalocyanine blue | 20+ yr | 15–20 yr | Gulf and high-UV roofs, 15-yr warranty |
| PVDF 25–35 µm | phthalocyanine blue | 25+ yr | 25–30 yr | façades and colour warranty |
| PE with cheap ultramarine / organic blue | ultramarine or azo | 10 yr | 3–6 yr | avoid — fades to grey-violet; ask for the pigment on the certificate |
Phthalocyanine 5010 in PE holds ΔE ≤ 3 after 10 years; chalking (not fading) is the ageing mode. Insist on phthalocyanine pigment in the coating certificate for any outdoor 5010.
Roofing and panel products in RAL 5010
| Item | Gauge | Note |
|---|---|---|
| Trapezoidal 27/150 and 38/151 wall and roof sheet | 0.40–0.50 mm | blue walls, grey-white roof is the common pairing |
| Corrugated 18/76 | 0.40–0.50 mm | sheds, fences |
| Sandwich-panel outer skins | 0.50–0.60 mm | PIR / rockwool wall panels, micro-ribbed |
| Flashings, copings, corner trims | 0.50 mm | same batch |
| Slotted angle and shelving strip | 0.50–0.70 mm | slit to width |
| Screws with painted heads | — | 5010 heads |
Blue walls with a 9002 roof is the standard warehouse scheme; order walls, trims and screws together for one batch.
Thickness range and stock sizes
| Thickness | Widths × lengths | Availability |
|---|---|---|
| 0.40–0.50 mm | 1 250 mm coil; sheet to 8 000 mm | stock — sheet and panel skins |
| 0.60 mm | 1 250 mm coil | stock — panel skins, doors |
| 0.35 mm / 0.70 mm | 1 000 / 1 250 mm coil | to order |
| SMP / PVDF | 0.45–0.60 mm | to order, 10 t per system |
Weight per m² and per sheet
| Thickness | kg/m² | 1 000 × 2 000 (kg) | 1 250 × 2 500 (kg) | 1 500 × 3 000 (kg) |
|---|---|---|---|---|
| 0.35 mm | 2.85 | 5.7 | 8.9 | 12.8 |
| 0.4 mm | 3.24 | 6.5 | 10.1 | 14.6 |
| 0.45 mm | 3.63 | 7.3 | 11.4 | 16.3 |
| 0.5 mm | 4.03 | 8.1 | 12.6 | 18.1 |
| 0.6 mm | 4.81 | 9.6 | 15.0 | 21.6 |
| 0.7 mm | 5.60 | 11.2 | 17.5 | 25.2 |
Table weights are steel at 7.85 kg/dm³ with Z100 zinc and the blue 25/7 µm coating (≈ 0.10 kg/m²), thickness given as TCT.
Forming, cutting and handling
Roll-forms, folds at 1–2 × t and slits cleanly with the film on; shear, do not grind. Dark blue shows scratches as bright zinc — keep the film until installation and touch up with 5010 repair paint; store under cover. Phthalocyanine blue is chemically inert: it tolerates alkaline cleaners and mild solvents that would mark organic reds.
Where it is used
- Warehouse, logistics and cold-chain building walls and roofs
- Sandwich-panel outer skins for food and industrial plants
- Slotted-angle shelving, racking and steel furniture
- Steel doors, cabinets and shutters
- Corporate liveries, fences and signage
- Trapezoidal and corrugated sheds and canopies
RAL 5010 vs 5012 vs 5013
RAL 5012 light blue is greener and brighter — a to-order colour for schools and sports halls; RAL 5013 cobalt blue is darker and near-navy for liveries. 5010 is the stock industrial blue between them. For a green industrial scheme see RAL 6005; all colours and systems on the PPGI hub.
Price
RAL 5010 carries about 20 USD/t over the 9002 base (phthalocyanine pigment cost); SMP adds 15–20 %, PVDF 30–40 %. Bands below are the month's indicative FOB Istanbul ranges for 0.50 mm PE and the stock gauge range.
Bands from our weekly export list (September 2026), FOB Istanbul, full-container quantities, excluding freight and certificates. Firm price per project on RFQ within one working day.
Export and packing
Packing of RAL 5010 PPGI sheet: coils on cradles (eye-to-sky, VCI wrap, four straps, 5–25 t) or sheet packs on skids up to 3 t with interleaving paper and corner protectors; 20' ≈ one coil (≤ 20 t), 40' HC ≈ two coils or 24 t of sheet. Tariff 7210 / 7209 / 7208.
| Term | Detail |
|---|---|
| MOQ | 3 t from stock; 10 t for SMP / PVDF |
| Incoterms | FOB Istanbul · CIF / CFR Gulf, Africa · DAP EU, Balkans, Iraq, Caucasus · DAP Aktau |
| Lead time | Blue 0.40–0.50 mm from stock in 3–7 working days; SMP and PVDF blue 4–6 weeks (pigment batch) |
| Packing | Coils 3–8 t eye-to-sky, PE-wrapped with VCI paper and edge protectors; wall-panel sheet on skids under film |
| Container / truck | 20' ≈ 2 coils or 18 t; 40' HC ≈ 24 t of sheet |
| Documents | Invoice, packing list, EN 10204 3.1 (3.2 on request), certificate of origin; SASO / SONCAP / PVoC on request |
| Payment | 30% advance, balance against B/L copy; L/C at sight for orders above 100 t |
Certificates and testing
RAL 5010 PPGI sheet ships with EN 10204 3.1 certificates cross-referenced to the stencilled heat numbers. Where the project requires it we arrange 3.2 certification with Lloyd's, BV, TÜV or SGS, ultrasonic examination to EN 10160 and Charpy testing at the temperature you specify.
How to order
Specify RAL 5010, thickness (TCT), width, coil or sheet length, coating system (PE stock / SMP / PVDF), zinc class, backing coat, film and quantity; ask for the pigment type on the certificate for outdoor use.
Standards
- EN 10169 — continuously organic-coated (coil-coated) steel
- EN 10346 — DX51D+Z substrate
- RAL 841-GL colour register
- EN 13523 (ECCA) test methods; EN 10204 3.1
Grades
Grade data sheets (chemistry, mechanicals, equivalents) are on our reference site: DX51D · S250GD · DX52D
Frequently asked questions
What colour is RAL 5010?
Gentian blue — a saturated mid-dark blue (LRV ≈ 8 %), the standard industrial blue of warehouse walls, sandwich panels, shelving and steel doors.
Does blue PPGI fade?
Phthalocyanine-pigmented 5010 holds its colour 10–15 years even in polyester; cheaper ultramarine or organic blues fade in 3–6 years — check the pigment on the coating certificate.
What is the difference between RAL 5010 and RAL 5013?
5013 cobalt blue is darker and closer to navy; 5010 is brighter and is the stock warehouse blue. 5012 light blue is lighter and greener still.
Can RAL 5010 be used for a roof?
Yes — it is one of the few chroma colours stable enough in PE for roofs; it runs hot (≈ 70 °C) so SMP or PVDF is recommended in the Gulf.
What is the price of RAL 5010 PPGI?
About 20 USD/t over RAL 9002 in PE; see the indicative FOB Istanbul bands above.
