What is slotted angle?

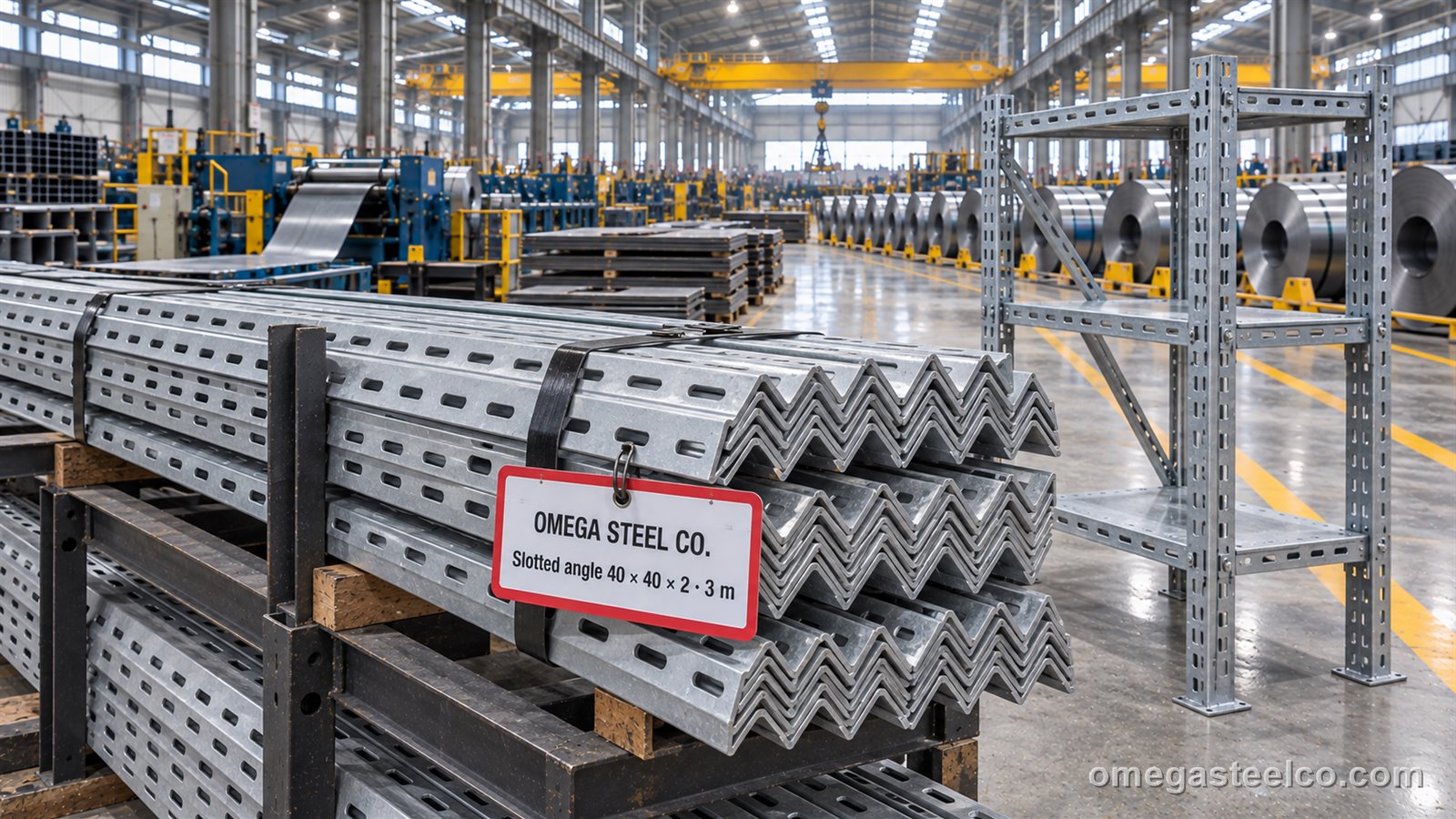

Slotted angle is a light cold-formed steel angle punched along both legs with a repeating pattern of slots and round holes, so any two pieces bolt together at any point without drilling. Invented for adjustable shelving (the Dexion pattern), it now builds storage racks, archive and stock shelving, workbenches and tables, machine guards and frames, conveyor supports, partition frames, display stands and site-camp furniture. Two sizes cover most work: 40 × 40 × 2 mm (general) and 50 × 50 × 2 mm (heavier racks); 36 × 36 is the light shelving size. We roll and punch it on our own line from pre-galvanized strip or painted cold-rolled steel.
Sizes, pattern and weight
| Profile | Thickness | kg/m | Slot pattern | Standard lengths | Finish | Use |
|---|---|---|---|---|---|---|
| 36 × 36 | 1.8–2.0 mm | 1.05–1.15 | Slots 25 × 9 / holes Ø8.5, 40 mm pitch | 2 000 / 2 400 / 3 000 | Galvanized, grey RAL 7035, blue RAL 5010 | Light shelving, displays |
| 40 × 40 | 2.0 mm | 1.25 | Slots 25 × 9 / holes Ø8.5, 40 mm pitch | 2 000 / 2 400 / 3 000 | Galvanized, painted | General racks, workbenches (most ordered) |
| 50 × 50 | 2.0–2.5 mm | 1.58–1.95 | Slots 32 × 9 / holes Ø8.5, 50 mm pitch | 2 400 / 3 000 | Galvanized, painted | Heavy racks, frames, mezzanine supports |
| 40 × 60 (unequal) | 2.0 mm | 1.55 | Slots both legs | 2 400 / 3 000 | Galvanized | Beams for shelf panels |
| Flat slotted strip 40 × 2 | 2.0 mm | 0.63 | Slots | 2 000 / 2 400 | Galvanized | Braces, ties |
Lengths cut to order from 500 mm; slots on both legs; M8 bolts.
Load capacity — shelving guide
| Shelf width × depth | Load per shelf (kg) | Max. shelves at 2 000 mm | Total per bay (kg) |
|---|---|---|---|
| 900 × 300 mm | 120–150 | 6 | 700–900 |
| 900 × 450 mm | 100–130 | 6 | 600–780 |
| 1 200 × 450 mm | 80–100 | 5 | 400–500 |
| 1 200 × 600 mm (50×50 uprights) | 150–200 | 5 | 750–1 000 |
| 1 500 × 600 mm (50×50, braced) | 120–150 | 4 | 480–600 |
Guide values with diagonal bracing on the back; rack design per EN 15635 is the customer's responsibility for warehouses.
Rack and shelving kits
A kit ships flat-packed: 4 uprights (2 000–2 400 mm), 4 shelf frames per level (front/back angles + side angles), shelf panels in 0.6–0.8 mm galvanized or powder-coated steel (or 12–18 mm MDF), diagonal braces, plastic feet, M8 × 16 bolts with nuts and washers (about 120 per 5-shelf bay), corner plates and a spanner. Standard bays 900 × 300, 900 × 450, 1 200 × 450 and 1 200 × 600 mm; 4–6 shelves; colours grey, blue, or galvanized. About 300–450 five-shelf kits per 40' HC.
Accessories
- M8 × 16 / 20 bolts with nuts and washers, galvanized (boxes of 500 / 1 000)
- Corner gusset plates, flat and L-shaped
- Plastic end caps and feet
- Shelf panels: steel 0.6–0.8 mm (galv. or painted), MDF, wire mesh
- Diagonal braces (flat slotted strip)
- Hardware kits per bay
Finish
Pre-galvanized Z140–Z275 (rolled from galvanized strip, cut edges exposed — fine indoors and in dry stores) is the export standard; powder-coated RAL 7035 grey, 5010 blue, 3020 red or 7016 anthracite on cold-rolled steel for shops and offices; hot-dip galvanized after forming for outdoor and humid use.
Price
Slotted angle is priced per bar or per ton (about 12–18% above pre-galvanized hollow-section per ton for punching), bolts per 1 000, and rack kits per bay (as a guide 25–45 USD FOB for a 900 × 450 × 2 000 five-shelf galvanized kit in 300-kit lots). Firm price per item list within one working day.
Bands from our weekly export list (September 2026), FOB Istanbul, full-container quantities, excluding freight and certificates. Firm price per project on RFQ within one working day.
Export and packing
Bars in bundles of 25–50 (nested, strapped, 60–120 kg); kits flat-packed in cartons or on pallets with bolt bags; 40' HC ≈ 18–22 t of bars or 300–450 kits. HS code 7216.61 (cold-formed angles) / 9403.20 (metal furniture, for kits).
| Term | Detail |
|---|---|
| MOQ | 3 t of bars (≈ 1 000 pcs) or 100 rack kits |
| Incoterms | FOB Istanbul · CIF / CFR Gulf, Africa · DAP EU, Balkans, Iraq, Caucasus · DAP Aktau |
| Lead time | Galvanized bars 7–12 working days; painted 2–3 weeks; kits 3–4 weeks |
| Packing | Bundles 25–50 bars; kits in cartons / on pallets with bolt bags |
| Container / truck | 40' HC ≈ 18–22 t bars or 300–450 kits · 20' ≈ 10 t / 150 kits |
| Documents | Invoice, packing list, EN 10204 3.1, certificate of origin; SASO / SONCAP on request |
| Payment | 30% advance, balance against B/L copy |
Certificates
EN 10204 3.1 for strip, powder-coat thickness report, certificate of origin; SASO, SONCAP on request.
How to order
Send profile, length, finish, quantity in bars or kits (with bay sizes and shelf type), bolt quantity and port. Reply within one working day; stock galvanized bars ship in 7–12 working days.
Standards
- EN 10346 DX51D+Z140–Z275 (galvanized strip)
- EN 10130 DC01 (painted)
- EN 15635 / FEM 10.2.02 (storage equipment — customer design)
- ISO 898 (bolts)
Grades
Grade data sheets (chemistry, mechanicals, equivalents) are on our reference site: DX51D · DC01
Frequently asked questions
What is a slotted angle?
A 2 mm cold-formed steel angle punched with slots and holes along both legs so pieces bolt together anywhere without drilling — the standard for adjustable shelving, racks, benches and light frames.
What sizes are available?
36×36, 40×40 and 50×50 mm × 2.0 mm (2.5 mm for 50×50 heavy), 2 000, 2 400 and 3 000 mm long or cut to order; galvanized or powder-coated.
How much weight can slotted angle shelving hold?
About 100–150 kg per shelf on a 900 × 450 mm bay with 40×40 uprights, 150–200 kg with 50×50 uprights and bracing; 600–1 000 kg per bay. Warehouse racks must be designed to EN 15635.
Do you supply complete shelving kits?
Yes — flat-packed bays with uprights, shelf frames, steel or MDF panels, braces, bolts and feet; 300–450 kits per 40' HC.
Galvanized or painted?
Pre-galvanized for warehouses, stores and export (no maintenance); powder-coated grey or blue for offices, shops and archives; hot-dip after forming for outdoor use.
What is the price of slotted angle?
Per bar or per ton, roughly 12–18% above galvanized hollow sections; kits 25–45 USD per bay FOB in 300-kit lots. Firm price within one working day.
Do you manufacture it yourselves?
Yes — roll-formed and punched on our own line in Dilovası from galvanized coil stock; shelf panels are cut and folded in the same plant.
