Hollow Sections SHS RHS Manufacturer Turkey

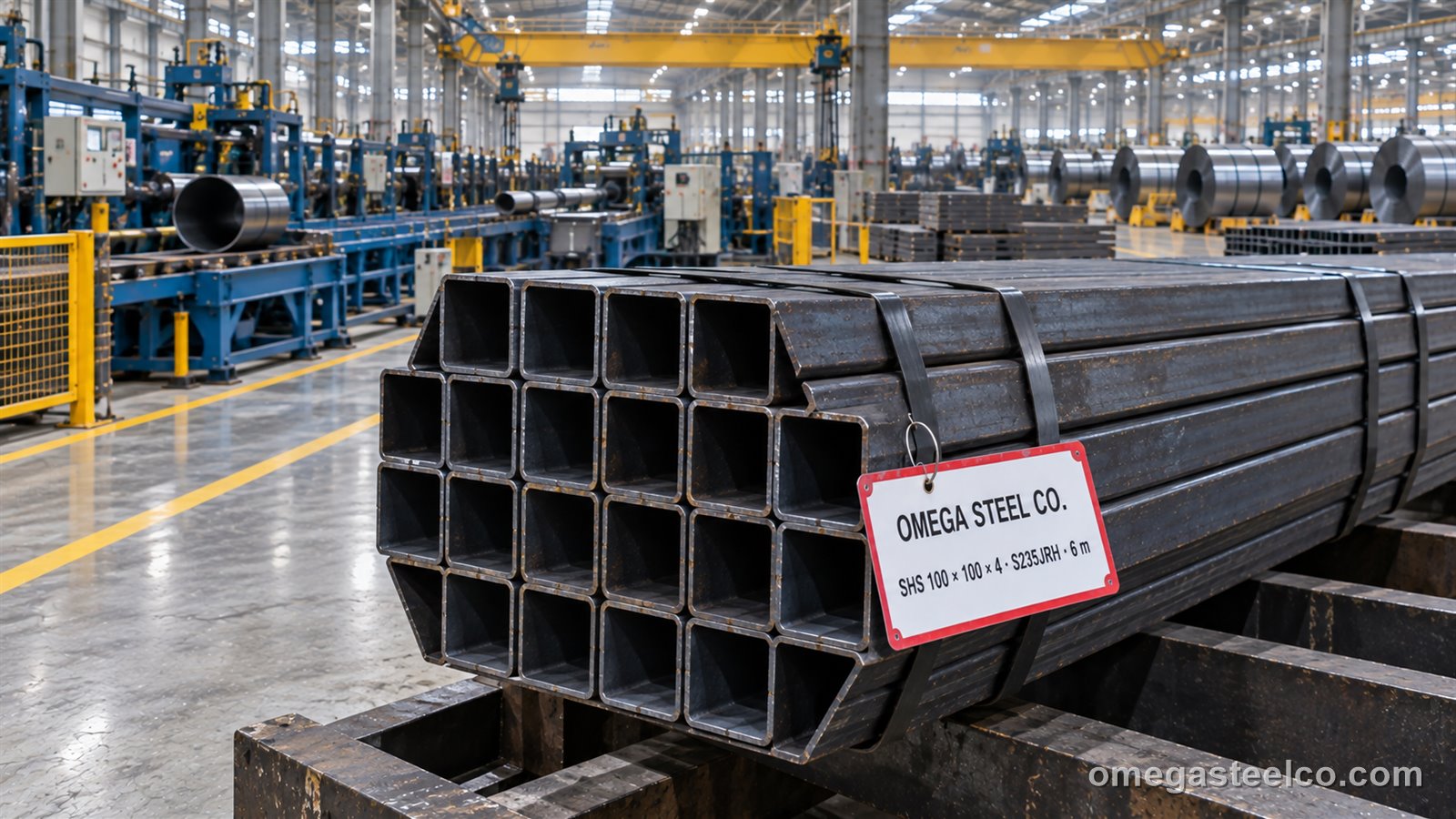

What is a hollow section (box section, MS square tube)?

A hollow section is a closed structural tube — square (SHS), rectangular (RHS) or circular (CHS) — cold-formed from strip and high-frequency welded along one seam. Compared with an open section of the same weight it has 2–3× the torsional stiffness and the same bending strength in both axes, which is why a 100×100×4 SHS carries a canopy column or a truss chord that would otherwise need a heavier I-beam. The Gulf and South Asia call it box section, MS square tube or MS rectangular tube; Europe calls it SHS/RHS to EN 10219; the US, HSS to ASTM A500. Same product; the grade table below aligns the names.

We produce it on our own tube mill in Dilovası — the strip is slit from our coil stock, formed, welded, sized and cut in one line — so lengths, wall thicknesses and finishes can follow the order rather than a fixed catalogue.

Every variant on its own page

Each hollow-section type has a dedicated page with its full size and weight table: square hollow section (SHS), rectangular hollow section (RHS), galvanized square tube, galvanized rectangular tube, cold-rolled (DKP) box section, pre-painted box section, thick-wall hollow section and the structural grade S355J2H hollow section.

Size range and what we roll

Sizes above 200×200 are rolled from 6–12 mm hot-rolled strip on the heavy mill; sizes below 40×40 from 1.2–2 mm cold-rolled or galvanized strip. Both meet EN 10219-2 tolerances on outside dimension (±1% min ±0.5 mm), wall (±10%), squareness (90° ±1°) and straightness (0.2% of length).

Production range, Dilovası tube mill
Shape	Sizes	Wall	Lengths	Finish
SHS square	15×15 – 400×400 mm	1.2 – 12 mm	6 m std; 5–14 m on request	Black, Z275 pre-galv, HDG, painted
RHS rectangular	20×10 – 400×200 mm	1.2 – 12 mm	6 m std; 5–14 m on request	Black, Z275 pre-galv, HDG, painted
CHS round	Ø 13 – 323.9 mm	1.2 – 8 mm	6 m std; 12 m	See ERW pipe page
Oval / special	To drawing	1.0 – 3 mm	To order	See custom profiles page

Grades and equivalents

S235JRH covers most orders; S355J2H is specified by EU and Gulf structural engineers for primary members and is required for EN 1090 CE-marked components. Chemistry and mechanicals of the base grades are on our reference site (links below).

Hollow section grades (cold-formed, EN 10219-1)
EN 10219	Yield min (MPa)	Tensile (MPa)	Impact	ASTM A500	Use
S235JRH	235	360–510	27 J at +20 °C	Grade B (46 ksi)	General fabrication, fences, furniture, light frames
S275J0H	275	410–560	27 J at 0 °C	Grade B/C	Building frames, canopies
S355J2H	355	470–630	27 J at −20 °C	Grade C (50 ksi)	Trusses, columns, cranes, EN 1090 EXC2/3

Square hollow sections — weight table (kg/m)

Nominal mass per metre for the sizes we stock or roll to order. A 6 m bar of 40×40×2 weighs 13 kg; a 24 t truck carries about 1 840 of them. Use the bars-per-ton column to size an order.

Filter rows

Square hollow sections (SHS) — weight per metre, EN 10219
Size (mm)	Wall (mm)	kg/m	kg per 6 m bar	Bars per ton
15 × 15	1.5	0.64	3.84	260
15 × 15	2	0.82	4.92	203
16 × 16	1.5	0.68	4.1	244
20 × 20	1.5	0.85	5.1	196
20 × 20	1.9	1.04	6.24	160
20 × 20	2	1.09	6.54	153
20 × 20	2.5	1.37	8.22	122
25 × 25	1.5	1.07	6.42	156
25 × 25	1.9	1.32	7.92	126
25 × 25	2	1.38	8.28	121
25 × 25	2.5	1.73	10.38	96
25 × 25	3	2.05	12.3	81
30 × 30	1.5	1.26	7.56	132
30 × 30	1.9	1.56	9.36	107
30 × 30	2	1.64	9.84	102
30 × 30	2.5	2.06	12.36	81
30 × 30	3	2.45	14.7	68
30 × 30	4	3.18	19.08	52
35 × 35	1.5	1.5	9	111
35 × 35	2	1.95	11.7	85
35 × 35	2.5	2.39	14.34	70
35 × 35	3	2.82	16.92	59
40 × 40	1.5	1.67	10.02	100
40 × 40	1.9	2.08	12.48	80
40 × 40	2	2.18	13.08	76
40 × 40	2.4	2.58	15.48	65
40 × 40	2.5	2.69	16.14	62
40 × 40	2.9	3.09	18.54	54
40 × 40	3	3.22	19.32	52
40 × 40	4	4.19	25.14	40
40 × 40	5	5.13	30.78	32
45 × 45	1.5	1.91	11.46	87
45 × 45	2	2.5	15	67
45 × 45	2.5	3.09	18.54	54
45 × 45	3	3.66	21.96	46
45 × 45	4	4.77	28.62	35
45 × 45	5	5.85	35.1	28
50 × 50	1.5	1.83	10.98	91
50 × 50	1.9	2.28	13.68	73
50 × 50	2	2.39	14.34	70
50 × 50	2.4	2.83	16.98	59
50 × 50	2.5	2.95	17.7	56
50 × 50	2.9	3.4	20.4	49
50 × 50	3	3.55	21.3	47
50 × 50	4	4.66	27.96	36
50 × 50	5	5.74	34.44	29
60 × 60	1.5	2.25	13.5	74
60 × 60	1.9	2.78	16.68	60
60 × 60	2	2.91	17.46	57
60 × 60	2.4	3.43	20.58	49
60 × 60	2.5	3.58	21.48	47
60 × 60	2.9	4.17	25.02	40
60 × 60	3	4.36	26.16	38
60 × 60	4	5.73	34.38	29
60 × 60	5	7.07	42.42	24
70 × 70	1.5	2.67	16.02	62
70 × 70	1.9	3.35	20.1	50
70 × 70	2	3.5	21	48
70 × 70	2.4	4	24	42
70 × 70	2.5	4.17	25.02	40
70 × 70	2.9	4.88	29.28	34
70 × 70	3	5.1	30.6	33
70 × 70	4	6.73	40.38	25
70 × 70	5	8.32	49.92	20
70 × 70	6	10	60	17
75 × 75	2	3.76	22.56	44
75 × 75	3	5.57	33.42	30
80 × 80	1.5	3.08	18.48	54
80 × 80	1.9	3.83	22.98	44
80 × 80	2	4.01	24.06	42
80 × 80	2.4	4.79	28.74	35
80 × 80	2.5	5	30	33
80 × 80	2.9	5.82	34.92	29
80 × 80	3	6.1	36.6	27
80 × 80	4	8.06	48.36	21
80 × 80	5	10	60	17
80 × 80	6	12.07	72.42	14
90 × 90	2	5.53	33.16	30
90 × 90	2.4	6.6	39.61	25
90 × 90	2.5	6.87	41.21	24
90 × 90	2.9	7.93	47.59	21
90 × 90	3	8.2	49.17	20
90 × 90	4	10.8	64.81	15
90 × 90	5	13.35	80.07	12
90 × 90	6	15.83	94.96	11
100 × 100	2	5.05	30.3	33
100 × 100	2.4	6.06	36.36	28
100 × 100	2.5	6.33	37.98	26
100 × 100	2.9	7.35	44.1	23
100 × 100	3	7.67	46.02	22
100 × 100	4	10.16	60.96	16
100 × 100	5	12.6	75.6	13
100 × 100	6	15.36	92.16	11
100 × 100	8	20.46	122.76	8
110 × 110	2.5	8.44	50.63	20
110 × 110	3	10.08	60.47	17
110 × 110	4	13.31	79.88	13
110 × 110	5	16.49	98.91	10
110 × 110	6	19.59	117.56	9
110 × 110	8	25.62	153.73	7
120 × 120	2.5	7.68	46.08	22
120 × 120	3	9.29	55.74	18
120 × 120	4	12.36	74.16	13
120 × 120	5	15.42	92.52	11
120 × 120	6	18.79	112.74	9
120 × 120	8	25.49	152.94	7
140 × 140	3	10.91	65.46	15
140 × 140	4	14.54	87.24	11
140 × 140	5	18.14	108.84	9
140 × 140	6	22.18	133.08	8
140 × 140	8	30.16	180.96	6
150 × 150	3	11.68	70.08	14
150 × 150	4	15.57	93.42	11
150 × 150	5	19.44	116.64	9
150 × 150	6	23.75	142.5	7
150 × 150	8	32.32	193.92	5
175 × 175	3	13.71	82.26	12
175 × 175	4	18.28	109.68	9
175 × 175	5	22.83	136.98	7
175 × 175	6	27.94	167.64	6
175 × 175	8	38.07	228.42	4
200 × 200	4	21	126	8
200 × 200	5	26.24	157.44	6
200 × 200	6	32.13	192.78	5
200 × 200	8	43.83	262.98	4
200 × 200	10	56.94	341.64	3
250 × 250	5	33.07	198.42	5
250 × 250	6	40.51	243.06	4
250 × 250	8	55.35	332.1	3
250 × 250	10	74.07	444.42	2

Nominal mass per EN 10219-2 with corner radii; 6 m standard length, 12 m on request.

Rectangular hollow sections — weight table (kg/m)

RHS is ordered as height × width × wall; the longer side is the bending axis. For purlins and girts a 100×50×2.5 or 120×60×3 RHS often replaces a C-purlin where the span is short and a closed section is wanted for painting.

Filter rows

Rectangular hollow sections (RHS) — weight per metre, EN 10219
Size (mm)	Wall (mm)	kg/m	kg per 6 m bar	Bars per ton
10 × 20	1.5	0.64	3.84	260
10 × 20	2	0.82	4.92	203
10 × 30	1.5	0.85	5.1	196
10 × 30	1.9	1.08	6.48	154
10 × 30	2	1.09	6.54	153
10 × 30	2.5	1.37	8.24	121
10 × 40	1.5	1.11	6.64	151
10 × 40	2	1.44	8.66	115
10 × 40	2.5	1.77	10.6	94
10 × 50	1.5	1.34	8.05	124
10 × 50	2	1.76	10.55	95
15 × 25	1.5	0.85	5.1	196
15 × 25	1.9	1.08	6.48	154
15 × 25	2	1.09	6.54	153
15 × 25	2.5	1.37	8.24	121
15 × 30	1.5	0.99	5.93	169
15 × 30	2	1.29	7.72	130
15 × 40	1.5	1.23	7.35	136
15 × 40	2	1.6	9.61	104
15 × 45	1.5	1.34	8.05	124
15 × 45	2	1.76	10.55	95
20 × 30	1.5	1.07	6.42	156
20 × 30	1.9	1.38	8.27	121
20 × 30	2	1.38	8.28	121
20 × 30	2.5	1.73	10.38	96
20 × 30	3	2.05	12.3	81
20 × 35	1.5	1.23	7.35	136
20 × 35	2	1.6	9.61	104
20 × 40	1.5	1.34	8.05	124
20 × 40	1.9	1.68	10.06	99
20 × 40	2	1.76	10.55	95
20 × 40	2.5	2.16	12.95	77
20 × 40	3	2.54	15.26	66
20 × 40	4	3.27	19.6	51
20 × 50	1.5	1.58	9.47	106
20 × 50	2	2.07	12.43	80
20 × 50	2.5	2.55	15.31	65
20 × 50	3	3.01	18.08	55
20 × 60	1.5	1.81	10.88	92
20 × 60	2	2.39	14.32	70
20 × 80	1.5	2.28	13.7	73
20 × 80	2	3.01	18.08	55
20 × 80	2.5	3.73	22.37	45
20 × 80	3	4.43	26.56	38
20 × 100	2	3.64	21.85	46
25 × 35	1.5	1.34	8.05	124
25 × 35	2	1.76	10.55	95
25 × 40	1.5	1.46	8.76	114
25 × 40	2	1.92	11.49	87
25 × 40	2.5	2.36	14.13	71
25 × 40	3	2.78	16.67	60
25 × 50	1.5	1.7	10.18	98
25 × 50	2	2.2	13.19	76
25 × 50	2.5	2.75	16.49	61
25 × 50	3	3.25	19.5	51
30 × 40	1.5	1.49	8.94	112
30 × 40	1.9	1.98	11.85	84
30 × 40	2	1.93	11.58	86
30 × 40	2.5	2.39	14.34	70
30 × 40	3	2.83	16.98	59
30 × 50	1.5	1.81	10.88	92
30 × 50	1.9	2.27	13.64	73
30 × 50	2	2.36	14.13	71
30 × 50	2.4	2.83	17	59
30 × 50	2.5	2.9	17.42	57
30 × 50	2.9	3.38	20.27	49
30 × 50	3	3.49	20.91	48
30 × 50	4	4.52	27.13	37
30 × 50	5	5.5	32.97	30
30 × 60	1.5	2.05	12.29	81
30 × 60	2	2.67	16.01	62
30 × 60	2.5	3.34	20.02	50
30 × 60	3	3.95	23.68	42
30 × 60	4	5.15	30.9	32
30 × 60	5	6.28	37.68	27
30 × 70	1.5	2.28	13.7	73
30 × 70	1.9	2.87	17.22	58
30 × 70	2	3.01	18.08	55
30 × 70	2.5	3.73	22.37	45
30 × 70	3	4.43	26.56	38
30 × 70	4	5.78	34.67	29
30 × 80	1.5	2.52	15.12	66
30 × 80	2	3.33	19.97	50
30 × 80	2.5	4.12	24.73	40
30 × 80	3	4.9	29.39	34
30 × 80	4	6.41	38.44	26
30 × 80	5	7.85	47.1	21
30 × 90	2	3.64	21.85	46
30 × 90	2.5	4.51	27.08	37
30 × 90	3	5.37	32.21	31
30 × 100	1.5	2.99	17.95	56
30 × 100	2	3.96	23.74	42
30 × 100	2.5	4.91	29.44	34
30 × 100	3	5.84	35.04	29
30 × 100	4	7.66	45.97	22
30 × 100	5	9.42	56.52	18
30 × 110	1.5	3.23	19.36	52
40 × 50	1.5	1.91	11.46	87
40 × 50	2	2.5	15	67
40 × 50	2.5	3.09	18.54	54
40 × 50	3	3.66	21.96	46
40 × 50	4	5.15	30.9	32
40 × 50	5	6.28	37.68	27
40 × 60	1.5	1.83	10.98	91
40 × 60	1.9	2.87	17.22	58
40 × 60	2	2.39	14.34	70
40 × 60	2.4	3.59	21.52	46
40 × 60	2.5	2.95	17.7	56
40 × 60	2.9	4.29	25.73	39
40 × 60	3	3.55	21.3	47
40 × 60	4	5.77	34.64	29
40 × 60	5	7.07	42.39	24
40 × 70	1.5	2.52	15.12	66
40 × 70	2	3.33	19.97	50
40 × 70	2.5	4.12	24.73	40
40 × 70	3	4.9	29.39	34
40 × 70	4	6.41	38.44	26
40 × 70	5	7.85	47.1	21
40 × 80	1.5	2.76	16.53	60
40 × 80	1.9	3.47	20.8	48
40 × 80	2	3.61	21.66	46
40 × 80	2.4	4.34	26.05	38
40 × 80	2.5	4.51	27.08	37
40 × 80	2.9	5.2	31.2	32
40 × 80	3	5.32	31.91	31
40 × 80	4	6.98	41.9	24
40 × 80	5	8.64	51.81	19
40 × 100	1.5	3.23	19.36	52
40 × 100	1.9	4.06	24.38	41
40 × 100	2	4.27	25.62	39
40 × 100	2.4	5.09	30.56	33
40 × 100	2.5	5.3	31.79	31
40 × 100	2.9	6.11	36.66	27
40 × 100	3	6.31	37.87	26
40 × 100	4	8.29	49.74	20
40 × 100	5	10.21	61.23	16
40 × 100	6	12.06	72.35	14
40 × 120	2	4.9	29.39	34
40 × 120	2.5	6.08	36.5	27
40 × 120	3	7.25	43.52	23
40 × 120	4	9.55	57.28	17
40 × 120	5	11.78	70.65	14
40 × 130	2.5	6.48	38.86	26
40 × 130	3	7.72	46.34	22
40 × 130	4	10.17	61.04	16
40 × 130	5	12.56	75.36	13
40 × 140	3	8.2	49.17	20
40 × 140	4	10.8	64.81	15
40 × 140	5	13.35	80.07	12
50 × 60	1.5	2.52	15.12	66
50 × 60	2	3.33	19.97	50
50 × 60	2.5	4.12	24.73	40
50 × 60	3	4.9	29.39	34
50 × 60	4	6.41	38.44	26
50 × 60	5	7.85	47.1	21
50 × 70	2	3.64	21.85	46
50 × 70	2.5	4.51	27.08	37
50 × 70	3	5.37	32.21	31
50 × 70	4	7.03	42.2	24
50 × 70	5	8.64	51.81	19
50 × 80	1.5	2.73	16.38	61
50 × 80	2	3.55	21.3	47
50 × 80	2.5	4.37	26.22	38
50 × 80	3	5.18	31.08	32
50 × 80	4	6.79	40.74	25
50 × 80	5	9.42	56.52	18
50 × 90	1.5	3.23	19.36	52
50 × 90	1.9	4.06	24.38	41
50 × 90	2	4.27	25.62	39
50 × 90	2.4	5.09	30.56	33
50 × 90	2.5	5.3	31.79	31
50 × 90	2.9	6.11	36.66	27
50 × 90	3	6.31	37.87	26
50 × 90	4	8.29	49.74	20
50 × 90	5	10.21	61.23	16
50 × 90	6	12.06	72.35	14
50 × 100	1.5	3.46	20.77	48
50 × 100	1.9	4.36	26.17	38
50 × 100	2	4.58	27.5	36
50 × 100	2.4	5.47	32.83	30
50 × 100	2.5	5.69	34.15	29
50 × 100	2.9	6.57	39.39	25
50 × 100	3	6.87	41.21	24
50 × 100	4	9.02	54.14	18
50 × 100	5	10.99	65.94	15
50 × 100	6	13	78	13
50 × 120	2.5	6.48	38.86	26
50 × 120	3	7.72	46.34	22
50 × 120	4	10.17	61.04	16
50 × 120	5	12.56	75.36	13
50 × 150	2	6.15	36.92	27
50 × 150	2.5	7.65	45.92	22
50 × 150	3	9.14	54.82	18
50 × 150	4	12.06	72.35	14
50 × 150	5	14.92	89.49	11
50 × 150	6	17.71	106.26	9
60 × 80	1.5	2.82	16.92	59
60 × 80	1.9	4.06	24.38	41
60 × 80	2	3.7	22.2	45
60 × 80	2.4	5.09	30.56	33
60 × 80	2.5	4.58	27.48	36
60 × 80	2.9	6.11	36.66	27
60 × 80	3	5.41	32.46	31
60 × 80	4	7.06	42.36	24
60 × 80	5	10.21	61.23	16
60 × 80	6	12.06	72.35	14
60 × 100	1.5	3.7	22.18	45
60 × 100	1.9	4.66	27.95	36
60 × 100	2	4.9	29.39	34
60 × 100	2.4	5.85	35.09	28
60 × 100	2.5	6.08	36.5	27
60 × 100	2.9	7.02	42.13	24
60 × 100	3	7.24	43.43	23
60 × 100	4	9.52	57.14	17
60 × 100	5	11.78	70.65	14
60 × 100	6	13.94	83.65	12
60 × 120	2	5.53	33.16	30
60 × 120	2.4	6.6	39.61	25
60 × 120	2.5	6.87	41.21	24
60 × 120	2.9	7.93	47.59	21
60 × 120	3	8.2	49.17	20
60 × 120	4	11.03	66.19	15
60 × 120	5	13.68	82.08	12
60 × 120	6	15.83	94.96	11
60 × 140	2.5	7.65	45.92	22
60 × 140	3	9.14	54.82	18
60 × 140	4	12.06	72.35	14
60 × 140	5	14.92	89.49	11
60 × 140	6	17.71	106.26	9
70 × 100	2.5	6.48	38.86	26
70 × 100	3	7.72	46.34	22
70 × 100	4	10.17	61.04	16
70 × 100	5	12.56	75.36	13
70 × 110	3	8.2	49.17	20
70 × 110	4	10.8	64.81	15
70 × 110	5	13.35	80.07	12
70 × 120	2	5.84	35.04	29
70 × 120	2.5	7.26	43.57	23
70 × 120	3	8.67	52	19
80 × 100	2	4.51	27.06	37
80 × 100	2.4	6.6	39.61	25
80 × 100	2.5	5.59	33.54	30
80 × 100	2.9	7.93	47.59	21
80 × 100	3	6.61	39.66	25
80 × 100	4	8.71	52.26	19
80 × 100	5	13.35	80.07	12
80 × 100	6	15.83	94.96	11
80 × 120	2	4.97	29.82	34
80 × 120	2.4	7.36	44.13	23
80 × 120	2.5	6.19	37.14	27
80 × 120	2.9	8.84	53.05	19
80 × 120	3	7.37	44.22	23
80 × 120	4	9.71	58.26	17
80 × 120	5	14.92	89.49	11
80 × 120	6	17.71	106.26	9
80 × 120	8	23.11	138.66	7
80 × 140	2.5	8.44	50.63	20
80 × 140	3	10.08	60.47	17
80 × 140	4	13.31	79.88	13
80 × 140	5	16.49	98.91	10
80 × 140	6	19.59	117.56	9
80 × 140	8	25.62	153.73	7
80 × 160	2.5	9.22	55.34	18
80 × 160	3	11.02	66.13	15
80 × 160	4	14.57	87.42	11
80 × 160	5	18.06	108.33	9
80 × 160	6	21.48	128.87	8
80 × 160	8	28.13	168.8	6
80 × 200	3	12.91	77.43	13
80 × 200	4	17.08	102.49	10
80 × 200	5	21.2	127.17	8
80 × 200	6	25.25	151.48	7
100 × 120	2.5	8.44	50.63	20
100 × 120	3	10.08	60.47	17
100 × 120	4	13.31	79.88	13
100 × 120	5	16.49	98.91	10
100 × 120	6	19.59	117.56	9
100 × 120	8	25.62	153.73	7
100 × 150	3	9.3	55.8	18
100 × 150	4	12.3	73.8	14
100 × 150	5	19.31	115.83	9
100 × 150	6	22.42	134.52	7
100 × 150	8	29.39	176.34	6
100 × 180	3	12.91	77.43	13
100 × 180	4	17.08	102.49	10
100 × 180	5	21.2	127.17	8
100 × 180	6	25.25	151.48	7
100 × 200	3	11.68	70.08	14
100 × 200	4	15.57	93.42	11
100 × 200	5	22.77	136.59	7
100 × 200	6	27.13	162.78	6
100 × 200	8	35.67	214.02	5
150 × 200	3	13.71	82.26	12
150 × 200	4	18.28	109.68	9
150 × 200	5	26.69	160.14	6
150 × 200	6	31.84	191.04	5
150 × 200	8	41.95	251.7	4
150 × 250	4	24.62	147.71	7
150 × 250	5	30.62	183.69	5
150 × 250	6	36.55	219.3	5
150 × 250	8	48.23	289.38	3
150 × 250	10	59.66	357.96	3
200 × 300	5	33.07	198.42	5
200 × 300	6	45.97	275.82	4
200 × 300	8	60.79	364.74	3
200 × 300	10	75.36	452.16	2

Nominal mass per EN 10219-2; 6 m standard length, 12 m on request.

Pre-galvanized (Z275) hollow sections

Rolled from DX51D+Z275 strip, so the zinc is on the inside and outside faces of the strip and the weld seam is zinc-sprayed after welding. It is lighter and cheaper than hot-dip galvanizing after forming, with a smoother surface for fences, greenhouses, racking, solar mounting and furniture. For structural outdoor use choose hot-dip galvanizing after fabrication (EN ISO 1461, min. 70 µm).

Filter rows

Pre-galvanized hollow sections — weight per metre
Size (mm)	Wall (mm)	kg/m	kg per 6 m bar
20 × 20	1.35	0.83	4.96
20 × 20	1.8	1.07	6.44
20 × 20	2.5	1.47	8.83
20 × 30	1.4	1.07	6.4
20 × 30	1.5	1.14	6.85
20 × 30	1.8	1.37	8.22
20 × 30	2	1.51	9.04
20 × 30	2.5	1.87	11.19
20 × 40	1.2	1.11	6.67
20 × 40	1.35	1.25	7.5
20 × 40	1.5	1.38	8.27
20 × 40	1.8	1.64	9.83
20 × 40	2	1.82	10.93
20 × 40	2.5	2.26	13.54
25 × 25	1.4	1.07	6.4
25 × 40	1.4	1.4	8.37
30 × 30	1.2	1.11	6.67
30 × 30	1.35	1.24	7.44
30 × 30	1.5	1.38	8.27
30 × 30	1.8	1.64	9.83
30 × 30	2	1.82	10.93
30 × 30	2.5	2.26	13.54
30 × 40	1.2	1.3	7.8
30 × 40	1.35	1.45	8.71
30 × 40	1.5	1.61	9.68
30 × 40	1.8	1.92	11.53
30 × 40	2	2.14	12.81
30 × 40	3	3.18	19.08
30 × 50	1.2	1.49	8.93
30 × 50	1.35	1.66	9.98
30 × 50	1.5	1.85	11.09
30 × 50	1.8	2.21	13.23
30 × 50	2	2.45	14.7
30 × 50	2.5	3.04	18.25
30 × 60	1.2	1.67	10
30 × 60	2	2.76	16.58
40 × 40	1.2	1.49	8.93
40 × 40	1.35	1.66	9.98
40 × 40	1.5	1.85	11.09
40 × 40	1.8	2.21	13.23
40 × 40	2	2.45	14.7
40 × 40	2.5	3.04	18.25
40 × 40	3	3.63	21.76
40 × 50	2	2.76	16.58
40 × 50	2.5	3.44	20.61
40 × 50	3	4.07	24.44
40 × 60	1.2	1.87	11.19
40 × 60	1.35	2.09	12.53
40 × 60	1.5	2.32	13.92
40 × 60	1.8	2.77	16.62
40 × 60	2	3.08	18.46
40 × 60	2.5	3.83	22.96
40 × 60	3	4.57	27.41
40 × 80	1.4	2.61	15.63
40 × 80	1.8	3.34	20.01
40 × 80	2	3.71	22.23
40 × 80	2.5	4.61	27.67
40 × 80	3	5.49	32.92
50 × 50	1.2	1.87	11.19
50 × 50	1.35	2.09	12.53
50 × 50	1.5	2.32	13.92
50 × 50	1.8	2.77	16.62
50 × 50	2	3.08	18.46
50 × 50	2.5	3.83	22.96
50 × 50	3	4.57	27.41
50 × 100	2.5	5.61	33.68
50 × 100	3	6.67	39.99
60 × 60	1.2	2.23	13.4
60 × 60	1.35	2.51	15.07
60 × 60	1.5	2.79	16.74
60 × 60	1.8	3.33	20
60 × 60	2	3.69	22.14
60 × 60	2.5	4.61	27.67
60 × 60	3	5.51	33.06
80 × 80	2.5	6.01	36.03
80 × 80	3	7.14	42.81
100 × 100	3	9.07	54.4

Roll-formed from DX51D+Z275 strip in our Dilovası tube mill; 6 m lengths.

Finishes: black, galvanized, painted

Finish options
Finish	Coating	Corrosion protection	Typical use	Extra cost vs black
Black (mill)	None, light oil	Indoor / to be painted	Structures, fabrication	—
Pre-galvanized	Z275 strip, zinc-sprayed seam	Good indoor, moderate outdoor	Fences, racking, solar, furniture	+10–15%
Hot-dip galvanized	EN ISO 1461, 70–85 µm	Excellent outdoor, 30+ yr	Guardrail, outdoor structures, Gulf	+25–35%
Powder / wet painted	Primer + RAL top coat 60–80 µm	Good with maintenance	Visible frames, canopies, fences	+15–25%
Anti-rust primer	Red-oxide 30 µm	Transport / short-term	To be top-coated on site	+5–8%

Load capacity and span — quick guide

As a simply supported beam under uniformly distributed load, a 100×100×4 S235JRH SHS spans 4 m at about 4.5 kN/m (deflection L/200); a 150×150×5 spans 6 m at 5 kN/m; a 200×100×6 RHS on its strong axis spans 6 m at 7 kN/m. As a column, 100×100×4 carries roughly 250 kN at 3 m effective length (EN 1993-1-1, buckling curve c). Full tables per section and grade are in our load-capacity guide; the structural engineer of record confirms the final choice.

Section modulus, inertia and radius of gyration for every size on the offer datasheet
EN 1993-1-1 buckling curves b (S355 hot-finished) / c (cold-formed)
CE-marked EN 1090 components fabricated on request

Cutting, punching and fabrication

Bars are cut to length (±2 mm), mitred at 45° for frames, laser-cut with holes and slots to DXF, or supplied as welded sub-frames. Ends can be capped or swaged. Our laser (up to 25 mm) and plasma lines handle plates and gussets in the same order, so a fence, canopy or racking kit ships complete.

Hollow section price per ton

Indicative FOB Istanbul bands from our weekly export list, S235JRH black, 6 m bars, full-truck or container quantities. Small and thin sections (15–30 mm, 1.2–1.5 mm) cost 10–25% more per ton than the mid-range because of the slitting and forming time per kilogram; pre-galvanized adds the zinc strip premium.

S235JRH black · 40×40–120×120760 – 1 210USD/MT · FOB Istanbul

Pre-galvanized Z275 · 20×20–100×100870 – 960USD/MT · FOB Istanbul

Pre-paintedon requestUSD/MT · FOB Istanbul

Bands from our weekly export list (September 2026), FOB Istanbul, full-container quantities, excluding freight and certificates. Firm price per project on RFQ within one working day.

Export and packing

Bars are bundled in hexagonal or square packs of 500–1 500 kg, strapped, with end caps on request; 6 m bars load into 20' and 40' containers, 12 m into 40' HC only. HS code 7306.61 (square/rectangular welded hollow sections).

Term	Detail
MOQ	1 truck (22–24 t) or 1 × 40' HC; sizes and finishes can be mixed
Incoterms	FOB Istanbul · CIF / CFR Gulf, Africa · DAP EU, Balkans, Iraq, Caucasus · DAP Aktau / Almaty
Lead time	Stock sizes 5–10 working days; mill run 2–3 weeks; HDG or painting +5–7 days
Packing	Hex bundles 500–1 500 kg, 3 straps, end caps optional; 6 m in 20'/40', 12 m in 40' HC
Container / truck	20' ≈ 20–21 t · 40' HC ≈ 24–25 t · truck 22–24 t
Documents	Invoice, packing list per bundle, EN 10204 3.1, certificate of origin; CE (EN 1090), SASO, SONCAP, EAC, COC on request
Payment	30% advance, balance against B/L copy; L/C at sight via London office

Certificates

EN 10204 3.1 for every heat (strip certificate + our weld and dimension record), CE declaration under EN 1090-1 for structural components on request, certificate of origin; SASO, SONCAP, EAC and COC arranged before loading.

How to order

Send size × wall, grade, finish, length, quantity in tons or pieces, and the port. We reply within one working day with price, bundle plan, gross weight and loading date; stock sizes ship in 5–10 working days, mill runs in 2–3 weeks.

Standards

EN 10219-1/-2 (cold-formed welded structural hollow sections)
EN 10210 (hot-finished, on request)
ASTM A500 Grade B/C
EN 10305-5 (precision, on request)
EN 1090 (CE marking of components)

Grades

Grade data sheets (chemistry, mechanicals, equivalents) are on our reference site: S235JR · S355J2 · S235JRH · S355J2H

Frequently asked questions

What is the difference between box section and hollow section?

Nothing — box section is the trade name for a square or rectangular hollow section (SHS/RHS). MS square tube and MS rectangular tube mean the same cold-formed EN 10219 / ASTM A500 product.

What sizes of MS square tube are available?

From 15×15 mm to 400×400 mm square and 20×10 to 400×200 mm rectangular, wall 1.2–12 mm, in 6 m standard bars and 5–14 m on request. The weight tables above list the stocked combinations.

What is the weight of 40×40×2 square tube?

2.18 kg per metre, 13.1 kg per 6 m bar — about 76 bars per ton. For 50×50×2: 2.93 kg/m; 100×100×4: 11.7 kg/m; 150×150×5: 22.3 kg/m.

Which grade should I specify, S235JRH or S355J2H?

S235JRH for fences, furniture, racking and light frames; S355J2H when the engineer designs to EN 1993 with a 355 MPa yield, for primary members, cranes, cold climates (impact at −20 °C) and EN 1090 EXC2/3 components.

Do you manufacture the hollow sections yourself?

Yes. Our Dilovası plant runs a tube mill fed from our own coil stock: slitting, forming, HF welding, sizing and cutting in one line, with pre-galvanized and black strip. Hot-dip galvanizing and painting are done in partner plants nearby.

How many tons of hollow section fit in a container?

About 20–21 t in a 20' and 24–25 t in a 40' HC in 6 m bars; 12 m bars need a 40' HC or a flat-rack. Bundles are packed to fill the width and chocked against the walls.

Can you supply hollow sections with holes or cut to size?

Yes — cut to length ±2 mm, mitred, laser-punched to DXF, or welded into sub-frames; caps and swaged ends on request. Processing is priced per piece on the offer.

Is pre-galvanized square tube suitable for outdoor use?

For fences, greenhouses, solar mounting and covered structures yes (Z275 gives 10–20 years inland). For structural members permanently exposed outdoors or in coastal air specify hot-dip galvanizing after fabrication (EN ISO 1461).

Hollow Sections (SHS, RHS)

What is a hollow section (box section, MS square tube)?

Every variant on its own page

Size range and what we roll

Grades and equivalents

Square hollow sections — weight table (kg/m)

Rectangular hollow sections — weight table (kg/m)

Pre-galvanized (Z275) hollow sections

Finishes: black, galvanized, painted

Load capacity and span — quick guide

Cutting, punching and fabrication

Hollow section price per ton

Export and packing

Certificates

How to order

Standards

Grades

Frequently asked questions
