Thick Wall Hollow Section Manufacturer Turkey

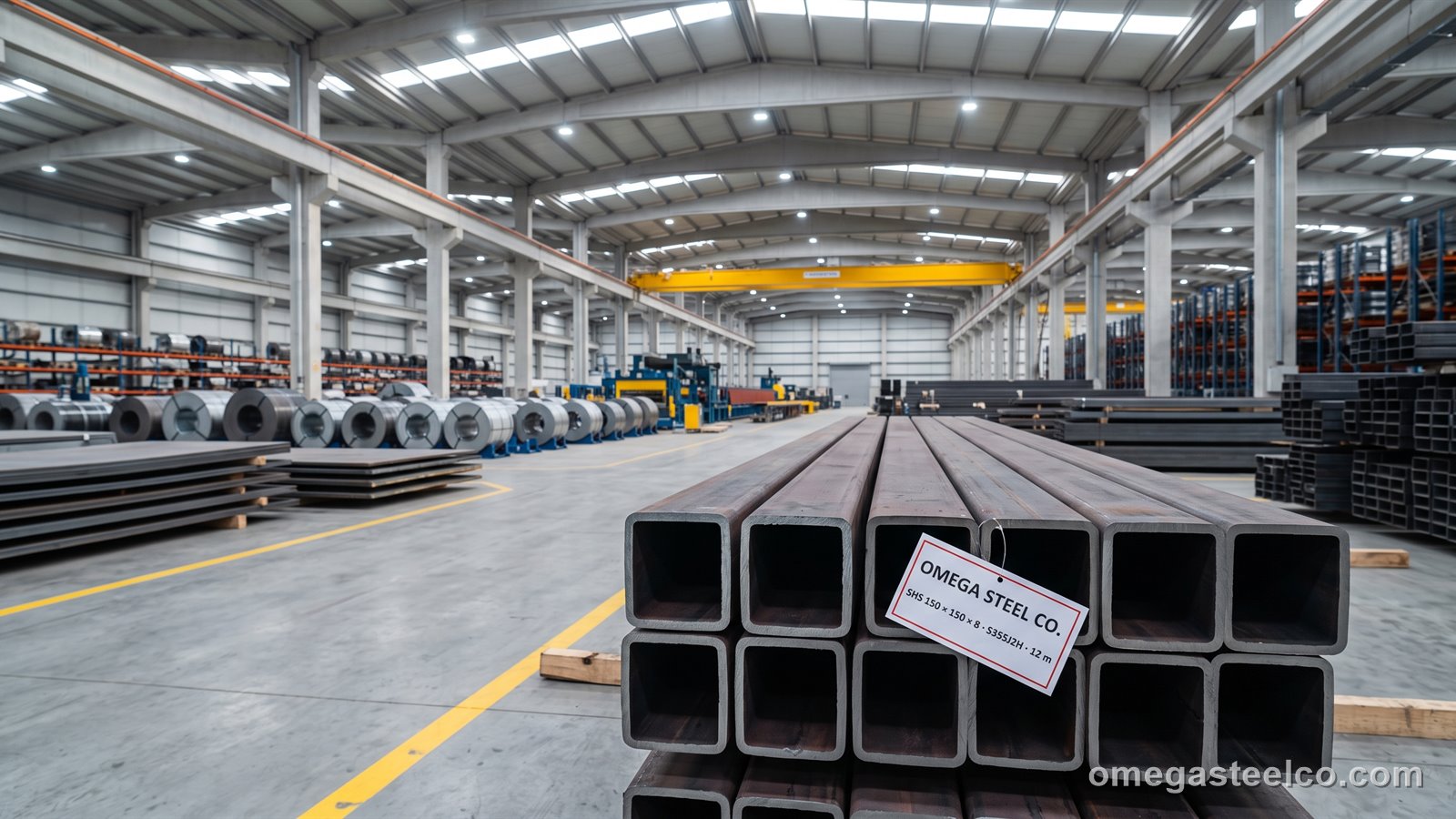

What is Thick-wall hollow sections?

Thick-wall hollow sections are the structural end of the cold-formed range: walls of 5, 6, 8 and 10 mm in sizes from 100×100 up to 250×250 mm square and 200×300 mm rectangular, rolled from plate-gauge hot-rolled strip and HF-welded to EN 10219. At these walls the tube behaves like a rolled structural section — it is CE-marked, designed to EN 1993-1-1 with cold-formed section class and buckling curve c, and welded, plated and galvanized like an H-beam — but with the advantages of a closed section: equal stiffness both ways, high torsional rigidity, a compact footprint and four flat faces to clad. Columns of warehouses and mezzanines, crane-runway posts, truss chords, machine bases and masts are its natural uses. Corner radii grow with wall (2.0–3.0 t) and the cold-work at the corners raises the yield locally; where a specification demands sharp corners or no residual stress, the hot-finished EN 10210 version is available at a premium. Our Dilovası mill rolls up to 8 mm; 10 mm walls and the largest sizes come from partner mills. Grades S235JRH for lightly loaded posts and S355J2H for everything designed to carry.

Square sizes — see 5–10 mm walls

Full square list; the thick-wall range is the 5, 6, 8 and 10 mm rows from 100×100 upward.

Filter rows

Square hollow sections (SHS) — weight per metre, EN 10219
Size (mm)	Wall (mm)	kg/m	kg per 6 m bar	Bars per ton
15 × 15	1.5	0.64	3.84	260
15 × 15	2	0.82	4.92	203
16 × 16	1.5	0.68	4.1	244
20 × 20	1.5	0.85	5.1	196
20 × 20	1.9	1.04	6.24	160
20 × 20	2	1.09	6.54	153
20 × 20	2.5	1.37	8.22	122
25 × 25	1.5	1.07	6.42	156
25 × 25	1.9	1.32	7.92	126
25 × 25	2	1.38	8.28	121
25 × 25	2.5	1.73	10.38	96
25 × 25	3	2.05	12.3	81
30 × 30	1.5	1.26	7.56	132
30 × 30	1.9	1.56	9.36	107
30 × 30	2	1.64	9.84	102
30 × 30	2.5	2.06	12.36	81
30 × 30	3	2.45	14.7	68
30 × 30	4	3.18	19.08	52
35 × 35	1.5	1.5	9	111
35 × 35	2	1.95	11.7	85
35 × 35	2.5	2.39	14.34	70
35 × 35	3	2.82	16.92	59
40 × 40	1.5	1.67	10.02	100
40 × 40	1.9	2.08	12.48	80
40 × 40	2	2.18	13.08	76
40 × 40	2.4	2.58	15.48	65
40 × 40	2.5	2.69	16.14	62
40 × 40	2.9	3.09	18.54	54
40 × 40	3	3.22	19.32	52
40 × 40	4	4.19	25.14	40
40 × 40	5	5.13	30.78	32
45 × 45	1.5	1.91	11.46	87
45 × 45	2	2.5	15	67
45 × 45	2.5	3.09	18.54	54
45 × 45	3	3.66	21.96	46
45 × 45	4	4.77	28.62	35
45 × 45	5	5.85	35.1	28
50 × 50	1.5	1.83	10.98	91
50 × 50	1.9	2.28	13.68	73
50 × 50	2	2.39	14.34	70
50 × 50	2.4	2.83	16.98	59
50 × 50	2.5	2.95	17.7	56
50 × 50	2.9	3.4	20.4	49
50 × 50	3	3.55	21.3	47
50 × 50	4	4.66	27.96	36
50 × 50	5	5.74	34.44	29
60 × 60	1.5	2.25	13.5	74
60 × 60	1.9	2.78	16.68	60
60 × 60	2	2.91	17.46	57
60 × 60	2.4	3.43	20.58	49
60 × 60	2.5	3.58	21.48	47
60 × 60	2.9	4.17	25.02	40
60 × 60	3	4.36	26.16	38
60 × 60	4	5.73	34.38	29
60 × 60	5	7.07	42.42	24
70 × 70	1.5	2.67	16.02	62
70 × 70	1.9	3.35	20.1	50
70 × 70	2	3.5	21	48
70 × 70	2.4	4	24	42
70 × 70	2.5	4.17	25.02	40
70 × 70	2.9	4.88	29.28	34
70 × 70	3	5.1	30.6	33
70 × 70	4	6.73	40.38	25
70 × 70	5	8.32	49.92	20
70 × 70	6	10	60	17
75 × 75	2	3.76	22.56	44
75 × 75	3	5.57	33.42	30
80 × 80	1.5	3.08	18.48	54
80 × 80	1.9	3.83	22.98	44
80 × 80	2	4.01	24.06	42
80 × 80	2.4	4.79	28.74	35
80 × 80	2.5	5	30	33
80 × 80	2.9	5.82	34.92	29
80 × 80	3	6.1	36.6	27
80 × 80	4	8.06	48.36	21
80 × 80	5	10	60	17
80 × 80	6	12.07	72.42	14
90 × 90	2	5.53	33.16	30
90 × 90	2.4	6.6	39.61	25
90 × 90	2.5	6.87	41.21	24
90 × 90	2.9	7.93	47.59	21
90 × 90	3	8.2	49.17	20
90 × 90	4	10.8	64.81	15
90 × 90	5	13.35	80.07	12
90 × 90	6	15.83	94.96	11
100 × 100	2	5.05	30.3	33
100 × 100	2.4	6.06	36.36	28
100 × 100	2.5	6.33	37.98	26
100 × 100	2.9	7.35	44.1	23
100 × 100	3	7.67	46.02	22
100 × 100	4	10.16	60.96	16
100 × 100	5	12.6	75.6	13
100 × 100	6	15.36	92.16	11
100 × 100	8	20.46	122.76	8
110 × 110	2.5	8.44	50.63	20
110 × 110	3	10.08	60.47	17
110 × 110	4	13.31	79.88	13
110 × 110	5	16.49	98.91	10
110 × 110	6	19.59	117.56	9
110 × 110	8	25.62	153.73	7
120 × 120	2.5	7.68	46.08	22
120 × 120	3	9.29	55.74	18
120 × 120	4	12.36	74.16	13
120 × 120	5	15.42	92.52	11
120 × 120	6	18.79	112.74	9
120 × 120	8	25.49	152.94	7
140 × 140	3	10.91	65.46	15
140 × 140	4	14.54	87.24	11
140 × 140	5	18.14	108.84	9
140 × 140	6	22.18	133.08	8
140 × 140	8	30.16	180.96	6
150 × 150	3	11.68	70.08	14
150 × 150	4	15.57	93.42	11
150 × 150	5	19.44	116.64	9
150 × 150	6	23.75	142.5	7
150 × 150	8	32.32	193.92	5
175 × 175	3	13.71	82.26	12
175 × 175	4	18.28	109.68	9
175 × 175	5	22.83	136.98	7
175 × 175	6	27.94	167.64	6
175 × 175	8	38.07	228.42	4
200 × 200	4	21	126	8
200 × 200	5	26.24	157.44	6
200 × 200	6	32.13	192.78	5
200 × 200	8	43.83	262.98	4
200 × 200	10	56.94	341.64	3
250 × 250	5	33.07	198.42	5
250 × 250	6	40.51	243.06	4
250 × 250	8	55.35	332.1	3
250 × 250	10	74.07	444.42	2

Nominal mass per EN 10219-2 with corner radii; 6 m standard length, 12 m on request.

Rectangular sizes — see 5–10 mm walls

Full rectangular list; thick-wall rows from 100×150 upward.

Filter rows

Rectangular hollow sections (RHS) — weight per metre, EN 10219
Size (mm)	Wall (mm)	kg/m	kg per 6 m bar	Bars per ton
10 × 20	1.5	0.64	3.84	260
10 × 20	2	0.82	4.92	203
10 × 30	1.5	0.85	5.1	196
10 × 30	1.9	1.08	6.48	154
10 × 30	2	1.09	6.54	153
10 × 30	2.5	1.37	8.24	121
10 × 40	1.5	1.11	6.64	151
10 × 40	2	1.44	8.66	115
10 × 40	2.5	1.77	10.6	94
10 × 50	1.5	1.34	8.05	124
10 × 50	2	1.76	10.55	95
15 × 25	1.5	0.85	5.1	196
15 × 25	1.9	1.08	6.48	154
15 × 25	2	1.09	6.54	153
15 × 25	2.5	1.37	8.24	121
15 × 30	1.5	0.99	5.93	169
15 × 30	2	1.29	7.72	130
15 × 40	1.5	1.23	7.35	136
15 × 40	2	1.6	9.61	104
15 × 45	1.5	1.34	8.05	124
15 × 45	2	1.76	10.55	95
20 × 30	1.5	1.07	6.42	156
20 × 30	1.9	1.38	8.27	121
20 × 30	2	1.38	8.28	121
20 × 30	2.5	1.73	10.38	96
20 × 30	3	2.05	12.3	81
20 × 35	1.5	1.23	7.35	136
20 × 35	2	1.6	9.61	104
20 × 40	1.5	1.34	8.05	124
20 × 40	1.9	1.68	10.06	99
20 × 40	2	1.76	10.55	95
20 × 40	2.5	2.16	12.95	77
20 × 40	3	2.54	15.26	66
20 × 40	4	3.27	19.6	51
20 × 50	1.5	1.58	9.47	106
20 × 50	2	2.07	12.43	80
20 × 50	2.5	2.55	15.31	65
20 × 50	3	3.01	18.08	55
20 × 60	1.5	1.81	10.88	92
20 × 60	2	2.39	14.32	70
20 × 80	1.5	2.28	13.7	73
20 × 80	2	3.01	18.08	55
20 × 80	2.5	3.73	22.37	45
20 × 80	3	4.43	26.56	38
20 × 100	2	3.64	21.85	46
25 × 35	1.5	1.34	8.05	124
25 × 35	2	1.76	10.55	95
25 × 40	1.5	1.46	8.76	114
25 × 40	2	1.92	11.49	87
25 × 40	2.5	2.36	14.13	71
25 × 40	3	2.78	16.67	60
25 × 50	1.5	1.7	10.18	98
25 × 50	2	2.2	13.19	76
25 × 50	2.5	2.75	16.49	61
25 × 50	3	3.25	19.5	51
30 × 40	1.5	1.49	8.94	112
30 × 40	1.9	1.98	11.85	84
30 × 40	2	1.93	11.58	86
30 × 40	2.5	2.39	14.34	70
30 × 40	3	2.83	16.98	59
30 × 50	1.5	1.81	10.88	92
30 × 50	1.9	2.27	13.64	73
30 × 50	2	2.36	14.13	71
30 × 50	2.4	2.83	17	59
30 × 50	2.5	2.9	17.42	57
30 × 50	2.9	3.38	20.27	49
30 × 50	3	3.49	20.91	48
30 × 50	4	4.52	27.13	37
30 × 50	5	5.5	32.97	30
30 × 60	1.5	2.05	12.29	81
30 × 60	2	2.67	16.01	62
30 × 60	2.5	3.34	20.02	50
30 × 60	3	3.95	23.68	42
30 × 60	4	5.15	30.9	32
30 × 60	5	6.28	37.68	27
30 × 70	1.5	2.28	13.7	73
30 × 70	1.9	2.87	17.22	58
30 × 70	2	3.01	18.08	55
30 × 70	2.5	3.73	22.37	45
30 × 70	3	4.43	26.56	38
30 × 70	4	5.78	34.67	29
30 × 80	1.5	2.52	15.12	66
30 × 80	2	3.33	19.97	50
30 × 80	2.5	4.12	24.73	40
30 × 80	3	4.9	29.39	34
30 × 80	4	6.41	38.44	26
30 × 80	5	7.85	47.1	21
30 × 90	2	3.64	21.85	46
30 × 90	2.5	4.51	27.08	37
30 × 90	3	5.37	32.21	31
30 × 100	1.5	2.99	17.95	56
30 × 100	2	3.96	23.74	42
30 × 100	2.5	4.91	29.44	34
30 × 100	3	5.84	35.04	29
30 × 100	4	7.66	45.97	22
30 × 100	5	9.42	56.52	18
30 × 110	1.5	3.23	19.36	52
40 × 50	1.5	1.91	11.46	87
40 × 50	2	2.5	15	67
40 × 50	2.5	3.09	18.54	54
40 × 50	3	3.66	21.96	46
40 × 50	4	5.15	30.9	32
40 × 50	5	6.28	37.68	27
40 × 60	1.5	1.83	10.98	91
40 × 60	1.9	2.87	17.22	58
40 × 60	2	2.39	14.34	70
40 × 60	2.4	3.59	21.52	46
40 × 60	2.5	2.95	17.7	56
40 × 60	2.9	4.29	25.73	39
40 × 60	3	3.55	21.3	47
40 × 60	4	5.77	34.64	29
40 × 60	5	7.07	42.39	24
40 × 70	1.5	2.52	15.12	66
40 × 70	2	3.33	19.97	50
40 × 70	2.5	4.12	24.73	40
40 × 70	3	4.9	29.39	34
40 × 70	4	6.41	38.44	26
40 × 70	5	7.85	47.1	21
40 × 80	1.5	2.76	16.53	60
40 × 80	1.9	3.47	20.8	48
40 × 80	2	3.61	21.66	46
40 × 80	2.4	4.34	26.05	38
40 × 80	2.5	4.51	27.08	37
40 × 80	2.9	5.2	31.2	32
40 × 80	3	5.32	31.91	31
40 × 80	4	6.98	41.9	24
40 × 80	5	8.64	51.81	19
40 × 100	1.5	3.23	19.36	52
40 × 100	1.9	4.06	24.38	41
40 × 100	2	4.27	25.62	39
40 × 100	2.4	5.09	30.56	33
40 × 100	2.5	5.3	31.79	31
40 × 100	2.9	6.11	36.66	27
40 × 100	3	6.31	37.87	26
40 × 100	4	8.29	49.74	20
40 × 100	5	10.21	61.23	16
40 × 100	6	12.06	72.35	14
40 × 120	2	4.9	29.39	34
40 × 120	2.5	6.08	36.5	27
40 × 120	3	7.25	43.52	23
40 × 120	4	9.55	57.28	17
40 × 120	5	11.78	70.65	14
40 × 130	2.5	6.48	38.86	26
40 × 130	3	7.72	46.34	22
40 × 130	4	10.17	61.04	16
40 × 130	5	12.56	75.36	13
40 × 140	3	8.2	49.17	20
40 × 140	4	10.8	64.81	15
40 × 140	5	13.35	80.07	12
50 × 60	1.5	2.52	15.12	66
50 × 60	2	3.33	19.97	50
50 × 60	2.5	4.12	24.73	40
50 × 60	3	4.9	29.39	34
50 × 60	4	6.41	38.44	26
50 × 60	5	7.85	47.1	21
50 × 70	2	3.64	21.85	46
50 × 70	2.5	4.51	27.08	37
50 × 70	3	5.37	32.21	31
50 × 70	4	7.03	42.2	24
50 × 70	5	8.64	51.81	19
50 × 80	1.5	2.73	16.38	61
50 × 80	2	3.55	21.3	47
50 × 80	2.5	4.37	26.22	38
50 × 80	3	5.18	31.08	32
50 × 80	4	6.79	40.74	25
50 × 80	5	9.42	56.52	18
50 × 90	1.5	3.23	19.36	52
50 × 90	1.9	4.06	24.38	41
50 × 90	2	4.27	25.62	39
50 × 90	2.4	5.09	30.56	33
50 × 90	2.5	5.3	31.79	31
50 × 90	2.9	6.11	36.66	27
50 × 90	3	6.31	37.87	26
50 × 90	4	8.29	49.74	20
50 × 90	5	10.21	61.23	16
50 × 90	6	12.06	72.35	14
50 × 100	1.5	3.46	20.77	48
50 × 100	1.9	4.36	26.17	38
50 × 100	2	4.58	27.5	36
50 × 100	2.4	5.47	32.83	30
50 × 100	2.5	5.69	34.15	29
50 × 100	2.9	6.57	39.39	25
50 × 100	3	6.87	41.21	24
50 × 100	4	9.02	54.14	18
50 × 100	5	10.99	65.94	15
50 × 100	6	13	78	13
50 × 120	2.5	6.48	38.86	26
50 × 120	3	7.72	46.34	22
50 × 120	4	10.17	61.04	16
50 × 120	5	12.56	75.36	13
50 × 150	2	6.15	36.92	27
50 × 150	2.5	7.65	45.92	22
50 × 150	3	9.14	54.82	18
50 × 150	4	12.06	72.35	14
50 × 150	5	14.92	89.49	11
50 × 150	6	17.71	106.26	9
60 × 80	1.5	2.82	16.92	59
60 × 80	1.9	4.06	24.38	41
60 × 80	2	3.7	22.2	45
60 × 80	2.4	5.09	30.56	33
60 × 80	2.5	4.58	27.48	36
60 × 80	2.9	6.11	36.66	27
60 × 80	3	5.41	32.46	31
60 × 80	4	7.06	42.36	24
60 × 80	5	10.21	61.23	16
60 × 80	6	12.06	72.35	14
60 × 100	1.5	3.7	22.18	45
60 × 100	1.9	4.66	27.95	36
60 × 100	2	4.9	29.39	34
60 × 100	2.4	5.85	35.09	28
60 × 100	2.5	6.08	36.5	27
60 × 100	2.9	7.02	42.13	24
60 × 100	3	7.24	43.43	23
60 × 100	4	9.52	57.14	17
60 × 100	5	11.78	70.65	14
60 × 100	6	13.94	83.65	12
60 × 120	2	5.53	33.16	30
60 × 120	2.4	6.6	39.61	25
60 × 120	2.5	6.87	41.21	24
60 × 120	2.9	7.93	47.59	21
60 × 120	3	8.2	49.17	20
60 × 120	4	11.03	66.19	15
60 × 120	5	13.68	82.08	12
60 × 120	6	15.83	94.96	11
60 × 140	2.5	7.65	45.92	22
60 × 140	3	9.14	54.82	18
60 × 140	4	12.06	72.35	14
60 × 140	5	14.92	89.49	11
60 × 140	6	17.71	106.26	9
70 × 100	2.5	6.48	38.86	26
70 × 100	3	7.72	46.34	22
70 × 100	4	10.17	61.04	16
70 × 100	5	12.56	75.36	13
70 × 110	3	8.2	49.17	20
70 × 110	4	10.8	64.81	15
70 × 110	5	13.35	80.07	12
70 × 120	2	5.84	35.04	29
70 × 120	2.5	7.26	43.57	23
70 × 120	3	8.67	52	19
80 × 100	2	4.51	27.06	37
80 × 100	2.4	6.6	39.61	25
80 × 100	2.5	5.59	33.54	30
80 × 100	2.9	7.93	47.59	21
80 × 100	3	6.61	39.66	25
80 × 100	4	8.71	52.26	19
80 × 100	5	13.35	80.07	12
80 × 100	6	15.83	94.96	11
80 × 120	2	4.97	29.82	34
80 × 120	2.4	7.36	44.13	23
80 × 120	2.5	6.19	37.14	27
80 × 120	2.9	8.84	53.05	19
80 × 120	3	7.37	44.22	23
80 × 120	4	9.71	58.26	17
80 × 120	5	14.92	89.49	11
80 × 120	6	17.71	106.26	9
80 × 120	8	23.11	138.66	7
80 × 140	2.5	8.44	50.63	20
80 × 140	3	10.08	60.47	17
80 × 140	4	13.31	79.88	13
80 × 140	5	16.49	98.91	10
80 × 140	6	19.59	117.56	9
80 × 140	8	25.62	153.73	7
80 × 160	2.5	9.22	55.34	18
80 × 160	3	11.02	66.13	15
80 × 160	4	14.57	87.42	11
80 × 160	5	18.06	108.33	9
80 × 160	6	21.48	128.87	8
80 × 160	8	28.13	168.8	6
80 × 200	3	12.91	77.43	13
80 × 200	4	17.08	102.49	10
80 × 200	5	21.2	127.17	8
80 × 200	6	25.25	151.48	7
100 × 120	2.5	8.44	50.63	20
100 × 120	3	10.08	60.47	17
100 × 120	4	13.31	79.88	13
100 × 120	5	16.49	98.91	10
100 × 120	6	19.59	117.56	9
100 × 120	8	25.62	153.73	7
100 × 150	3	9.3	55.8	18
100 × 150	4	12.3	73.8	14
100 × 150	5	19.31	115.83	9
100 × 150	6	22.42	134.52	7
100 × 150	8	29.39	176.34	6
100 × 180	3	12.91	77.43	13
100 × 180	4	17.08	102.49	10
100 × 180	5	21.2	127.17	8
100 × 180	6	25.25	151.48	7
100 × 200	3	11.68	70.08	14
100 × 200	4	15.57	93.42	11
100 × 200	5	22.77	136.59	7
100 × 200	6	27.13	162.78	6
100 × 200	8	35.67	214.02	5
150 × 200	3	13.71	82.26	12
150 × 200	4	18.28	109.68	9
150 × 200	5	26.69	160.14	6
150 × 200	6	31.84	191.04	5
150 × 200	8	41.95	251.7	4
150 × 250	4	24.62	147.71	7
150 × 250	5	30.62	183.69	5
150 × 250	6	36.55	219.3	5
150 × 250	8	48.23	289.38	3
150 × 250	10	59.66	357.96	3
200 × 300	5	33.07	198.42	5
200 × 300	6	45.97	275.82	4
200 × 300	8	60.79	364.74	3
200 × 300	10	75.36	452.16	2

Nominal mass per EN 10219-2; 6 m standard length, 12 m on request.

Grades, standards and tolerances

Thick-wall hollow sections — steel grades and standards
Grade / standard	Yield (MPa)	Note
S355J2H — EN 10219-1	≥ 355	the structural grade for thick-wall sections; 27 J at −20 °C
S235JRH	≥ 235	stock in 5–6 mm walls
S275J0H	≥ 275	to order
S355J2H hot-finished (EN 10210)	≥ 355	sharper corners, no cold-work stress; to order, +20 %
ASTM A500 Gr. C	≥ 345	ASTM projects

EN 10219-2 tolerances; corner radius 2.0–3.0 t on thick walls; strip certificates 3.1; sections CE-marked for EN 1090 fabrication.

Section properties of the common thick-wall sizes

Area, moment of inertia and section modulus (EN 10219-2, cold-formed corner radii)
Size (mm)	kg/m	A (cm²)	I (cm⁴)	W (cm³)	i (cm)
100 × 100 × 5	14.7	18.7	271	54.2	3.81
100 × 100 × 6	17.4	22.2	311	62.3	3.74
120 × 120 × 6	21.2	27.0	562	93.7	4.56
150 × 150 × 6	26.8	34.2	1 160	154	5.82
150 × 150 × 8	35.1	44.7	1 470	196	5.73
200 × 200 × 8	47.7	60.7	3 660	366	7.76
200 × 200 × 10	58.8	74.9	4 390	439	7.66
250 × 250 × 10	74.5	94.9	8 940	715	9.70
100 × 200 × 6	26.8	34.2	1 700 / 570	170 / 114	7.05 / 4.08
150 × 250 × 8	47.7	60.7	4 990 / 2 220	399 / 296	9.07 / 6.05
200 × 300 × 10	74.5	94.9	11 500 / 6 100	767 / 610	11.0 / 8.02

Rectangular: values about the strong / weak axis. Design to EN 1993-1-1 with the cold-formed section class; buckling curve c.

Lengths and stock

Length 6 and 12 m (+50/−0); cut lengths ±3 mm. Stock at Dilovası: 100×100×5, 100×100×6, 120×120×5, 150×150×6 in S235JRH and S355J2H; 100×200×5/6, 120×200×6; 8 and 10 mm walls and 200 mm+ sections from our mill or partner mills in 2–3 weeks. EN 10219-2 tolerances; ends square-cut for columns on request.

Cutting, welding, plates and galvanizing

Square cutting for columns, mitring for frames, plasma/laser copes; welding of base plates, cap plates, cleats and splices under EN 1090-2 EXC2/EXC3 with low-hydrogen consumables (S355J2H: preheat above 8 mm on restrained joints); hot-dip galvanizing to EN ISO 1461 with vent/drain holes; blast-and-prime. Columns delivered as complete assemblies on request.

Where it is used

Columns of warehouses, mezzanines and multi-storey light buildings
Crane-runway posts and gantry legs
Truss chords and large space-frame members
Machine bases, press frames and heavy equipment skids
Masts, sign gantries and lighting towers
Bridge railings, bollards and heavy guard structures

Thick-wall hollow section vs H-beam column

For a column of given capacity a square hollow section is 15–30 % lighter than an HEA/HEB because its radius of gyration is the same in both directions and its buckling curve is favourable; it is also cleaner to clad and paint. The H-beam wins on connection simplicity (bolted beams to flanges) and on price per ton. Compare with HEA beams and HEB beams; for the grade see S355J2H hollow sections.

Price

Thick-wall sections are priced per ton on the heavy-tube list; the bands below separate 5–6 mm S235JRH stock from 8–10 mm S355J2H. Plates, cutting and galvanizing per piece.

Thick-wall SHS/RHS 5–6 mm · S235JRH770 – 1 200USD/MT · FOB Istanbul

Thick-wall 8–10 mm · S355J2H850 – 1 280USD/MT · FOB Istanbul

Bands from our weekly export list (September 2026), FOB Istanbul, full-container quantities, excluding freight and certificates. Firm price per project on RFQ within one working day.

Export and packing

Packing for Thick-wall hollow sections: bundles of one size (0.8–2 t), four steel straps, corner boards, a tag with size × wall × length, grade, heat and count; coated sections are separated with paper. 6 m bundles fill a 40' HC at 24–25 t; 12 m on flat-rack or breakbulk from Derince. Tariff 7306.61.

Term	Detail
MOQ	10 t
Incoterms	FOB Istanbul · CIF / CFR Gulf, Africa · DAP EU, Balkans, Iraq, Caucasus · DAP Aktau
Lead time	Stock 100×100×5 – 150×150×6: 3–7 working days; 8–10 mm and 200 mm+ 2–3 weeks
Packing	Bundles 1.5–3 t or loose above 200 mm, strapped, tagged
Container / truck	40' HC ≈ 24–25 t of 6 m; 12 m flat-rack / breakbulk
Documents	Invoice, packing list, EN 10204 3.1, CE DoP (EN 10219-1), certificate of origin; SASO / SONCAP / PVoC on request
Payment	30% advance, balance against B/L copy; L/C at sight above 100 t

Certificates

Thick-wall hollow sections carries the EN 10204 3.1 certificate of the strip it was rolled from (heat, analysis, tensile) plus our mill's dimensional and weld-test record; CE marking under EN 10219-1 and 3.2 witnessing are available per lot.

How to order

Send size × wall × length, grade, quantity, end preparation (square-cut, base plates), coating and the design standard (EN 10219 or EN 10210 hot-finished); column schedules welcome.

Standards

EN 10219-1/2 — cold-formed structural hollow sections
EN 10210 — hot-finished (on request)
Grades S235JRH, S275J0H, S355J2H
EN 10204 3.1; CE marking

Grades

Grade data sheets (chemistry, mechanicals, equivalents) are on our reference site: S355J2H · S235JRH · S275J0H

Frequently asked questions

What is a thick-wall hollow section?

A square or rectangular hollow section with 5–10 mm wall in sizes from 100×100 to 250×250 / 200×300 mm, cold-formed to EN 10219 in S235JRH or S355J2H, used for columns, crane posts and heavy frames.

How much does 150×150×6 SHS weigh?

26.8 kg/m — 161 kg per 6 m bar, 322 kg per 12 m; 200×200×8 is 47.7 kg/m.

Is cold-formed thick-wall tube acceptable for structures?

Yes — EN 10219 sections are CE-marked structural products designed to EN 1993-1-1; hot-finished EN 10210 is required only where the specification says so (sharper corners, no cold-work stress).

What grade for hollow-section columns?

S355J2H (27 J at −20 °C) is the standard for columns and crane structures; S235JRH for lightly loaded posts.

What is the maximum wall you make?

8 mm on our own mill; 10 mm and above from partner mills in 2–3 weeks.
