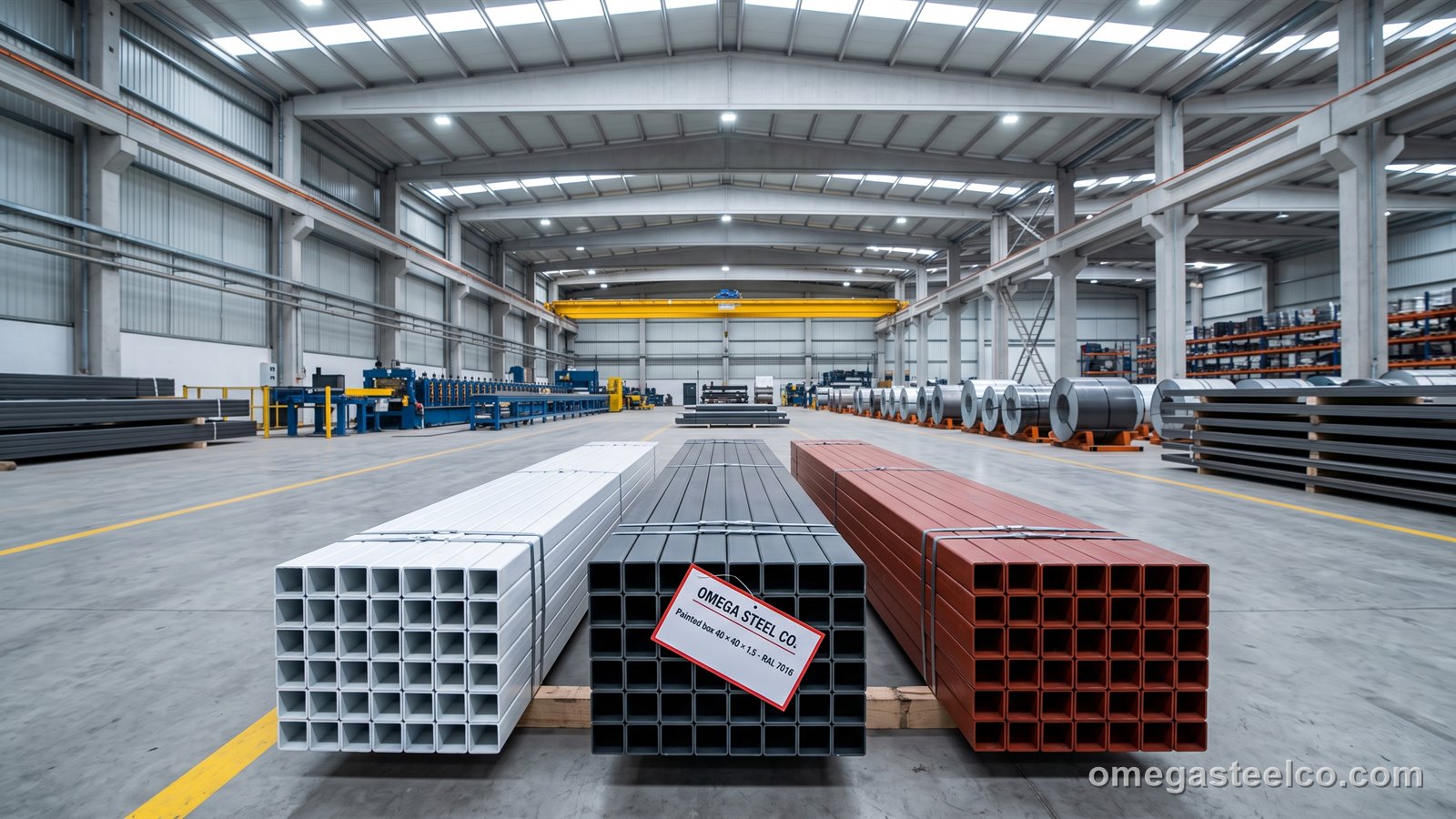

Pre-Painted Box Section Manufacturer Turkey

What is Pre-painted box sections?

Pre-painted box section is tube rolled from strip that already carries its final colour: galvanized strip (DX51D+Z100–Z140) coil-coated with a polyester top-coat to EN 10169 — the same PPGI family as coloured roofing sheet — slit, roll-formed and HF-welded with the seam repaired in the same colour in-line. The tube leaves the mill white, anthracite, red or black, straight and dry, ready to cut and bolt; the zinc under the paint gives it a corrosion life that a plain painted tube never has. It suits every product where parts are cut to length and assembled without much welding — fence and gate systems, railings, pergolas, greenhouses, racking, display frames, modular cabins — and it removes the paint shop from the fabricator's cost. The limits are welding (paint and zinc burn back and must be repaired) and cut ends (bare, touched up with matching spray). A primed variant, rolled from strip with an anti-rust primer instead of a colour coat, serves frames that will be top-coated after fabrication. Our Dilovası mill rolls 15×15 to 100×100 mm in 1.2–3 mm walls in the four standard RAL colours and other colours on order.

Pre-painted box section sizes and weight per metre

Our painted mill list (size × wall; each available in the four standard colours); kg/m includes zinc and paint.

Filter rows

Pre-painted box sections — weight per metre
Size (mm)	Wall (mm)	kg/m	kg per 6 m bar
10 × 20	1.2	0.52	3.12
10 × 20	1.5	0.64	3.84
10 × 20	2	0.82	4.92
10 × 30	1.2	0.69	4.14
10 × 30	1.4	0.82	4.91
10 × 30	1.5	0.85	5.1
10 × 30	1.9	1.08	6.48
10 × 30	2	1.09	6.54
10 × 30	2.5	1.37	8.24
10 × 40	1.2	0.9	5.38
10 × 40	1.5	1.11	6.64
10 × 40	2	1.44	8.66
10 × 40	2.5	1.77	10.6
10 × 50	1.5	1.34	8.05
10 × 50	2	1.76	10.55
15 × 15	1.2	0.52	3.12
15 × 15	1.5	0.64	3.84
15 × 15	2	0.82	4.92
15 × 25	1.2	0.69	4.14
15 × 25	1.4	0.82	4.91
15 × 25	1.5	0.85	5.1
15 × 25	1.9	1.08	6.48
15 × 25	2	1.09	6.54
15 × 25	2.5	1.37	8.24
15 × 30	1.5	0.99	5.93
15 × 30	2	1.29	7.72
15 × 40	1.5	1.23	7.35
15 × 40	2	1.6	9.61
15 × 45	1.5	1.34	8.05
15 × 45	2	1.76	10.55
16 × 16	1.5	0.68	4.1
20 × 20	1.2	0.69	4.14
20 × 20	1.4	0.8	4.8
20 × 20	1.5	0.85	5.1
20 × 20	1.9	1.04	6.24
20 × 20	2	1.09	6.54
20 × 20	2.5	1.37	8.22
20 × 30	1.2	0.87	5.22
20 × 30	1.4	1.04	6.22
20 × 30	1.5	1.07	6.42
20 × 30	1.9	1.38	8.27
20 × 30	2	1.38	8.28
20 × 30	2.5	1.73	10.38
20 × 30	3	2.05	12.3
20 × 35	1.5	1.23	7.35
20 × 35	2	1.6	9.61
20 × 40	1.2	1.09	6.51
20 × 40	1.4	1.26	7.54
20 × 40	1.5	1.34	8.05
20 × 40	1.9	1.68	10.06
20 × 40	2	1.76	10.55
20 × 40	2.5	2.16	12.95
20 × 40	3	2.54	15.26
20 × 40	4	3.27	19.6
20 × 50	1.5	1.58	9.47
20 × 50	2	2.07	12.43
20 × 50	2.5	2.55	15.31
20 × 50	3	3.01	18.08
20 × 60	1.5	1.81	10.88
20 × 60	2	2.39	14.32
20 × 80	1.5	2.28	13.7
20 × 80	2	3.01	18.08
20 × 80	2.5	3.73	22.37
20 × 80	3	4.43	26.56
20 × 100	2	3.64	21.85
25 × 25	1.2	0.87	5.22
25 × 25	1.4	1.01	6.06
25 × 25	1.5	1.07	6.42
25 × 25	1.9	1.32	7.92
25 × 25	2	1.38	8.28
25 × 25	2.5	1.73	10.38
25 × 25	3	2.05	12.3
25 × 35	1.5	1.34	8.05
25 × 35	2	1.76	10.55
25 × 40	1.5	1.46	8.76
25 × 40	2	1.92	11.49
25 × 40	2.5	2.36	14.13
25 × 40	3	2.78	16.67
25 × 50	1.5	1.7	10.18
25 × 50	2	2.2	13.19
25 × 50	2.5	2.75	16.49
25 × 50	3	3.25	19.5
30 × 30	1.2	1.04	6.24
30 × 30	1.4	1.21	7.26
30 × 30	1.5	1.26	7.56
30 × 30	1.9	1.56	9.36
30 × 30	2	1.64	9.84
30 × 30	2.5	2.06	12.36
30 × 30	3	2.45	14.7
30 × 30	4	3.18	19.08
30 × 40	1.2	1.21	7.26
30 × 40	1.4	1.48	8.86
30 × 40	1.5	1.49	8.94
30 × 40	1.9	1.98	11.85
30 × 40	2	1.93	11.58
30 × 40	2.5	2.39	14.34
30 × 40	3	2.83	16.98
30 × 50	1.2	1.46	8.77
30 × 50	1.4	1.7	10.18
30 × 50	1.5	1.81	10.88
30 × 50	1.9	2.27	13.64
30 × 50	2	2.36	14.13
30 × 50	2.4	2.83	17
30 × 50	2.5	2.9	17.42
30 × 50	2.9	3.38	20.27
30 × 50	3	3.49	20.91
30 × 50	4	4.52	27.13
30 × 50	5	5.5	32.97
30 × 60	1.5	2.05	12.29
30 × 60	2	2.67	16.01
30 × 60	2.5	3.34	20.02
30 × 60	3	3.95	23.68
30 × 60	4	5.15	30.9
30 × 60	5	6.28	37.68
30 × 70	1.2	1.84	11.03
30 × 70	1.5	2.28	13.7
30 × 70	1.9	2.87	17.22
30 × 70	2	3.01	18.08
30 × 70	2.5	3.73	22.37
30 × 70	3	4.43	26.56
30 × 70	4	5.78	34.67
30 × 80	1.5	2.52	15.12
30 × 80	2	3.33	19.97
30 × 80	2.5	4.12	24.73
30 × 80	3	4.9	29.39
30 × 80	4	6.41	38.44
30 × 80	5	7.85	47.1
30 × 90	2	3.64	21.85
30 × 90	2.5	4.51	27.08
30 × 90	3	5.37	32.21
30 × 100	1.5	2.99	17.95
30 × 100	2	3.96	23.74
30 × 100	2.5	4.91	29.44
30 × 100	3	5.84	35.04
30 × 100	4	7.66	45.97
30 × 100	5	9.42	56.52
30 × 110	1.5	3.23	19.36
35 × 35	1.5	1.5	9
35 × 35	2	1.95	11.7
35 × 35	2.5	2.39	14.34
35 × 35	3	2.82	16.92
40 × 40	1.2	1.38	8.28
40 × 40	1.4	1.61	9.66
40 × 40	1.5	1.67	10.02
40 × 40	1.9	2.08	12.48
40 × 40	2	2.18	13.08
40 × 40	2.4	2.58	15.48
40 × 40	2.5	2.69	16.14
40 × 40	2.9	3.09	18.54
40 × 40	3	3.22	19.32
40 × 40	4	4.19	25.14
40 × 40	5	5.13	30.78
40 × 50	1.5	1.91	11.46
40 × 50	2	2.5	15
40 × 50	2.5	3.09	18.54
40 × 50	3	3.66	21.96
40 × 50	4	5.15	30.9
40 × 50	5	6.28	37.68
40 × 60	1.2	1.72	10.32
40 × 60	1.4	2.14	12.82
40 × 60	1.5	1.83	10.98
40 × 60	1.9	2.87	17.22
40 × 60	2	2.39	14.34
40 × 60	2.4	3.59	21.52
40 × 60	2.5	2.95	17.7
40 × 60	2.9	4.29	25.73
40 × 60	3	3.55	21.3
40 × 60	4	5.77	34.64
40 × 60	5	7.07	42.39
40 × 70	1.5	2.52	15.12
40 × 70	2	3.33	19.97
40 × 70	2.5	4.12	24.73
40 × 70	3	4.9	29.39
40 × 70	4	6.41	38.44
40 × 70	5	7.85	47.1
40 × 80	1.2	2.22	13.3
40 × 80	1.4	2.58	15.46
40 × 80	1.5	2.76	16.53
40 × 80	1.9	3.47	20.8
40 × 80	2	3.61	21.66
40 × 80	2.4	4.34	26.05
40 × 80	2.5	4.51	27.08
40 × 80	2.9	5.2	31.2
40 × 80	3	5.32	31.91
40 × 80	4	6.98	41.9
40 × 80	5	8.64	51.81
40 × 100	1.5	3.23	19.36
40 × 100	1.9	4.06	24.38
40 × 100	2	4.27	25.62
40 × 100	2.4	5.09	30.56
40 × 100	2.5	5.3	31.79
40 × 100	2.9	6.11	36.66
40 × 100	3	6.31	37.87
40 × 100	4	8.29	49.74
40 × 100	5	10.21	61.23
40 × 100	6	12.06	72.35
40 × 120	2	4.9	29.39
40 × 120	2.5	6.08	36.5
40 × 120	3	7.25	43.52
40 × 120	4	9.55	57.28
40 × 120	5	11.78	70.65
40 × 130	2.5	6.48	38.86
40 × 130	3	7.72	46.34
40 × 130	4	10.17	61.04
40 × 130	5	12.56	75.36
40 × 140	3	8.2	49.17
40 × 140	4	10.8	64.81
40 × 140	5	13.35	80.07
45 × 45	1.5	1.91	11.46
45 × 45	2	2.5	15
45 × 45	2.5	3.09	18.54
45 × 45	3	3.66	21.96
45 × 45	4	4.77	28.62
45 × 45	5	5.85	35.1
50 × 50	1.2	1.72	10.32
50 × 50	1.4	1.76	10.56
50 × 50	1.5	1.83	10.98
50 × 50	1.9	2.28	13.68
50 × 50	2	2.39	14.34
50 × 50	2.4	2.83	16.98
50 × 50	2.5	2.95	17.7
50 × 50	2.9	3.4	20.4
50 × 50	3	3.55	21.3
50 × 50	4	4.66	27.96
50 × 50	5	5.74	34.44
50 × 60	1.5	2.52	15.12
50 × 60	2	3.33	19.97
50 × 60	2.5	4.12	24.73
50 × 60	3	4.9	29.39
50 × 60	4	6.41	38.44
50 × 60	5	7.85	47.1
50 × 70	2	3.64	21.85
50 × 70	2.5	4.51	27.08
50 × 70	3	5.37	32.21
50 × 70	4	7.03	42.2
50 × 70	5	8.64	51.81
50 × 80	1.5	2.73	16.38
50 × 80	2	3.55	21.3
50 × 80	2.5	4.37	26.22
50 × 80	3	5.18	31.08
50 × 80	4	6.79	40.74
50 × 80	5	9.42	56.52
50 × 90	1.5	3.23	19.36
50 × 90	1.9	4.06	24.38
50 × 90	2	4.27	25.62
50 × 90	2.4	5.09	30.56
50 × 90	2.5	5.3	31.79
50 × 90	2.9	6.11	36.66
50 × 90	3	6.31	37.87
50 × 90	4	8.29	49.74
50 × 90	5	10.21	61.23
50 × 90	6	12.06	72.35
50 × 100	1.5	3.46	20.77
50 × 100	1.9	4.36	26.17
50 × 100	2	4.58	27.5
50 × 100	2.4	5.47	32.83
50 × 100	2.5	5.69	34.15
50 × 100	2.9	6.57	39.39
50 × 100	3	6.87	41.21
50 × 100	4	9.02	54.14
50 × 100	5	10.99	65.94
50 × 100	6	13	78
50 × 120	2.5	6.48	38.86
50 × 120	3	7.72	46.34
50 × 120	4	10.17	61.04
50 × 120	5	12.56	75.36
50 × 150	2	6.15	36.92
50 × 150	2.5	7.65	45.92
50 × 150	3	9.14	54.82
50 × 150	4	12.06	72.35
50 × 150	5	14.92	89.49
50 × 150	6	17.71	106.26
60 × 60	1.2	2.07	12.42
60 × 60	1.4	2.17	13.02
60 × 60	1.5	2.25	13.5
60 × 60	1.9	2.78	16.68
60 × 60	2	2.91	17.46
60 × 60	2.4	3.43	20.58
60 × 60	2.5	3.58	21.48
60 × 60	2.9	4.17	25.02
60 × 60	3	4.36	26.16
60 × 60	4	5.73	34.38
60 × 60	5	7.07	42.42
60 × 80	1.5	2.82	16.92
60 × 80	1.9	4.06	24.38
60 × 80	2	3.7	22.2
60 × 80	2.4	5.09	30.56
60 × 80	2.5	4.58	27.48
60 × 80	2.9	6.11	36.66
60 × 80	3	5.41	32.46
60 × 80	4	7.06	42.36
60 × 80	5	10.21	61.23
60 × 80	6	12.06	72.35
60 × 100	1.5	3.7	22.18
60 × 100	1.9	4.66	27.95
60 × 100	2	4.9	29.39
60 × 100	2.4	5.85	35.09
60 × 100	2.5	6.08	36.5
60 × 100	2.9	7.02	42.13
60 × 100	3	7.24	43.43
60 × 100	4	9.52	57.14
60 × 100	5	11.78	70.65
60 × 100	6	13.94	83.65
60 × 120	2	5.53	33.16
60 × 120	2.4	6.6	39.61
60 × 120	2.5	6.87	41.21
60 × 120	2.9	7.93	47.59
60 × 120	3	8.2	49.17
60 × 120	4	11.03	66.19
60 × 120	5	13.68	82.08
60 × 120	6	15.83	94.96
60 × 140	2.5	7.65	45.92
60 × 140	3	9.14	54.82
60 × 140	4	12.06	72.35
60 × 140	5	14.92	89.49
60 × 140	6	17.71	106.26
70 × 70	1.5	2.67	16.02
70 × 70	1.9	3.35	20.1
70 × 70	2	3.5	21
70 × 70	2.4	4	24
70 × 70	2.5	4.17	25.02
70 × 70	2.9	4.88	29.28
70 × 70	3	5.1	30.6
70 × 70	4	6.73	40.38
70 × 70	5	8.32	49.92
70 × 70	6	10	60
70 × 100	2.5	6.48	38.86
70 × 100	3	7.72	46.34
70 × 100	4	10.17	61.04
70 × 100	5	12.56	75.36
70 × 110	3	8.2	49.17
70 × 110	4	10.8	64.81
70 × 110	5	13.35	80.07
70 × 120	2	5.84	35.04
70 × 120	2.5	7.26	43.57
70 × 120	3	8.67	52
75 × 75	2	3.76	22.56
75 × 75	3	5.57	33.42
80 × 80	1.5	3.08	18.48
80 × 80	1.9	3.83	22.98
80 × 80	2	4.01	24.06
80 × 80	2.4	4.79	28.74
80 × 80	2.5	5	30
80 × 80	2.9	5.82	34.92
80 × 80	3	6.1	36.6
80 × 80	4	8.06	48.36
80 × 80	5	10	60
80 × 80	6	12.07	72.42
80 × 100	2	4.51	27.06
80 × 100	2.4	6.6	39.61
80 × 100	2.5	5.59	33.54
80 × 100	2.9	7.93	47.59
80 × 100	3	6.61	39.66
80 × 100	4	8.71	52.26
80 × 100	5	13.35	80.07
80 × 100	6	15.83	94.96
80 × 120	2	4.97	29.82
80 × 120	2.4	7.36	44.13
80 × 120	2.5	6.19	37.14
80 × 120	2.9	8.84	53.05
80 × 120	3	7.37	44.22
80 × 120	4	9.71	58.26
80 × 120	5	14.92	89.49
80 × 120	6	17.71	106.26
80 × 120	8	23.11	138.66
80 × 140	2.5	8.44	50.63
80 × 140	3	10.08	60.47
80 × 140	4	13.31	79.88
80 × 140	5	16.49	98.91
80 × 140	6	19.59	117.56
80 × 140	8	25.62	153.73
80 × 160	2.5	9.22	55.34
80 × 160	3	11.02	66.13
80 × 160	4	14.57	87.42
80 × 160	5	18.06	108.33
80 × 160	6	21.48	128.87
80 × 160	8	28.13	168.8
80 × 200	3	12.91	77.43
80 × 200	4	17.08	102.49
80 × 200	5	21.2	127.17
80 × 200	6	25.25	151.48
90 × 90	2	5.53	33.16
90 × 90	2.4	6.6	39.61
90 × 90	2.5	6.87	41.21
90 × 90	2.9	7.93	47.59
90 × 90	3	8.2	49.17
90 × 90	4	10.8	64.81
90 × 90	5	13.35	80.07
90 × 90	6	15.83	94.96
100 × 100	2	5.05	30.3
100 × 100	2.4	6.06	36.36
100 × 100	2.5	6.33	37.98
100 × 100	2.9	7.35	44.1
100 × 100	3	7.67	46.02
100 × 100	4	10.16	60.96
100 × 100	5	12.6	75.6
100 × 100	6	15.36	92.16
100 × 100	8	20.46	122.76
100 × 120	2.5	8.44	50.63
100 × 120	3	10.08	60.47
100 × 120	4	13.31	79.88
100 × 120	5	16.49	98.91
100 × 120	6	19.59	117.56
100 × 120	8	25.62	153.73
100 × 150	3	9.3	55.8
100 × 150	4	12.3	73.8
100 × 150	5	19.31	115.83
100 × 150	6	22.42	134.52
100 × 150	8	29.39	176.34
100 × 180	3	12.91	77.43
100 × 180	4	17.08	102.49
100 × 180	5	21.2	127.17
100 × 180	6	25.25	151.48
100 × 200	3	11.68	70.08
100 × 200	4	15.57	93.42
100 × 200	5	22.77	136.59
100 × 200	6	27.13	162.78
100 × 200	8	35.67	214.02
110 × 110	2.5	8.44	50.63
110 × 110	3	10.08	60.47
110 × 110	4	13.31	79.88
110 × 110	5	16.49	98.91
110 × 110	6	19.59	117.56
110 × 110	8	25.62	153.73
120 × 120	2.5	7.68	46.08
120 × 120	3	9.29	55.74
120 × 120	4	12.36	74.16
120 × 120	5	15.42	92.52
120 × 120	6	18.79	112.74
120 × 120	8	25.49	152.94
140 × 140	3	10.91	65.46
140 × 140	4	14.54	87.24
140 × 140	5	18.14	108.84
140 × 140	6	22.18	133.08
140 × 140	8	30.16	180.96
150 × 150	3	11.68	70.08
150 × 150	4	15.57	93.42
150 × 150	5	19.44	116.64
150 × 150	6	23.75	142.5
150 × 150	8	32.32	193.92
150 × 200	3	13.71	82.26
150 × 200	4	18.28	109.68
150 × 200	5	26.69	160.14
150 × 200	6	31.84	191.04
150 × 200	8	41.95	251.7
150 × 250	4	24.62	147.71
150 × 250	5	30.62	183.69
150 × 250	6	36.55	219.3
150 × 250	8	48.23	289.38
150 × 250	10	59.66	357.96
175 × 175	3	13.71	82.26
175 × 175	4	18.28	109.68
175 × 175	5	22.83	136.98
175 × 175	6	27.94	167.64
175 × 175	8	38.07	228.42
200 × 200	4	21	126
200 × 200	5	26.24	157.44
200 × 200	6	32.13	192.78
200 × 200	8	43.83	262.98
200 × 200	10	56.94	341.64
200 × 300	5	33.07	198.42
200 × 300	6	45.97	275.82
200 × 300	8	60.79	364.74
200 × 300	10	75.36	452.16
250 × 250	5	33.07	198.42
250 × 250	6	40.51	243.06
250 × 250	8	55.35	332.1
250 × 250	10	74.07	444.42

Roll-formed from painted or primed strip (RAL 9016 white, 7016 anthracite, 3009 red, 9005 black; anti-rust primer); 6 m lengths.

Grades, standards and tolerances

Pre-painted box sections — steel grades and standards
Grade / standard	Yield (MPa)	Note
Painted strip: DX51D+Z + polyester 20–25 µm (EN 10169)	≈ 280 (typ.)	the standard — galvanized under the paint
Primed strip: DC01 / HRPO + anti-rust primer	≤ 280 / ≥ 235	red-oxide or grey primer, for top-coating
S235JRH black + powder coat (alternative)	≥ 235	structural, painted after fabrication

Dimensions and tolerances to EN 10219-2; paint system polyester over Z100–Z140 galvanized strip; seam colour-repaired in-line. Cut ends are bare — touch up.

Colours and paint systems

Standard colours from stock and paint options
Colour	RAL	Substrate	Typical use
White	9016 (or 9010)	galvanized + polyester	fences, railings, greenhouses
Anthracite grey	7016	galvanized + polyester	modern fences, pergolas, gates
Oxide red	3009	galvanized + polyester or primer	racks, agricultural, industrial
Black	9005	galvanized + polyester	railings, furniture, display
Other RAL	on order	galvanized + polyester	min. 10 t per colour
Anti-rust primer	red-oxide / grey	cold-rolled or HRPO	for top-coating after fabrication

Polyester 20–25 µm gives 5–10 years outdoor colour retention; PVDF on request for coastal and high-UV sites.

Lengths and stock

Length 6 m (+30/−0), cut lengths ±2 mm. Stock: 20×20, 25×25, 30×30, 40×40, 50×50, 60×60 and 20×40, 30×50, 40×60, 40×80 in 1.2–2 mm in the four standard colours; 15×15 and 70–100 mm and other colours rolled to order. Tolerances per EN 10219-2.

Cutting, welding and repair

Cut with a cold saw (not abrasive — burns the paint); ends and drilled holes touched up with matching RAL spray (supplied on request). Welding burns the paint and zinc back 5–10 mm — weld sparingly, extract fumes, repair with zinc primer and RAL top-coat; for heavily welded frames use black tube and paint afterwards. Bolted and clamp systems keep the finish intact.

Where it is used

Fence, gate and railing systems in colour
Pergolas, carports and garden structures
Greenhouse and shade frames (white)
Racking and shelving uprights (red oxide)
Shop fittings, display and exhibition frames
Modular partition and cabin frames

Pre-painted vs powder-coated tube

Powder coating after fabrication gives a thicker, seamless finish including welds and cut ends — the right route for gates and frames with many welds, using black square hollow section or cold-rolled box section. Pre-painted tube wins where parts are cut and bolted or clamped: no paint shop, no lead time, consistent colour, lower cost. Galvanized under the paint means it also outlasts a plain painted tube. For bare zinc see galvanized square tube.

Price

Painted tube is priced per ton on the coated-tube list, above pre-galvanized for the paint; primed tube is cheaper than painted. Bands below; other colours carry a minimum lot.

Painted box 20×20–60×60 · standard RAL820 – 1 300USD/MT · FOB Istanbul

Primed (anti-rust) box section760 – 1 240USD/MT · FOB Istanbul

Bands from our weekly export list (September 2026), FOB Istanbul, full-container quantities, excluding freight and certificates. Firm price per project on RFQ within one working day.

Export and packing

Pre-painted box sections is bundled in hexagonal or square packs of 0.8–2 t, strapped at four points with edge protectors, tagged with size, wall, grade, length and bar count; galvanized and painted bundles get paper or foam separators. A 40' HC takes 24–25 t of 6 m bars, a 20' about 20 t; 12 m bars go on flat-racks. HS 7306.61 (square/rectangular welded).

Term	Detail
MOQ	3 t per colour (mixed sizes accepted)
Incoterms	FOB Istanbul · CIF / CFR Gulf, Africa · DAP EU, Balkans, Iraq, Caucasus · DAP Aktau
Lead time	Stock colours in 20×20–60×60: 3–7 working days; other sizes/colours 7–14 days
Packing	Bundles 0.5–1 t, foam/paper separators, stretch-wrapped, tagged
Container / truck	40' HC ≈ 22–24 t of 6 m
Documents	Invoice, packing list, EN 10204 3.1, CE DoP (EN 10219-1), certificate of origin; SASO / SONCAP / PVoC on request
Payment	30% advance, balance against B/L copy; L/C at sight above 100 t

Certificates

Documentation for Pre-painted box sections: strip mill certificate EN 10204 3.1, our production record (size, wall, straightness, weld test), CE DoP under EN 10219-1; third-party 3.2 certificates on request.

How to order

Send size × wall × length, colour (RAL), quantity per colour, cutting and touch-up spray needs; for non-standard colours state the tonnage.

Standards

EN 10219 — dimensions
EN 10169 — pre-painted strip (organic coated flat products)
EN 10346 DX51D+Z (substrate of painted strip) / DC01 (primed)
EN 10204 3.1

Grades

Grade data sheets (chemistry, mechanicals, equivalents) are on our reference site: DX51D · DC01 · S235JRH

Frequently asked questions

What is pre-painted box section?

Square or rectangular tube rolled from pre-painted galvanized strip so it comes off the mill in colour (RAL 9016, 7016, 3009, 9005 as standard) — no painting after fabrication.

Which colours are available from stock?

White RAL 9016, anthracite RAL 7016, oxide red RAL 3009 and black RAL 9005 in the common sizes; other RAL colours to order with a minimum of about 10 t.

Can painted tube be welded?

Yes, but the paint and zinc burn back around the weld and must be repaired; for heavily welded frames use black tube and powder-coat afterwards.

What is primed box section?

Tube rolled from strip with an anti-rust primer (red-oxide or grey) instead of a top-coat — for frames that will be painted after fabrication; cheaper than colour-painted.

How long does the colour last outdoors?

Polyester over galvanized strip keeps its colour 5–10 years in a temperate climate; PVDF paint on request for coastal and high-UV sites.
