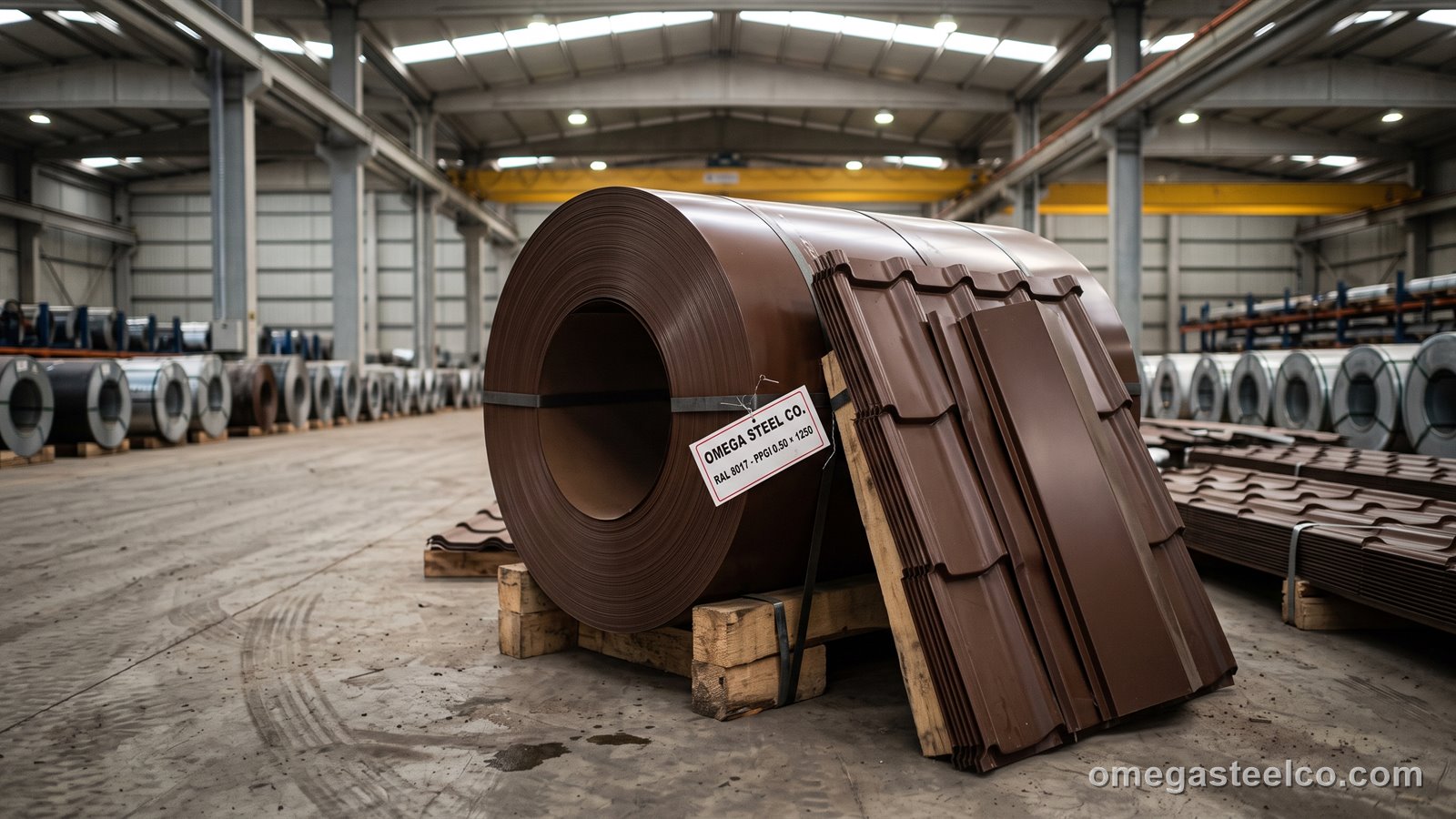

What is RAL 8017 PPGI sheet?
RAL 8017, Schokoladenbraun, is a deep, slightly reddish brown with a light-reflectance value around 7 % — one of the darkest colours in the roofing palette, which is exactly why it is chosen: a roof in 8017 reads as fired clay from the street, hides the ribs of a trapezoidal profile better than any lighter colour and does not show dust. On coil-coated steel it is made from iron-oxide pigments with a little carbon black, so it is light-fast like RAL 3009 and keeps its shade in the standard 25 µm polyester system for 10–15 years; the price of its darkness is heat — a south-facing 8017 roof reaches 70–80 °C in Gulf summer, which raises the demand for insulation underneath and for the higher-quality SMP or PVDF binders that do not chalk at that temperature. We hold 8017 in gloss PE and in matt-textured PE (the wrinkle finish that mimics the surface of a tile and hides scratches and oil-canning) in 0.40 and 0.50 mm on 1 000 and 1 250 mm coil, roll it into tile-profile, trapezoidal and corrugated sheet on our own lines, and fold ridge caps, hips, valleys, eaves and verge flashings from the same batch so that every part of the roof is one shade. Housing projects in Iraq, Nigeria, Romania and the Balkans, mosques and schools in the Gulf and re-roofing of old clay-tile buildings are the typical orders; sandwich-panel outer skins in 8017 are rolled on request.
Colour data
| RAL code | Name | Approx. hex | Light reflectance (LRV) | Gloss (60°) | Colour tolerance |
|---|---|---|---|---|---|
| RAL 8017 | Chocolate brown / Schokoladenbraun | #45322E | ≈ 7 % | 30–40 gloss; 5–15 matt textured | ΔE ≤ 1.0 to RAL 841-GL, batch-matched |
Which paint system holds this colour
| System | Chalking | ΔE at 10 yr | Gloss kept | Typical use |
|---|---|---|---|---|
| PE polyester 25 µm | slight–moderate (dark colour runs hot) | 2–3.5 | 40–55 % | tile-profile and trapezoidal roofs, temperate and continental |
| Matt-textured PE 30 µm | masked by texture | 2–3 | n/a | villa and mosque roofs, hides scratches |
| SMP / HDP 25 µm | low | 1.5–2 | 60–75 % | Gulf and Africa roofs, 15–20-yr warranty |
| PVDF 25–35 µm | very low | ≤ 1 | > 80 % | façades, standing-seam, colour warranty |
Dark colours absorb 85–90 % of solar energy: surface temperatures of 70–80 °C in Gulf summer accelerate chalking of plain PE. For Gulf and African roofs specify SMP or PVDF, or matt-textured PE for villa roofs where texture hides early chalk.
Roofing products rolled from RAL 8017 coil
| Item | Gauge | Note |
|---|---|---|
| Tile-profile (pantile) roofing sheet | 0.40–0.50 mm | step 350 mm, cover 1 100 mm — the main 8017 product |
| Trapezoidal 27/150 and 38/151 | 0.40–0.50 mm | roofs and walls |
| Corrugated 18/76 | 0.40–0.50 mm | sheds, fences, curved roofs |
| Ridge, hip and valley | 0.45–0.50 mm | folded from the same coil |
| Gutters, downpipes and fascia | 0.50 mm | half-round and box |
| Screws with painted heads | — | EPDM washer, 8017 heads |
Order sheet, flashings and screws in one lot: 8017 batches from different paint runs can differ by 1–2 ΔE, visible at the ridge line.
Thickness range and stock sizes
| Thickness | Widths × lengths | Availability |
|---|---|---|
| 0.40–0.50 mm | 1 000 / 1 250 mm coil; sheet to 8 000 mm | stock — gloss and matt textured |
| 0.35 mm | 1 000 mm coil | to order — light cladding, fences |
| 0.60–0.70 mm | 1 250 mm coil | to order — panels, gutters, doors |
| SMP / PVDF | 0.45–0.60 mm | to order, 10 t per system |
Weight per m² and per sheet
| Thickness | kg/m² | 1 000 × 2 000 (kg) | 1 250 × 2 500 (kg) | 1 500 × 3 000 (kg) |
|---|---|---|---|---|
| 0.35 mm | 2.85 | 5.7 | 8.9 | 12.8 |
| 0.4 mm | 3.24 | 6.5 | 10.1 | 14.6 |
| 0.45 mm | 3.63 | 7.3 | 11.4 | 16.3 |
| 0.5 mm | 4.03 | 8.1 | 12.6 | 18.1 |
| 0.6 mm | 4.81 | 9.6 | 15.0 | 21.6 |
| 0.7 mm | 5.60 | 11.2 | 17.5 | 25.2 |
Weights are for 7.85 kg/dm³ steel with Z100 zinc and the 25/7 µm brown paint system (≈ 0.10 kg/m²); thickness is TCT unless BMT is written on the order.
Forming, cutting and handling
Roll-forms and step-presses into tile profile without cracking (PE flexible to T-bend ≤ 2T; matt-textured to 3T), folds at 1–2 × t with the film on; shear and slit cleanly — plasma and laser burn the coating and are avoided. Dark PE scratches show as bright zinc, so keep the film on until the sheet is fixed and cut with shears, not an abrasive disc; touch up cut edges and scratches with 8017 repair paint (supplied). Store coils and packs under cover: dark colours trap condensation heat and show water-staining faster than whites.
Where it is used
- Tile-profile (pantile) roofing on villas, housing projects, mosques and schools
- Trapezoidal and corrugated roofs and walls in rural and traditional zones
- Ridge caps, flashings, gutters and downpipes
- Sandwich-panel outer skins for tile-look roofs
- Fences, garden buildings and re-roofing of old clay-tile roofs
- Doors, shutters and garage doors in brown
RAL 8017 vs 3009 vs 8004
RAL 3009 oxide red is the terracotta alternative — lighter, redder, cooler in the sun and the Balkan / Anatolian tile colour; 8017 is the darker Gulf, Iraqi and African tile colour. RAL 8004 copper brown sits between the two and is a to-order colour. For a black roof see RAL 9005; all colours and systems on the PPGI hub.
Price
RAL 8017 carries a small premium over the RAL 9002 base (about 15 USD/t) and moves with galvanized coil and the paint index; matt-textured adds 5–8 %, SMP 15–20 %, PVDF 30–40 %. The bands below are the month's indicative FOB Istanbul ranges for 0.50 mm PE and for the full stock gauge range; tile-profile sheet is quoted per m² on the roofing page.
Bands from our weekly export list (September 2026), FOB Istanbul, full-container quantities, excluding freight and certificates. Firm price per project on RFQ within one working day.
Export and packing
RAL 8017 PPGI sheet ships as coil — eye-to-sky on a wooden cradle, 5–25 t per coil, VCI paper and steel strapping — or as cut sheet on skids of 2–3 t with paper interleaving and edge protectors. A 20' takes one coil up to 20 t; a 40' HC two coils or 24 t of sheet. HS 7210 / 7209 / 7208 by product.
| Term | Detail |
|---|---|
| MOQ | 3 t from stock; 10 t for PVDF or a special brown |
| Incoterms | FOB Istanbul · CIF / CFR Gulf, Africa · DAP EU, Balkans, Iraq, Caucasus · DAP Aktau |
| Lead time | RAL 8017 in 0.40–0.50 mm ships in 3–7 working days from stock; tile-profile lengths and matt-textured runs 3–4 weeks |
| Packing | Coils 3–8 t on wooden cradles, eye-to-sky, PE-wrapped with VCI paper; pantile sheets stacked on skids with paper interleaving so the textured face is not marked |
| Container / truck | 20' takes 2 coils (≈ 18 t); a 40' HC takes about 24 t of cut sheet |
| Documents | Invoice, packing list, EN 10204 3.1 (3.2 on request), certificate of origin; SASO / SONCAP / PVoC on request |
| Payment | 30% advance, balance against B/L copy; L/C at sight for orders above 100 t |
Certificates and testing
RAL 8017 PPGI sheet ships with EN 10204 3.1 certificates cross-referenced to the stencilled heat numbers. Where the project requires it we arrange 3.2 certification with Lloyd's, BV, TÜV or SGS, ultrasonic examination to EN 10160 and Charpy testing at the temperature you specify.
How to order
Specify RAL 8017, gloss or matt textured, thickness (TCT), width, coil or sheet length (or the roof m² and profile), coating system (PE stock / SMP / PVDF), zinc class, backing coat, film and quantity; ask for sheet, flashings and screws in one batch.
Standards
- EN 10169 — continuously organic-coated (coil-coated) steel
- EN 10346 — DX51D+Z substrate
- RAL 841-GL colour register
- EN 13523 (ECCA) test methods; EN 10204 3.1
Grades
Grade data sheets (chemistry, mechanicals, equivalents) are on our reference site: DX51D · S250GD · DX52D
Frequently asked questions
What colour is RAL 8017?
Chocolate brown — a deep, slightly reddish dark brown (LRV ≈ 7 %), the standard colour of tile-profile and brown trapezoidal roofing on PPGI.
Is RAL 8017 available in matt?
Yes — matt-textured PE (wrinkle finish) in 0.40–0.50 mm from stock; it looks more like a clay tile and hides scratches and chalking.
Does a brown roof get hot?
Yes — 8017 absorbs 85–90 % of solar energy and reaches 70–80 °C in Gulf summer; use insulation beneath and SMP or PVDF paint where UV is high.
What is the difference between RAL 8017 and RAL 3009?
3009 is terracotta red-brown, lighter and redder; 8017 is a much darker chocolate brown. Both are iron-oxide pigments with good light-fastness.
Can you supply ridge caps and screws in RAL 8017?
Yes — ridge, hip, valley, eaves and verge flashings folded from the same coil batch, gutters, and screws with 8017 painted heads.
What is the price of RAL 8017 PPGI?
About 15 USD/t above RAL 9002; see the indicative FOB Istanbul bands above. Tile-profile sheet per m² is on the roofing page.
