What is tile-profile roofing sheet?
A tile-profile sheet is a trapezoidal PPGI sheet that passes through a second pressing station which stamps a transverse step every 350 mm, so the finished roof reads as rows of tiles. It keeps the advantages of a metal sheet — one piece from ridge to eave, 4–5 kg/m², screw-fixed to battens or purlins, watertight on pitches from 12° — with the appearance clients want on villas, housing schemes, hotels, mosques, schools and renovations over old tile or asbestos roofs. Substrate is galvanized (Z140–Z275) or aluzinc (AZ150) with a polyester, matt textured or PVDF top coat.
Profile and dimensions
| Item | Value |
|---|---|
| Step (tile length) | 350 mm (300 / 400 on request) |
| Step height | 20–25 mm |
| Rib height / pitch | 40 mm / 183–197 mm (6 ribs) |
| Cover width | 1 100 mm (sheet 1 180) or 1 180 mm (sheet 1 250) |
| Thickness (BMT) | 0.40 / 0.45 / 0.50 / 0.60 mm |
| Length | Cut to rafter length, multiple of 350 mm + 50, max 8 000 mm |
| Weight | 3.6 kg/m² (0.40) · 4.5 kg/m² (0.50) · 5.4 kg/m² (0.60) |
| Batten / purlin spacing | 350 mm (one per step) or 700 mm (0.50 mm+) |
| Minimum pitch | 12° (14° for lengths > 6 m) |
| Side lap | One rib (+ sealant in high wind) |
| End lap | One step (350 mm), sealed |
Colours and coatings
| RAL | Colour | Finish | Availability |
|---|---|---|---|
| 8017 | Chocolate brown | PE gloss / matt textured | Stock — most ordered |
| 3009 | Oxide red (terracotta) | PE gloss / matt | Stock |
| 3005 | Wine red | PE gloss / matt | Stock |
| 6005 | Moss green | PE gloss | Stock |
| 7016 | Anthracite grey | PE / matt | Stock |
| 9002 / 9010 | Grey white / white | PE | Stock |
| 8004 | Copper brown | Matt textured | 2–3 weeks |
| Any RAL / stone-coated look | — | PE, PVDF, textured | 5 t per colour, 2–4 weeks |
Matt textured polyester (30–35 µm) hides scratches and glare and is the premium choice for villas; PVDF for Gulf sun and 25-year colour retention.
Flashings and accessories
- Ridge cap (round or angular) with foam closures
- Hip, valley (with lips), eave / drip, verge and wall flashings in the same colour
- Ridge end caps, snow guards, roof vents, chimney kits
- Self-drilling screws 4.8 × 35 mm with EPDM washers, colour heads — 8–10 per m²
- Profile foam fillers, sealant, butyl tape
- Gutters and downpipes (half-round or box), brackets
- Galvanized battens (omega) or C purlins from the same plant
Installation notes
Battens at 350 mm (every step) on rafters at 600–1 000 mm, or purlins at 700 mm for 0.50 mm+ sheets; start at the eave corner opposite the prevailing wind, lay sheets bottom to top with the step facing down-slope, fix through the trough just below the step (2 screws per rib per batten at eaves and ridge, alternate ribs in the field); ridge and hip caps last. Walk on the batten lines. Roof of 200 m²: two men, one day.
Metal tile vs clay / concrete tile vs trapezoidal sheet
| Metal tile sheet | Clay / concrete tile | Trapezoidal sheet | |
|---|---|---|---|
| Weight | 4–5 kg/m² | 40–55 kg/m² | 4–5 kg/m² |
| Structure | Light battens / purlins | Heavy rafters, close battens | Purlins 1.5–2.5 m |
| Installation | 1 day / 200 m² | 3–5 days / 200 m² | 1 day / 250 m² |
| Appearance | Tile look, many colours | Traditional | Industrial |
| Life | 20–30 yr (PE), 30+ (PVDF) | 50+ yr | 20–30 yr |
| Cost per m² (material) | 1.0 | 1.5–2.5 | 0.85–0.95 |
| Min. pitch | 12° | 22–30° | 5–8° |
| Best for | Villas, housing, renovations | Traditional / heritage | Industrial, agricultural |
Metal roof tile price per m²
Indicative FOB Istanbul band per m² of cover from our weekly export list for 0.50 mm PPGI tile profile in stock colours, full-container quantities; 0.40 mm about 15% less, 0.60 mm 15–20% more, matt textured +5–8%, PVDF +15–20%; flashings per metre. Price per sheet = band × 1.1 m × length.
Bands from our weekly export list (September 2026), FOB Istanbul, full-container quantities, excluding freight and certificates. Firm price per project on RFQ within one working day.
Export and packing
Sheets nested in packs of 50–80 (1.0–2.0 t) with film interleaving, on bearers, strapped; flashings bundled; screws boxed. A 40' HC takes 3 000–4 000 m² (13–16 t) up to 8 m long. HS code 7210.70 / 7308.90.
| Term | Detail |
|---|---|
| MOQ | 1 × 40' HC (≈ 3 000–4 000 m²) or 1 truck; colours mixed |
| Incoterms | FOB Istanbul · CIF / CFR Gulf, West and East Africa · DAP EU, Balkans, Iraq, Caucasus · DAP Aktau / Almaty |
| Lead time | 7–12 working days after colour and length confirmation |
| Packing | Packs 50–80 sheets (1.0–2.0 t), film interleaved, on bearers, strapped; flashings bundled |
| Container / truck | 40' HC ≈ 3 000–4 000 m² (13–16 t) · truck ≈ 4 000–5 000 m² |
| Documents | Invoice, packing list, EN 10204 3.1, coating certificate, CE (EN 14782), certificate of origin; SASO / SONCAP / EAC on request |
| Payment | 30% advance, balance against B/L copy; L/C at sight via London office |
Certificates
EN 10204 3.1 for the coil, coating certificate (system, thickness, colour), CE declaration to EN 14782, certificate of origin; SASO, SONCAP, EAC on request.
How to order
Send the roof plan or a length list, colour and finish, thickness, accessories and port. We return the cutting list for approval and quote per m², per sheet and per accessory with weight and lead time (7–12 working days).
Standards
- EN 14782 (self-supporting metal sheet for roofing)
- EN 10169 (pre-painted substrate), EN 10346 (galvanized)
- EN 508-1 (profiled sheet)
- EN 1991-1-3 / -1-4 (snow, wind)
Grades
Grade data sheets (chemistry, mechanicals, equivalents) are on our reference site: DX51D+Z
Frequently asked questions
How much does a metal roof tile sheet weigh?
3.6 kg/m² at 0.40 mm, 4.5 kg/m² at 0.50 mm, 5.4 kg/m² at 0.60 mm — about a tenth of clay or concrete tiles, so the roof structure can be lighter.
What thickness should I choose?
0.40–0.45 mm for budget housing with battens at 350 mm; 0.50 mm as the standard for villas and projects (battens 350 or purlins 700 mm); 0.60 mm for large roofs and heavy snow.
What is the minimum roof pitch?
12° (about 21%), 14° for sheets longer than 6 m; below that use a trapezoidal or standing-seam sheet.
Which colours are available?
Stock: brown 8017, terracotta 3009, wine red 3005, green 6005, anthracite 7016, white 9002/9010, in gloss or matt textured; any RAL or PVDF from 5 t per colour.
Do you supply the ridge, valley and flashings?
Yes — all flashings in the same coil and colour, foam closures, screws, gutters and battens are added to the same container.
What is the price per m²?
See the indicative FOB Istanbul band above for 0.50 mm PPGI stock colours; per sheet = band × 1.1 m × length. Firm price per roof plan within one working day.
Can the sheets be walked on?
Yes on the batten lines; the step and ribs stiffen the sheet. Use crawling boards over long unsupported areas during installation.
Do you manufacture the tile sheets yourselves?

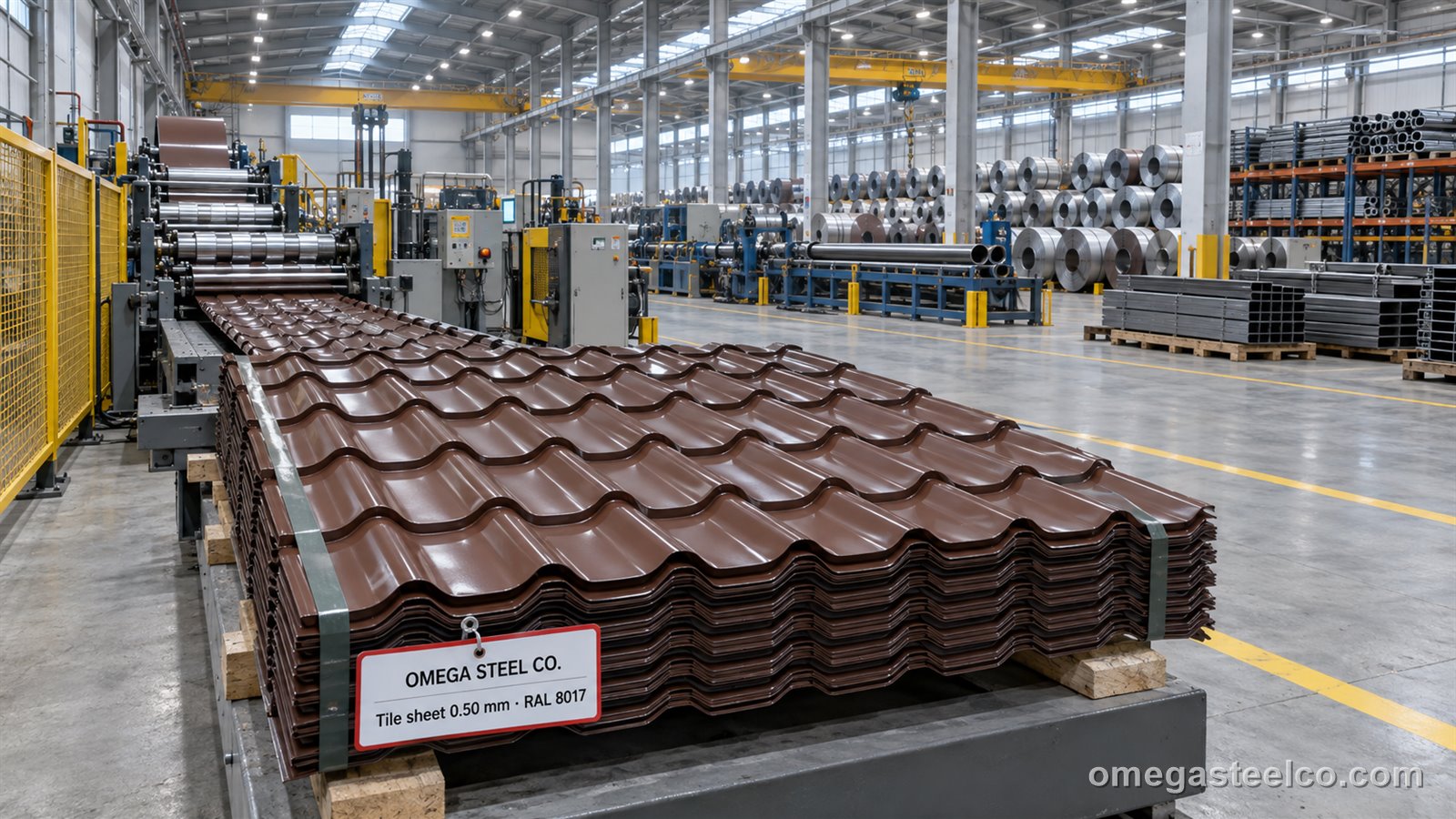

Yes — roll-formed and step-pressed on our own line in Dilovası from PPGI and aluzinc coil, cut to your rafter lengths.
