Stainless Square Tube & Profile Supplier Turkey

Stainless profiles: ornamental vs structural

Stainless square and rectangular tube is longitudinally TIG- or HF-welded from cold-rolled strip, sized and polished. Two standards cover it: ASTM A554 for ornamental and mechanical tube (surface finish, dimensions and weld quality controlled, no pressure or structural guarantee) and EN 10219 / EN 10296-2 for structural and mechanical hollow sections with guaranteed mechanical properties. For handrails, furniture, shopfitting and cladding frames A554 satin tube is the standard; for balustrade posts, canopy frames and load-bearing work specify EN 10219 (1.4301 / 1.4404) and, where required, EN 1090 fabrication. Both come from the same stock in Dilovası.

Tube pages

The rectangular range has its own page with the 20×10–150×50 sizes, weights and uses: stainless rectangular tube; the finishes are covered on the satin tube and mirror tube pages.

Weight table — square and rectangular

Weights for 304 (density 7.93 kg/dm³); 316L is 0.6% heavier. A 6 m bar of 40×40×1.5 satin weighs 10.9 kg. Sizes below 20 mm and walls below 1.2 mm are used for furniture and trim; 50×50×2 to 100×50×3 for balustrade posts and frames; 100×100 to 200×100 in 3–6 mm for structural frames.

Filter rows

Stainless square & rectangular tube 304 / 316 — weight per metre
Size (mm)	Wall (mm)	kg/m	kg per 6 m
12 × 12	1	0.358	2.15
15 × 10	1	0.37	2.22
15 × 10	1.2	0.44	2.64
15 × 10	1.5	0.54	3.24
15 × 15	1	0.453	2.72
15 × 15	1.2	0.538	3.23
15 × 15	1.5	0.661	3.97
16 × 16	1	0.485	2.91
16 × 16	1.2	0.576	3.46
16 × 16	1.5	0.709	4.25
19 × 19	1	0.567	3.4
19 × 19	1.2	0.675	4.05
19 × 19	1.5	0.832	4.99
19 × 19	2	1.09	6.54
20 × 10	1	0.453	2.72
20 × 10	1.2	0.538	3.23
20 × 10	1.5	0.661	3.97
20 × 15	1	0.533	3.2
20 × 15	1.2	0.634	3.8
20 × 15	1.5	0.781	4.69
20 × 15	2	1.016	6.1
20 × 20	1	0.613	3.68
20 × 20	1.2	0.729	4.37
20 × 20	1.5	0.901	5.41
20 × 20	2	1.176	7.06
22 × 22	1	0.677	4.06
22 × 22	1.2	0.806	4.84
22 × 22	1.5	0.996	5.98
22 × 22	2	1.303	7.82
25 × 10	1	0.533	3.2
25 × 10	1.2	0.634	3.8
25 × 10	1.5	0.781	4.69
25 × 15	1	0.613	3.68
25 × 15	1.2	0.729	4.37
25 × 15	1.5	0.901	5.41
25 × 15	2	1.176	7.06
25 × 20	1	0.693	4.16
25 × 20	1.2	0.825	4.95
25 × 20	1.5	1.02	6.12
25 × 20	2	1.335	8.01
25 × 25	1	0.772	4.63
25 × 25	1.2	0.921	5.53
25 × 25	1.5	1.14	6.84
25 × 25	2	1.495	8.97
25 × 25	2.5	1.837	11.02
25 × 25	3	2.167	13
30 × 10	1	0.613	3.68
30 × 10	1.2	0.729	4.37
30 × 10	1.5	0.901	5.41
30 × 10	2	1.176	7.06
30 × 15	1	0.693	4.16
30 × 15	1.2	0.825	4.95
30 × 15	1.5	1.02	6.12
30 × 15	2	1.335	8.01
30 × 20	1	0.772	4.63
30 × 20	1.2	0.921	5.53
30 × 20	1.5	1.14	6.84
30 × 20	2	1.495	8.97
30 × 20	2.5	1.837	11.02
30 × 20	3	2.167	13
30 × 25	1	0.84	5.04
30 × 25	1.2	1	6
30 × 25	1.5	1.24	7.44
30 × 25	2	1.63	9.78
30 × 30	1	0.932	5.59
30 × 30	1.2	1.112	6.67
30 × 30	1.5	1.379	8.27
30 × 30	2	1.814	10.88
30 × 30	2.5	2.236	13.42
30 × 30	3	2.645	15.87
32 × 32	1	0.96	5.76
32 × 32	1.2	1.15	6.9
32 × 32	1.5	1.42	8.52
32 × 32	2	1.87	11.22
32 × 32	2.5	2.31	13.86
32 × 32	3	2.74	16.44
35 × 15	1	0.76	4.56
35 × 15	1.2	0.91	5.46
35 × 15	1.5	1.13	6.78
35 × 15	2	1.48	8.88
35 × 20	1	0.852	5.11
35 × 20	1.2	1.017	6.1
35 × 20	1.5	1.259	7.55
35 × 20	2	1.654	9.92
35 × 20	2.5	2.036	12.22
35 × 20	3	2.406	14.44
35 × 35	1	1.091	6.55
35 × 35	1.2	1.304	7.82
35 × 35	1.5	1.618	9.71
35 × 35	2	2.133	12.8
35 × 35	2.5	2.635	15.81
35 × 35	3	3.124	18.74
40 × 10	1	0.76	4.56
40 × 10	1.2	0.91	5.46
40 × 10	1.5	1.13	6.78
40 × 10	2	1.48	8.88
40 × 15	1	0.852	5.11
40 × 15	1.2	1.017	6.1
40 × 15	1.5	1.259	7.55
40 × 15	2	1.654	9.92
40 × 15	2.5	2.036	12.22
40 × 15	3	2.406	14.44
40 × 20	1	0.932	5.59
40 × 20	1.2	1.112	6.67
40 × 20	1.5	1.379	8.27
40 × 20	2	1.814	10.88
40 × 20	2.5	2.236	13.42
40 × 20	3	2.645	15.87
40 × 30	1	1.091	6.55
40 × 30	1.2	1.304	7.82
40 × 30	1.5	1.618	9.71
40 × 30	2	2.133	12.8
40 × 30	2.5	2.635	15.81
40 × 30	3	3.124	18.74
40 × 40	1	1.251	7.51
40 × 40	1.2	1.495	8.97
40 × 40	1.5	1.858	11.15
40 × 40	2	2.452	14.71
40 × 40	2.5	3.033	18.2
40 × 40	3	3.602	21.61
40 × 40	4	4.703	28.22
45 × 15	1	0.91	5.46
45 × 15	1.2	1.09	6.54
45 × 15	1.5	1.35	8.1
45 × 15	2	1.78	10.68
45 × 20	1	0.99	5.94
45 × 20	1.2	1.18	7.08
45 × 20	1.5	1.46	8.76
45 × 20	2	1.92	11.52
45 × 45	1	1.41	8.46
45 × 45	1.2	1.686	10.12
45 × 45	1.5	2.097	12.58
45 × 45	2	2.771	16.63
45 × 45	2.5	3.432	20.59
45 × 45	3	4.081	24.49
50 × 10	1	0.91	5.46
50 × 10	1.2	1.09	6.54
50 × 10	1.5	1.35	8.1
50 × 10	2	1.78	10.68
50 × 20	1	1.091	6.55
50 × 20	1.2	1.304	7.82
50 × 20	1.5	1.618	9.71
50 × 20	2	2.133	12.8
50 × 20	2.5	2.635	15.81
50 × 20	3	3.124	18.74
50 × 25	1	1.171	7.03
50 × 25	1.2	1.399	8.39
50 × 25	1.5	1.738	10.43
50 × 25	2	2.292	13.75
50 × 25	2.5	2.834	17
50 × 25	3	3.363	20.18
50 × 30	1	1.251	7.51
50 × 30	1.2	1.495	8.97
50 × 30	1.5	1.858	11.15
50 × 30	2	2.452	14.71
50 × 30	2.5	3.033	18.2
50 × 30	3	3.602	21.61
50 × 40	1	1.41	8.46
50 × 40	1.2	1.686	10.12
50 × 40	1.5	2.097	12.58
50 × 40	2	2.771	16.63
50 × 40	2.5	3.432	20.59
50 × 40	3	4.081	24.49
50 × 50	1.2	1.878	11.27
50 × 50	1.5	2.336	14.02
50 × 50	2	3.09	18.54
50 × 50	2.5	3.831	22.99
50 × 50	3	4.559	27.35
50 × 50	4	5.979	35.87
50 × 50	5	7.349	44.09
60 × 20	1	1.251	7.51
60 × 20	1.2	1.495	8.97
60 × 20	1.5	1.858	11.15
60 × 20	2	2.452	14.71
60 × 20	2.5	3.033	18.2
60 × 20	3	3.602	21.61
60 × 30	1	1.41	8.46
60 × 30	1.2	1.686	10.12
60 × 30	1.5	2.097	12.58
60 × 30	2	2.771	16.63
60 × 30	2.5	3.432	20.59
60 × 30	3	4.081	24.49
60 × 40	1.2	1.878	11.27
60 × 40	1.5	2.336	14.02
60 × 40	2	3.09	18.54
60 × 40	2.5	3.831	22.99
60 × 40	3	4.559	27.35
60 × 40	4	5.979	35.87
60 × 60	1.5	2.814	16.88
60 × 60	2	3.728	22.37
60 × 60	2.5	4.628	27.77
60 × 60	3	5.516	33.1
60 × 60	4	7.255	43.53
60 × 60	5	8.943	53.66
70 × 20	1.2	1.65	9.9
70 × 20	1.5	2.05	12.3
70 × 20	2	2.71	16.26
70 × 20	2.5	3.36	20.16
70 × 20	3	4	24
70 × 30	1.5	2.29	13.74
70 × 30	2	3.03	18.18
70 × 30	2.5	3.76	22.56
70 × 30	3	4.48	26.88
70 × 40	1.5	2.575	15.45
70 × 40	2	3.409	20.45
70 × 40	2.5	4.229	25.37
70 × 40	3	5.038	30.23
70 × 70	1.5	3.293	19.76
70 × 70	2	4.366	26.2
70 × 70	2.5	5.426	32.56
70 × 70	3	6.473	38.84
70 × 70	4	8.531	51.19
70 × 70	5	10.538	63.23
80 × 20	1.5	2.29	13.74
80 × 20	2	3.03	18.18
80 × 20	2.5	3.76	22.56
80 × 20	3	4.48	26.88
80 × 30	1.5	2.53	15.18
80 × 30	2	3.35	20.1
80 × 30	2.5	4.16	24.96
80 × 30	3	4.96	29.76
80 × 40	1.5	2.814	16.88
80 × 40	2	3.728	22.37
80 × 40	2.5	4.628	27.77
80 × 40	3	5.516	33.1
80 × 40	4	7.255	43.53
80 × 40	5	8.943	53.66
80 × 40	6	10.582	63.49
80 × 50	1.5	3.01	18.06
80 × 50	2	4	24
80 × 50	2.5	4.96	29.76
80 × 50	3	5.92	35.52
80 × 50	4	7.79	46.74
80 × 50	5	9.62	57.72
80 × 50	6	11.39	68.34
80 × 60	1.5	3.293	19.76
80 × 60	2	4.366	26.2
80 × 60	2.5	5.426	32.56
80 × 60	3	6.473	38.84
80 × 60	4	8.531	51.19
80 × 60	5	10.538	63.23
80 × 60	6	12.496	74.98
80 × 80	1.5	3.771	22.63
80 × 80	2	5.004	30.02
80 × 80	2.5	6.223	37.34
80 × 80	3	7.43	44.58
80 × 80	4	9.807	58.84
80 × 80	5	12.133	72.8
80 × 80	6	14.41	86.46
100 × 20	1.5	2.76	16.56
100 × 20	2	3.65	21.9
100 × 20	2.5	4.54	27.24
100 × 20	3	5.41	32.46
100 × 30	1.5	3.01	18.06
100 × 30	2	4	24
100 × 30	2.5	4.96	29.76
100 × 30	3	5.92	35.52
100 × 40	1.5	3.293	19.76
100 × 40	2	4.366	26.2
100 × 40	2.5	5.426	32.56
100 × 40	3	6.473	38.84
100 × 40	4	8.531	51.19
100 × 40	5	10.538	63.23
100 × 40	6	12.496	74.98
100 × 50	1.5	3.532	21.19
100 × 50	2	4.685	28.11
100 × 50	2.5	5.824	34.94
100 × 50	3	6.952	41.71
100 × 50	4	9.169	55.01
100 × 50	5	11.336	68.02
100 × 50	6	13.453	80.72
100 × 60	1.5	3.771	22.63
100 × 60	2	5.004	30.02
100 × 60	2.5	6.223	37.34
100 × 60	3	7.43	44.58
100 × 60	4	9.807	58.84
100 × 60	5	12.133	72.8
100 × 60	6	14.41	86.46
100 × 80	1.5	4.25	25.5
100 × 80	2	5.641	33.85
100 × 80	2.5	7.021	42.13
100 × 80	3	8.387	50.32
100 × 80	4	11.083	66.5
100 × 80	5	13.728	82.37
100 × 80	6	16.324	97.94
100 × 100	1.5	4.728	28.37
100 × 100	2	6.279	37.67
100 × 100	2.5	7.818	46.91
100 × 100	3	9.344	56.06
100 × 100	4	12.359	74.15
100 × 100	5	15.323	91.94
100 × 100	6	18.237	109.42
120 × 40	1.5	3.771	22.63
120 × 40	2	5.004	30.02
120 × 40	2.5	6.223	37.34
120 × 40	3	7.43	44.58
120 × 40	4	9.807	58.84
120 × 40	5	12.133	72.8
120 × 40	6	14.41	86.46
120 × 60	1.5	4.25	25.5
120 × 60	2	5.641	33.85
120 × 60	2.5	7.021	42.13
120 × 60	3	8.387	50.32
120 × 60	4	11.083	66.5
120 × 60	5	13.728	82.37
120 × 60	6	16.324	97.94
120 × 80	1.5	4.728	28.37
120 × 80	2	6.279	37.67
120 × 80	2.5	7.818	46.91
120 × 80	3	9.344	56.06
120 × 80	4	12.359	74.15
120 × 80	5	15.323	91.94
120 × 80	6	18.237	109.42
120 × 120	2	7.555	45.33
120 × 120	2.5	9.413	56.48
120 × 120	3	11.258	67.55
120 × 120	4	14.91	89.46
120 × 120	5	18.513	111.08
120 × 120	6	22.065	132.39
140 × 80	3	10.301	61.81
140 × 80	4	13.635	81.81
140 × 80	5	16.918	101.51
140 × 80	6	20.151	120.91
140 × 140	2	8.831	52.99
140 × 140	2.5	11.008	66.05
140 × 140	3	13.172	79.03
140 × 140	4	17.462	104.77
140 × 140	5	21.703	130.22
140 × 140	6	25.893	155.36
150 × 50	3	9.344	56.06
150 × 50	4	12.359	74.15
150 × 50	5	15.323	91.94
150 × 50	6	18.237	109.42
150 × 100	3	11.736	70.42
150 × 100	4	15.548	93.29
150 × 100	5	19.31	115.86
150 × 100	6	23.022	138.13
150 × 150	2	9.469	56.81
150 × 150	2.5	11.805	70.83
150 × 150	3	14.129	84.77
150 × 150	4	18.738	112.43
150 × 150	5	23.298	139.79
150 × 150	6	27.807	166.84
160 × 80	3	11.258	67.55
160 × 80	4	14.91	89.46
160 × 80	5	18.513	111.08
160 × 80	6	22.065	132.39
200 × 100	3	14.129	84.77
200 × 100	4	18.738	112.43
200 × 100	5	23.298	139.79
200 × 100	6	27.807	166.84
200 × 200	2	12.659	75.95
200 × 200	2.5	15.793	94.76
200 × 200	3	18.913	113.48
200 × 200	4	25.118	150.71
200 × 200	5	31.272	187.63
200 × 200	6	37.376	224.26

EN 10219 / ASTM A554; mill, 180/240 grit satin or mirror finish.

Grades and finishes

Grade and finish options
Option	Description	Where
304 / 304L (1.4301 / 1.4307)	18/8 austenitic, non-magnetic	Interior handrails, furniture, kitchens, urban exterior
316 / 316L (1.4401 / 1.4404)	2% Mo, chloride resistant	Coastal and pool balustrades, marine, chemical, Gulf exteriors
Mill (as welded, 2B strip)	Semi-matt, weld visible	Hidden frames, to be polished
Satin 180 grit	Brushed, standard export	Handrails, general
Satin 240 grit	Finer brushed	Furniture, shopfitting, lifts
Hairline	Long-grain brushed	Cladding frames, doors
Mirror (No.8)	Polished, weld invisible	Decorative columns, luxury interiors
PVD colour	Gold, bronze, black, rose gold on satin/mirror	Hotels, retail, lifts

All polished tube supplied with PE protective film; weld seam ground flush and polished on satin and mirror finishes.

Sizes and tolerances

Square 12×12 to 200×200 mm and rectangular 20×10 to 200×100 mm; wall 1.0–6.0 mm (1.2–2.0 mm is 80% of demand); length 6 m standard, 3 m and cut lengths on request; outside dimension tolerance ±0.3 mm (≤ 50 mm) / ±0.5%, wall ±10%, straightness 1.5 mm/m, squareness 90° ±1°. Corner radius 1.5–2.5t (sharp-corner tube on request).

Cutting, bending, welding and fabrication

Cut to length ±1 mm with film on, mitred 45°, drilled, laser-slotted, CNC-bent to radius (handrail curves), TIG-welded and re-polished to invisible seam; balustrade posts with base plates and glass clamps assembled to drawing. Stainless-only tooling avoids carbon contamination; welded assemblies are pickled and passivated.

Applications

Handrails and balustrades (with round tube and fittings — see handrail page)
Furniture, tables, shop and display fittings, hospital and lab equipment
Kitchen and food-plant frames and trolleys
Façade, canopy and signage frames (316L outdoors)
Structural frames and walkways (EN 10219, 3–6 mm)
Automotive and bus interior rails

Stainless tube vs galvanized vs aluminium

Frame material comparison (40×40×2, per metre)
	Stainless 304 satin	Pre-galvanized steel	Aluminium 6063
Weight	2.4 kg	2.3 kg	0.8 kg
Corrosion	Excellent (316 for coast)	Good 10–20 yr	Good (anodised)
Appearance	Bright, no coating	Zinc grey / painted	Silver / anodised
Strength	High	High	Medium
Price index per metre	4.5–5.5	1.0	2.5–3.0
Choose for	Visible, hygienic, marine	Hidden frames, fences	Light frames, windows

Stainless profile price per ton and per metre

Indicative FOB Istanbul band from our weekly export list, 304 satin 180 grit, 20–60 mm sizes, 1.2–2.0 mm wall, full-pallet quantities; per metre = band × kg/m ÷ 1 000. 316L adds 40–55%, mirror 15–25%, PVD 60–100%; small and thin sizes sit at the top of the band.

304 square / rectangular 20–60 mm3 650 – 4 050USD/MT · FOB Istanbul

Bands from our weekly export list (September 2026), FOB Istanbul, full-container quantities, excluding freight and certificates. Firm price per project on RFQ within one working day.

Export and packing

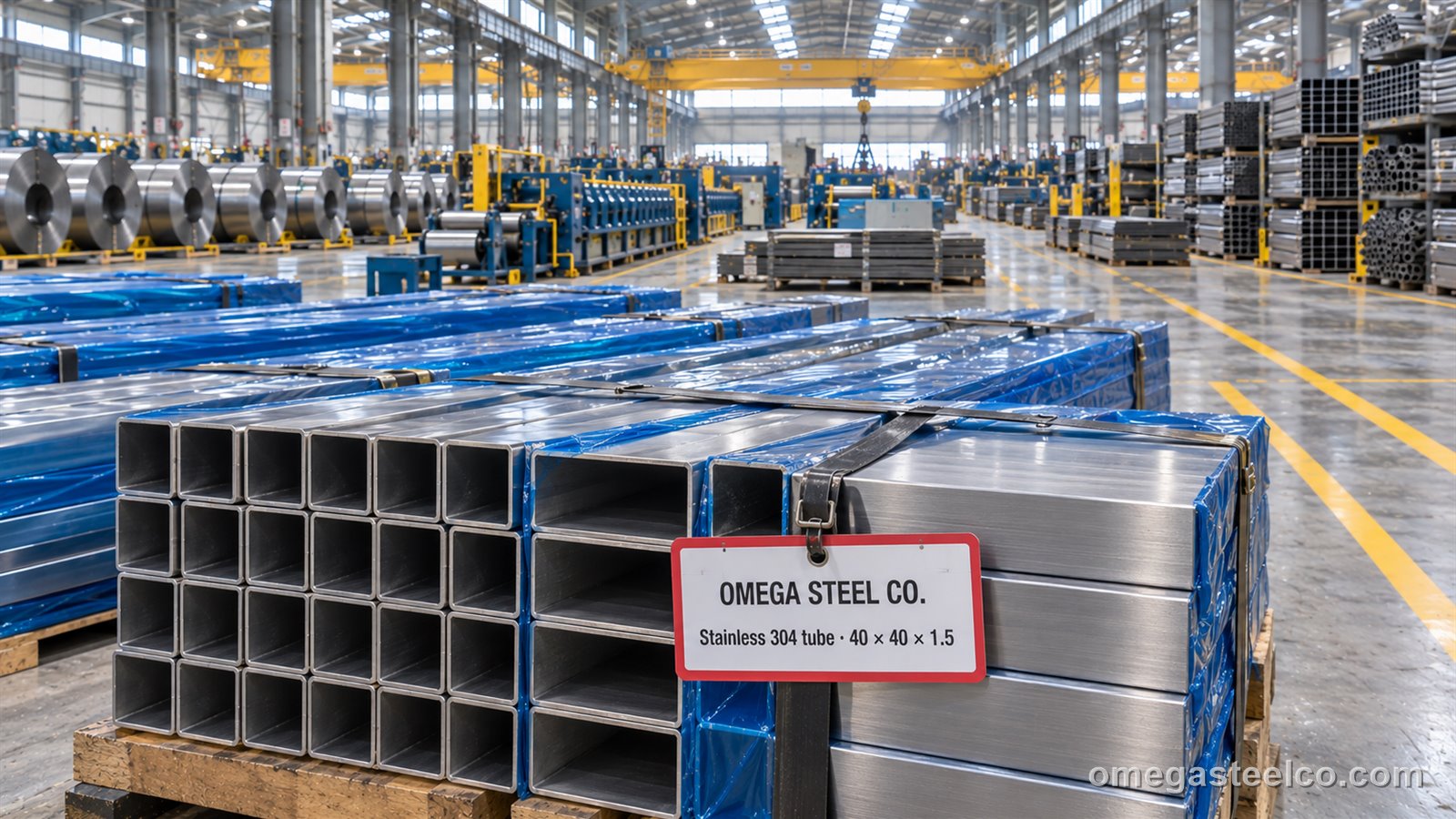

Bars film-protected, bundled with paper interleaving in wooden crates or on pallets (300–800 kg), strapped; crates fit 20' and 40' containers (6 m). HS code 7306.61 (welded stainless square/rectangular).

Term	Detail
MOQ	1 t per size/finish; 1 × 20' (≈15–18 t crated) for freight
Incoterms	FOB Istanbul · CIF / CFR Gulf, Africa · DAP EU, Balkans, Iraq, Caucasus
Lead time	Stock 5–10 working days; mirror / PVD 2–4 weeks
Packing	Film + paper, wooden crates or pallets 300–800 kg
Container / truck	20' ≈ 15–18 t (6 m crates) · 40' HC ≈ 20–22 t · truck 22 t
Documents	Invoice, packing list, EN 10204 3.1, certificate of origin; 3.2 / PMI on request
Payment	30% advance, balance against B/L copy; L/C at sight via London office

Certificates

EN 10204 3.1 (strip chemistry, mechanicals; tube dimensions, weld test), certificate of origin; 3.2 for structural orders; PMI on request.

How to order

Send size × wall, grade, finish, length, quantity in metres or kg, and port; reply within one working day.

Standards

ASTM A554 (welded stainless mechanical/ornamental tubing)
EN 10219 / EN 10296-2 (welded structural / mechanical stainless hollow sections)
EN 10088-2 (material 1.4301 / 1.4307 / 1.4404)
ASTM A240 (strip)
EN 1090-2 for structural fabrication

Grades

Grade data sheets (chemistry, mechanicals, equivalents) are on our reference site: 304 (1.4301) · 316L (1.4404) · 304 vs 316

Frequently asked questions

What sizes of stainless square tube are available?

12×12 to 200×200 mm square and 20×10 to 200×100 mm rectangular, wall 1.0–6.0 mm, 6 m bars; the weight table lists stocked combinations.

304 or 316 for a handrail?

304 indoors and in urban exteriors; 316L within 5 km of the sea, around pools or in the Gulf humidity to avoid tea-staining.

What finish should I specify?

Satin 180 grit is the standard for handrails and general work; 240 grit for furniture and lifts; hairline for cladding frames; mirror for decorative columns. All come film-protected.

Is the weld seam visible?

On satin, hairline and mirror finishes the seam is ground flush and polished — invisible on mirror, barely visible on satin; on mill finish the seam is visible.

What is the price of stainless square tube?

See the indicative FOB band per ton above (304 satin, 20–60 mm); per metre multiply by kg/m from the table. 316L is 40–55% more. Firm price within one working day.

Can you bend and fabricate the tube?

Yes — CNC bending, mitring, drilling, TIG welding and re-polishing, assembled balustrade posts and frames, pickled and passivated.

Is the tube structural?

A554 tube is ornamental; for load-bearing balustrade posts, canopies and frames order EN 10219 / EN 10296-2 tube with 3.1 mechanicals — same stock, certified differently.

Stainless Steel Square Tube
