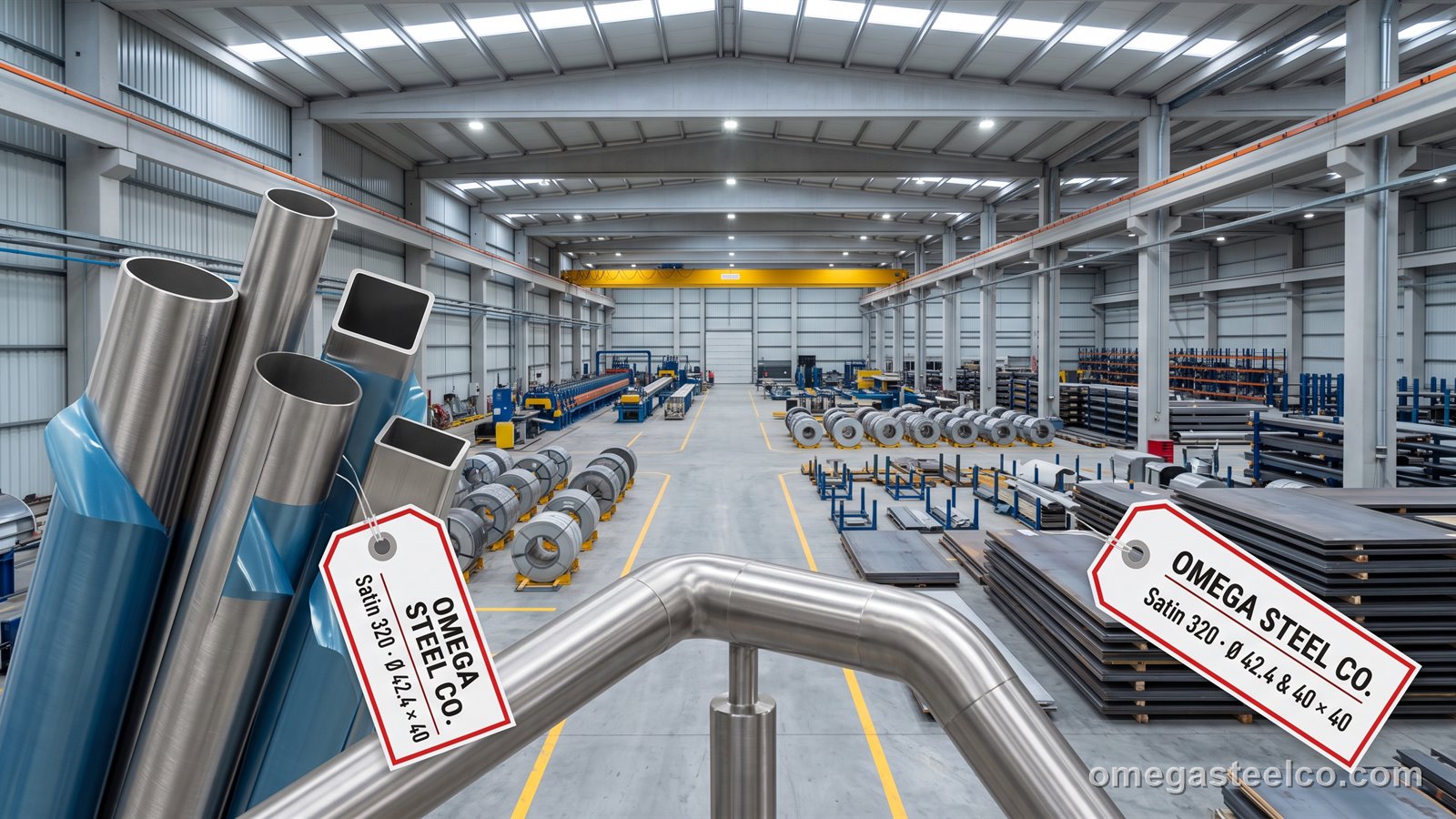

Satin Stainless Steel Tube Supplier Turkey

What is Satin stainless steel tube?

Satin — also called brushed, No. 4, 2J/2K or hairline when the lines are long and continuous — is a mechanical finish: after welding and sizing, the tube passes through polishing heads with abrasive belts of 180, 240 or 320 grit that cut a fine, directional grain along its length; the weld seam is ground flush first so that the grain runs uninterrupted around the circumference. The result reflects softly rather than mirror-like, hides the fingerprints, water spots and light scratches that ruin a mirror surface, and can be renewed on site with a Scotch-Brite pad or a 320-grit belt — which is why it is the default finish of handrails, balustrades, guardrails, furniture, shop fittings, lift and door trims, kitchen and hospital frames. Grit matters: 180 is coarse and industrial, 240 the common commercial finish, 320 the fine architectural one, and the fabricator must match tube, fittings and welds at the same grit or the joints show. Round satin tube follows the handrail diameters (Ø 25.4, 33.7, 38.1, 42.4, 48.3, 50.8, 63.5, 76.2, 101.6 mm) in 1.2–2 mm walls; square and rectangular from 12 × 12 to 100 × 100 and 20 × 40 to 60 × 120 in 1–2 mm. Grade 304 for indoor and inland, 316 within a few kilometres of the sea or in pools. We stock the full round and square range in 304 satin 320 and the handrail sizes in 316, and our workshop cuts, mandrel-bends and re-polishes welded assemblies to match.

Weight table — round satin tube (kg/m and per 6 m)

Polishing removes ≈ 0.05 mm of wall; weights are nominal.

Filter rows

Stainless round tube & pipe 304 / 316 — OD, wall and weight
OD (mm)	Wall (mm)	kg/m	kg per 6 m
20	1	0.473	2.84
20	1.2	0.562	3.37
20	1.5	0.691	4.15
20	2	0.897	5.38
20	2.5	1.09	6.54
20	3	1.271	7.63
21.3	1	0.506	3.04
21.3	1.2	0.601	3.61
21.3	1.5	0.74	4.44
21.3	2	0.962	5.77
21.3	2.5	1.171	7.03
21.3	3	1.368	8.21
22	1	0.523	3.14
22	1.2	0.622	3.73
22	1.5	0.766	4.6
22	2	0.997	5.98
22	2.5	1.215	7.29
22	3	1.42	8.52
25	1	0.598	3.59
25	1.2	0.712	4.27
25	1.5	0.878	5.27
25	2	1.146	6.88
25	2.5	1.401	8.41
25	3	1.644	9.86
26.9	1	0.645	3.87
26.9	1.2	0.768	4.61
26.9	1.5	0.949	5.69
26.9	2	1.241	7.45
26.9	2.5	1.52	9.12
26.9	3	1.786	10.72
28	1	0.673	4.04
28	1.2	0.801	4.81
28	1.5	0.99	5.94
28	2	1.295	7.77
28	2.5	1.588	9.53
28	3	1.868	11.21
30	1	0.722	4.33
30	1.2	0.861	5.17
30	1.5	1.065	6.39
30	2	1.395	8.37
30	2.5	1.713	10.28
30	3	2.018	12.11
32	1	0.772	4.63
32	1.2	0.921	5.53
32	1.5	1.14	6.84
32	2	1.495	8.97
32	2.5	1.837	11.02
32	3	2.167	13
33.7	1	0.815	4.89
33.7	1.2	0.972	5.83
33.7	1.5	1.203	7.22
33.7	2	1.579	9.47
33.7	2.5	1.943	11.66
33.7	3	2.294	13.76
35	1	0.847	5.08
35	1.2	1.01	6.06
35	1.5	1.252	7.51
35	2	1.644	9.86
35	2.5	2.024	12.14
35	3	2.392	14.35
38	1	0.922	5.53
38	1.2	1.1	6.6
38	1.5	1.364	8.18
38	2	1.794	10.76
38	2.5	2.211	13.27
38	3	2.616	15.7
40	1	0.972	5.83
40	1.2	1.16	6.96
40	1.5	1.439	8.63
40	2	1.893	11.36
40	2.5	2.336	14.02
40	3	2.765	16.59
42.4	1	1.031	6.19
42.4	1.2	1.232	7.39
42.4	1.5	1.528	9.17
42.4	2	2.013	12.08
42.4	2.5	2.485	14.91
42.4	3	2.945	17.67
44.5	1	1.084	6.5
44.5	1.2	1.294	7.76
44.5	1.5	1.607	9.64
44.5	2	2.118	12.71
44.5	2.5	2.616	15.7
44.5	3	3.102	18.61
48.3	1	1.178	7.07
48.3	1.2	1.408	8.45
48.3	1.5	1.749	10.49
48.3	2	2.307	13.84
48.3	2.5	2.853	17.12
48.3	3	3.386	20.32
50	1	1.221	7.33
50	1.2	1.459	8.75
50	1.5	1.812	10.87
50	2	2.392	14.35
50	2.5	2.958	17.75
50	3	3.513	21.08
50.8	1	1.241	7.45
50.8	1.2	1.483	8.9
50.8	1.5	1.842	11.05
50.8	2	2.431	14.59
50.8	2.5	3.008	18.05
50.8	3	3.572	21.43
54	1	1.32	7.92
54	1.2	1.578	9.47
54	1.5	1.962	11.77
54	2	2.591	15.55
54	2.5	3.208	19.25
54	3	3.812	22.87
57	1	1.395	8.37
57	1.2	1.668	10.01
57	1.5	2.074	12.44
57	2	2.74	16.44
57	2.5	3.394	20.36
57	3	4.036	24.22
60.3	1	1.477	8.86
60.3	1.2	1.767	10.6
60.3	1.5	2.197	13.18
60.3	2	2.905	17.43
60.3	2.5	3.6	21.6
60.3	3	4.283	25.7
63.5	1	1.557	9.34
63.5	1.2	1.862	11.17
63.5	1.5	2.317	13.9
63.5	2	3.064	18.38
63.5	2.5	3.799	22.79
63.5	3	4.522	27.13
70	1	1.719	10.31
70	1.2	2.057	12.34
70	1.5	2.56	15.36
70	2	3.388	20.33
70	2.5	4.204	25.22
70	3	5.007	30.04
76.1	1	1.871	11.23
76.1	1.2	2.239	13.43
76.1	1.5	2.788	16.73
76.1	2	3.692	22.15
76.1	2.5	4.584	27.5
76.1	3	5.463	32.78
80	1	1.968	11.81
80	1.2	2.356	14.14
80	1.5	2.933	17.6
80	2	3.886	23.32
80	2.5	4.827	28.96
80	3	5.755	34.53
84	1	2.068	12.41
84	1.2	2.475	14.85
84	1.5	3.083	18.5
84	2	4.086	24.52
84	2.5	5.076	30.46
84	3	6.054	36.32
88.9	1	2.19	13.14
88.9	1.2	2.622	15.73
88.9	1.5	3.266	19.6
88.9	2	4.33	25.98
88.9	2.5	5.381	32.29
88.9	3	6.42	38.52

Welded EN 10217-7 / ASTM A554 (ornamental) and A312 (pressure); density 7.93 kg/dm³; 6 m lengths.

Weight table — square and rectangular satin tube

Square and rectangular sizes as stocked in 304 satin; 316 in the common sizes to order.

Filter rows

Stainless square & rectangular tube 304 / 316 — weight per metre
Size (mm)	Wall (mm)	kg/m	kg per 6 m
12 × 12	1	0.358	2.15
15 × 10	1	0.37	2.22
15 × 10	1.2	0.44	2.64
15 × 10	1.5	0.54	3.24
15 × 15	1	0.453	2.72
15 × 15	1.2	0.538	3.23
15 × 15	1.5	0.661	3.97
16 × 16	1	0.485	2.91
16 × 16	1.2	0.576	3.46
16 × 16	1.5	0.709	4.25
19 × 19	1	0.567	3.4
19 × 19	1.2	0.675	4.05
19 × 19	1.5	0.832	4.99
19 × 19	2	1.09	6.54
20 × 10	1	0.453	2.72
20 × 10	1.2	0.538	3.23
20 × 10	1.5	0.661	3.97
20 × 15	1	0.533	3.2
20 × 15	1.2	0.634	3.8
20 × 15	1.5	0.781	4.69
20 × 15	2	1.016	6.1
20 × 20	1	0.613	3.68
20 × 20	1.2	0.729	4.37
20 × 20	1.5	0.901	5.41
20 × 20	2	1.176	7.06
22 × 22	1	0.677	4.06
22 × 22	1.2	0.806	4.84
22 × 22	1.5	0.996	5.98
22 × 22	2	1.303	7.82
25 × 10	1	0.533	3.2
25 × 10	1.2	0.634	3.8
25 × 10	1.5	0.781	4.69
25 × 15	1	0.613	3.68
25 × 15	1.2	0.729	4.37
25 × 15	1.5	0.901	5.41
25 × 15	2	1.176	7.06
25 × 20	1	0.693	4.16
25 × 20	1.2	0.825	4.95
25 × 20	1.5	1.02	6.12
25 × 20	2	1.335	8.01
25 × 25	1	0.772	4.63
25 × 25	1.2	0.921	5.53
25 × 25	1.5	1.14	6.84
25 × 25	2	1.495	8.97
25 × 25	2.5	1.837	11.02
25 × 25	3	2.167	13
30 × 10	1	0.613	3.68
30 × 10	1.2	0.729	4.37
30 × 10	1.5	0.901	5.41
30 × 10	2	1.176	7.06
30 × 15	1	0.693	4.16
30 × 15	1.2	0.825	4.95
30 × 15	1.5	1.02	6.12
30 × 15	2	1.335	8.01
30 × 20	1	0.772	4.63
30 × 20	1.2	0.921	5.53
30 × 20	1.5	1.14	6.84
30 × 20	2	1.495	8.97
30 × 20	2.5	1.837	11.02
30 × 20	3	2.167	13
30 × 25	1	0.84	5.04
30 × 25	1.2	1	6
30 × 25	1.5	1.24	7.44
30 × 25	2	1.63	9.78
30 × 30	1	0.932	5.59
30 × 30	1.2	1.112	6.67
30 × 30	1.5	1.379	8.27
30 × 30	2	1.814	10.88
30 × 30	2.5	2.236	13.42
30 × 30	3	2.645	15.87
32 × 32	1	0.96	5.76
32 × 32	1.2	1.15	6.9
32 × 32	1.5	1.42	8.52
32 × 32	2	1.87	11.22
32 × 32	2.5	2.31	13.86
32 × 32	3	2.74	16.44
35 × 15	1	0.76	4.56
35 × 15	1.2	0.91	5.46
35 × 15	1.5	1.13	6.78
35 × 15	2	1.48	8.88
35 × 20	1	0.852	5.11
35 × 20	1.2	1.017	6.1
35 × 20	1.5	1.259	7.55
35 × 20	2	1.654	9.92
35 × 20	2.5	2.036	12.22
35 × 20	3	2.406	14.44
35 × 35	1	1.091	6.55
35 × 35	1.2	1.304	7.82
35 × 35	1.5	1.618	9.71
35 × 35	2	2.133	12.8
35 × 35	2.5	2.635	15.81
35 × 35	3	3.124	18.74
40 × 10	1	0.76	4.56
40 × 10	1.2	0.91	5.46
40 × 10	1.5	1.13	6.78
40 × 10	2	1.48	8.88
40 × 15	1	0.852	5.11
40 × 15	1.2	1.017	6.1
40 × 15	1.5	1.259	7.55
40 × 15	2	1.654	9.92
40 × 15	2.5	2.036	12.22
40 × 15	3	2.406	14.44
40 × 20	1	0.932	5.59
40 × 20	1.2	1.112	6.67
40 × 20	1.5	1.379	8.27
40 × 20	2	1.814	10.88
40 × 20	2.5	2.236	13.42
40 × 20	3	2.645	15.87
40 × 30	1	1.091	6.55
40 × 30	1.2	1.304	7.82
40 × 30	1.5	1.618	9.71
40 × 30	2	2.133	12.8
40 × 30	2.5	2.635	15.81
40 × 30	3	3.124	18.74
40 × 40	1	1.251	7.51
40 × 40	1.2	1.495	8.97
40 × 40	1.5	1.858	11.15
40 × 40	2	2.452	14.71
40 × 40	2.5	3.033	18.2
40 × 40	3	3.602	21.61
40 × 40	4	4.703	28.22
45 × 15	1	0.91	5.46
45 × 15	1.2	1.09	6.54
45 × 15	1.5	1.35	8.1
45 × 15	2	1.78	10.68
45 × 20	1	0.99	5.94
45 × 20	1.2	1.18	7.08
45 × 20	1.5	1.46	8.76
45 × 20	2	1.92	11.52
45 × 45	1	1.41	8.46
45 × 45	1.2	1.686	10.12
45 × 45	1.5	2.097	12.58
45 × 45	2	2.771	16.63
45 × 45	2.5	3.432	20.59
45 × 45	3	4.081	24.49
50 × 10	1	0.91	5.46
50 × 10	1.2	1.09	6.54
50 × 10	1.5	1.35	8.1
50 × 10	2	1.78	10.68
50 × 20	1	1.091	6.55
50 × 20	1.2	1.304	7.82
50 × 20	1.5	1.618	9.71
50 × 20	2	2.133	12.8
50 × 20	2.5	2.635	15.81
50 × 20	3	3.124	18.74
50 × 25	1	1.171	7.03
50 × 25	1.2	1.399	8.39
50 × 25	1.5	1.738	10.43
50 × 25	2	2.292	13.75
50 × 25	2.5	2.834	17
50 × 25	3	3.363	20.18
50 × 30	1	1.251	7.51
50 × 30	1.2	1.495	8.97
50 × 30	1.5	1.858	11.15
50 × 30	2	2.452	14.71
50 × 30	2.5	3.033	18.2
50 × 30	3	3.602	21.61
50 × 40	1	1.41	8.46
50 × 40	1.2	1.686	10.12
50 × 40	1.5	2.097	12.58
50 × 40	2	2.771	16.63
50 × 40	2.5	3.432	20.59
50 × 40	3	4.081	24.49
50 × 50	1.2	1.878	11.27
50 × 50	1.5	2.336	14.02
50 × 50	2	3.09	18.54
50 × 50	2.5	3.831	22.99
50 × 50	3	4.559	27.35
50 × 50	4	5.979	35.87
50 × 50	5	7.349	44.09
60 × 20	1	1.251	7.51
60 × 20	1.2	1.495	8.97
60 × 20	1.5	1.858	11.15
60 × 20	2	2.452	14.71
60 × 20	2.5	3.033	18.2
60 × 20	3	3.602	21.61
60 × 30	1	1.41	8.46
60 × 30	1.2	1.686	10.12
60 × 30	1.5	2.097	12.58
60 × 30	2	2.771	16.63
60 × 30	2.5	3.432	20.59
60 × 30	3	4.081	24.49
60 × 40	1.2	1.878	11.27
60 × 40	1.5	2.336	14.02
60 × 40	2	3.09	18.54
60 × 40	2.5	3.831	22.99
60 × 40	3	4.559	27.35
60 × 40	4	5.979	35.87
60 × 60	1.5	2.814	16.88
60 × 60	2	3.728	22.37
60 × 60	2.5	4.628	27.77
60 × 60	3	5.516	33.1
60 × 60	4	7.255	43.53
60 × 60	5	8.943	53.66
70 × 20	1.2	1.65	9.9
70 × 20	1.5	2.05	12.3
70 × 20	2	2.71	16.26
70 × 20	2.5	3.36	20.16
70 × 20	3	4	24
70 × 30	1.5	2.29	13.74
70 × 30	2	3.03	18.18
70 × 30	2.5	3.76	22.56
70 × 30	3	4.48	26.88
70 × 40	1.5	2.575	15.45
70 × 40	2	3.409	20.45
70 × 40	2.5	4.229	25.37
70 × 40	3	5.038	30.23
70 × 70	1.5	3.293	19.76
70 × 70	2	4.366	26.2
70 × 70	2.5	5.426	32.56
70 × 70	3	6.473	38.84
70 × 70	4	8.531	51.19
70 × 70	5	10.538	63.23
80 × 20	1.5	2.29	13.74
80 × 20	2	3.03	18.18
80 × 20	2.5	3.76	22.56
80 × 20	3	4.48	26.88
80 × 30	1.5	2.53	15.18
80 × 30	2	3.35	20.1
80 × 30	2.5	4.16	24.96
80 × 30	3	4.96	29.76
80 × 40	1.5	2.814	16.88
80 × 40	2	3.728	22.37
80 × 40	2.5	4.628	27.77
80 × 40	3	5.516	33.1
80 × 40	4	7.255	43.53
80 × 40	5	8.943	53.66
80 × 40	6	10.582	63.49
80 × 50	1.5	3.01	18.06
80 × 50	2	4	24
80 × 50	2.5	4.96	29.76
80 × 50	3	5.92	35.52
80 × 50	4	7.79	46.74
80 × 50	5	9.62	57.72
80 × 50	6	11.39	68.34
80 × 60	1.5	3.293	19.76
80 × 60	2	4.366	26.2
80 × 60	2.5	5.426	32.56
80 × 60	3	6.473	38.84
80 × 60	4	8.531	51.19
80 × 60	5	10.538	63.23
80 × 60	6	12.496	74.98
80 × 80	1.5	3.771	22.63
80 × 80	2	5.004	30.02
80 × 80	2.5	6.223	37.34
80 × 80	3	7.43	44.58
80 × 80	4	9.807	58.84
80 × 80	5	12.133	72.8
80 × 80	6	14.41	86.46
100 × 20	1.5	2.76	16.56
100 × 20	2	3.65	21.9
100 × 20	2.5	4.54	27.24
100 × 20	3	5.41	32.46
100 × 30	1.5	3.01	18.06
100 × 30	2	4	24
100 × 30	2.5	4.96	29.76
100 × 30	3	5.92	35.52
100 × 40	1.5	3.293	19.76
100 × 40	2	4.366	26.2
100 × 40	2.5	5.426	32.56
100 × 40	3	6.473	38.84
100 × 40	4	8.531	51.19
100 × 40	5	10.538	63.23
100 × 40	6	12.496	74.98
100 × 50	1.5	3.532	21.19
100 × 50	2	4.685	28.11
100 × 50	2.5	5.824	34.94
100 × 50	3	6.952	41.71
100 × 50	4	9.169	55.01
100 × 50	5	11.336	68.02
100 × 50	6	13.453	80.72
100 × 60	1.5	3.771	22.63
100 × 60	2	5.004	30.02
100 × 60	2.5	6.223	37.34
100 × 60	3	7.43	44.58
100 × 60	4	9.807	58.84
100 × 60	5	12.133	72.8
100 × 60	6	14.41	86.46
100 × 80	1.5	4.25	25.5
100 × 80	2	5.641	33.85
100 × 80	2.5	7.021	42.13
100 × 80	3	8.387	50.32
100 × 80	4	11.083	66.5
100 × 80	5	13.728	82.37
100 × 80	6	16.324	97.94
100 × 100	1.5	4.728	28.37
100 × 100	2	6.279	37.67
100 × 100	2.5	7.818	46.91
100 × 100	3	9.344	56.06
100 × 100	4	12.359	74.15
100 × 100	5	15.323	91.94
100 × 100	6	18.237	109.42
120 × 40	1.5	3.771	22.63
120 × 40	2	5.004	30.02
120 × 40	2.5	6.223	37.34
120 × 40	3	7.43	44.58
120 × 40	4	9.807	58.84
120 × 40	5	12.133	72.8
120 × 40	6	14.41	86.46
120 × 60	1.5	4.25	25.5
120 × 60	2	5.641	33.85
120 × 60	2.5	7.021	42.13
120 × 60	3	8.387	50.32
120 × 60	4	11.083	66.5
120 × 60	5	13.728	82.37
120 × 60	6	16.324	97.94
120 × 80	1.5	4.728	28.37
120 × 80	2	6.279	37.67
120 × 80	2.5	7.818	46.91
120 × 80	3	9.344	56.06
120 × 80	4	12.359	74.15
120 × 80	5	15.323	91.94
120 × 80	6	18.237	109.42
120 × 120	2	7.555	45.33
120 × 120	2.5	9.413	56.48
120 × 120	3	11.258	67.55
120 × 120	4	14.91	89.46
120 × 120	5	18.513	111.08
120 × 120	6	22.065	132.39
140 × 80	3	10.301	61.81
140 × 80	4	13.635	81.81
140 × 80	5	16.918	101.51
140 × 80	6	20.151	120.91
140 × 140	2	8.831	52.99
140 × 140	2.5	11.008	66.05
140 × 140	3	13.172	79.03
140 × 140	4	17.462	104.77
140 × 140	5	21.703	130.22
140 × 140	6	25.893	155.36
150 × 50	3	9.344	56.06
150 × 50	4	12.359	74.15
150 × 50	5	15.323	91.94
150 × 50	6	18.237	109.42
150 × 100	3	11.736	70.42
150 × 100	4	15.548	93.29
150 × 100	5	19.31	115.86
150 × 100	6	23.022	138.13
150 × 150	2	9.469	56.81
150 × 150	2.5	11.805	70.83
150 × 150	3	14.129	84.77
150 × 150	4	18.738	112.43
150 × 150	5	23.298	139.79
150 × 150	6	27.807	166.84
160 × 80	3	11.258	67.55
160 × 80	4	14.91	89.46
160 × 80	5	18.513	111.08
160 × 80	6	22.065	132.39
200 × 100	3	14.129	84.77
200 × 100	4	18.738	112.43
200 × 100	5	23.298	139.79
200 × 100	6	27.807	166.84
200 × 200	2	12.659	75.95
200 × 200	2.5	15.793	94.76
200 × 200	3	18.913	113.48
200 × 200	4	25.118	150.71
200 × 200	5	31.272	187.63
200 × 200	6	37.376	224.26

EN 10219 / ASTM A554; mill, 180/240 grit satin or mirror finish.

Grades, standards and tolerances

Satin stainless steel tube — steel grades and standards
Grade / standard	Yield (MPa)	Note
1.4301 / 304 satin	≥ 210	indoor, inland — the stock grade
1.4401 / 316 satin	≥ 220	coastal, pool, marine
1.4307 / 304L	≥ 200	heavy welded assemblies
1.4016 / 430 satin	≥ 260	decorative trims, indoor dry, to order

Finish designations: EN 10088-2 2J (brushed) / 2K (satin, Ra ≤ 0.5 µm); ASTM No. 4. Grit 320 ≈ Ra 0.3–0.4 µm.

Grit guide and handrail sizes

Satin grits, their look, and the tube sizes each application uses
Grit	Ra (µm)	Look	Typical use	Common sizes
180	0.6–0.8	coarse brushed, visible lines	industrial rails, trolleys, dairies	Ø 33.7–48.3 × 2; 40 × 40 × 2
240	0.4–0.5	standard commercial satin	handrails, shopfitting, furniture	Ø 42.4 / 50.8 × 1.5; 40 × 40 × 1.5
320	0.3–0.4	fine architectural satin	balustrades, lift trims, doors, kitchens	Ø 42.4 / 50.8 × 1.5; 50 × 50, 40 × 80 × 1.5
400 / hairline	0.2–0.3	long continuous lines	façade, cladding trims	square / rectangular 1.2–1.5
Scotch-Brite	0.3–0.5	random fine	site repair of 240–320	—

Handrail codes: EN 1090 / EN 13200 railings typically Ø 42.4 or 50.8 mm; balustrade posts 40 × 40 or Ø 42.4 × 2; infill Ø 12–16 mm bar or 10 mm glass.

Lengths and stock

304 satin 320: round Ø 12–101.6 mm × 1–2 mm and square / rectangular 12 × 12 to 100 × 100 and 20 × 40 to 50 × 100 × 1–2 mm in 6 m; 316 satin in the handrail sizes Ø 33.7–50.8 and 40 × 40. Matching elbows, end caps, flanges, glass clamps and handrail brackets in the same finish from stock; other grits and sizes in 2–3 weeks.

Cutting, bending, welding and matching the finish

Cut with a cold saw or tube laser through the film; mandrel-bend round tube at ≥ 2.5 × OD and square at ≥ 3 × side (polish after bending on visible bends); TIG-weld with 308L / 316L and argon purge, grind the bead flush, then re-satin the joint lengthwise with the same grit — across the grain shows. Passivate or pickle heat tint before polishing. Remove the film within 6 months of delivery and never store satin tube in contact with carbon steel.

Where it is used

Handrails, balustrades and guardrails (Ø 42.4 / 50.8 mm)
Furniture, tables, chairs and display frames
Shop fittings, counters and sign supports
Lift, door and façade trims
Kitchen, hospital, laboratory and hygienic frames
Bollards, bike stands and street furniture (316)

Satin vs mirror vs 2B

Mirror tube is for decorative and signage work where reflection is wanted and fingerprints are tolerated; 2B industrial tube (304 pipe) for hidden, ducted and process use. Satin is the architectural middle and the one with fittings to match. For chloride sites specify the 316 version; for the square and rectangular range see stainless square tube.

Price

Satin tube is priced per ton (or per piece) from the stainless list with a polishing premium over 2B of roughly 5–8 %; 316 satin about 40 % above 304. The bands below are the month\'s indicative FOB Istanbul ranges for 304 and 316 in the common sizes.

Satin 304 round / square · 12–76 mm3 750 – 4 150USD/MT · FOB Istanbul

Satin 316 round / square4 650 – 5 050USD/MT · FOB Istanbul

Bands from our weekly export list (September 2026), FOB Istanbul, full-container quantities, excluding freight and certificates. Firm price per project on RFQ within one working day.

Export and packing

Satin tube is wrapped tube by tube in PE film, bundled in 50–200 kg packs with cardboard corners and PE outer wrap, and crated for mixed orders so the finish arrives unmarked; 12–14 t per 20', 18–20 t per 40' HC in 6 m. Fittings boxed separately. HS 7306.40 / 7306.61.

Term	Detail
MOQ	500 kg
Incoterms	FOB Istanbul · CIF / CFR Gulf, Africa · DAP EU, Balkans, Iraq, Caucasus · DAP Aktau
Lead time	Stock 3–5 working days; special sizes and 316 rectangular 2–3 weeks
Packing	Each tube in PE film, bundles of 50–200 kg in PE and cardboard, crated
Container / truck	20' ≈ 12–14 t; 40' HC ≈ 18–20 t
Documents	Invoice, packing list, EN 10204 3.1, certificate of origin; 3.2 and PED on request
Payment	30% advance, balance against B/L copy; L/C at sight above 100 t

Certificates

Satin tube ships with the strip mill's EN 10204 3.1 certificate (grade, chemistry, mechanicals) and the tube mill's record of size, wall and finish grit; a finish sample is supplied on request so the fabricator can match fittings and welds.

How to order

Specify grade (304 / 316), shape and size (OD or side × wall), grit (180 / 240 / 320), length, quantity in pieces or metres, film, and the fittings to match; state indoor / coastal use.

Standards

EN 10296-2 / ASTM A554 — welded mechanical / ornamental tube
EN 10088-2 finish 2J / 2K (satin); ASTM No. 4
EN 10204 3.1

Grades

Grade data sheets (chemistry, mechanicals, equivalents) are on our reference site: 1.4301 · 1.4401 · 1.4307

Frequently asked questions

What is satin finish on stainless tube?

A brushed, directional finish produced with 180–320 grit belts along the tube (EN 2J/2K, ASTM No. 4) — soft sheen, hides fingerprints and scratches, standard for handrails and architecture.

Which grit should I choose?

240 for commercial handrails and furniture, 320 for architectural balustrades and interiors, 180 for industrial rails; match tube, fittings and welds at one grit.

What size tube for a handrail?

Ø 42.4 × 1.5–2 mm or Ø 50.8 × 1.5 mm for the rail; 40 × 40 × 2 or Ø 42.4 × 2 for posts; Ø 12–16 mm bar for infill.

Can a satin finish be repaired on site?

Yes — lightly with a Scotch-Brite pad along the grain or properly with a 240/320 belt; mirror finishes cannot be repaired on site.

304 or 316 satin tube outdoors?

304 inland; 316 within a few kilometres of the sea, in pools or where de-icing salt is used.
