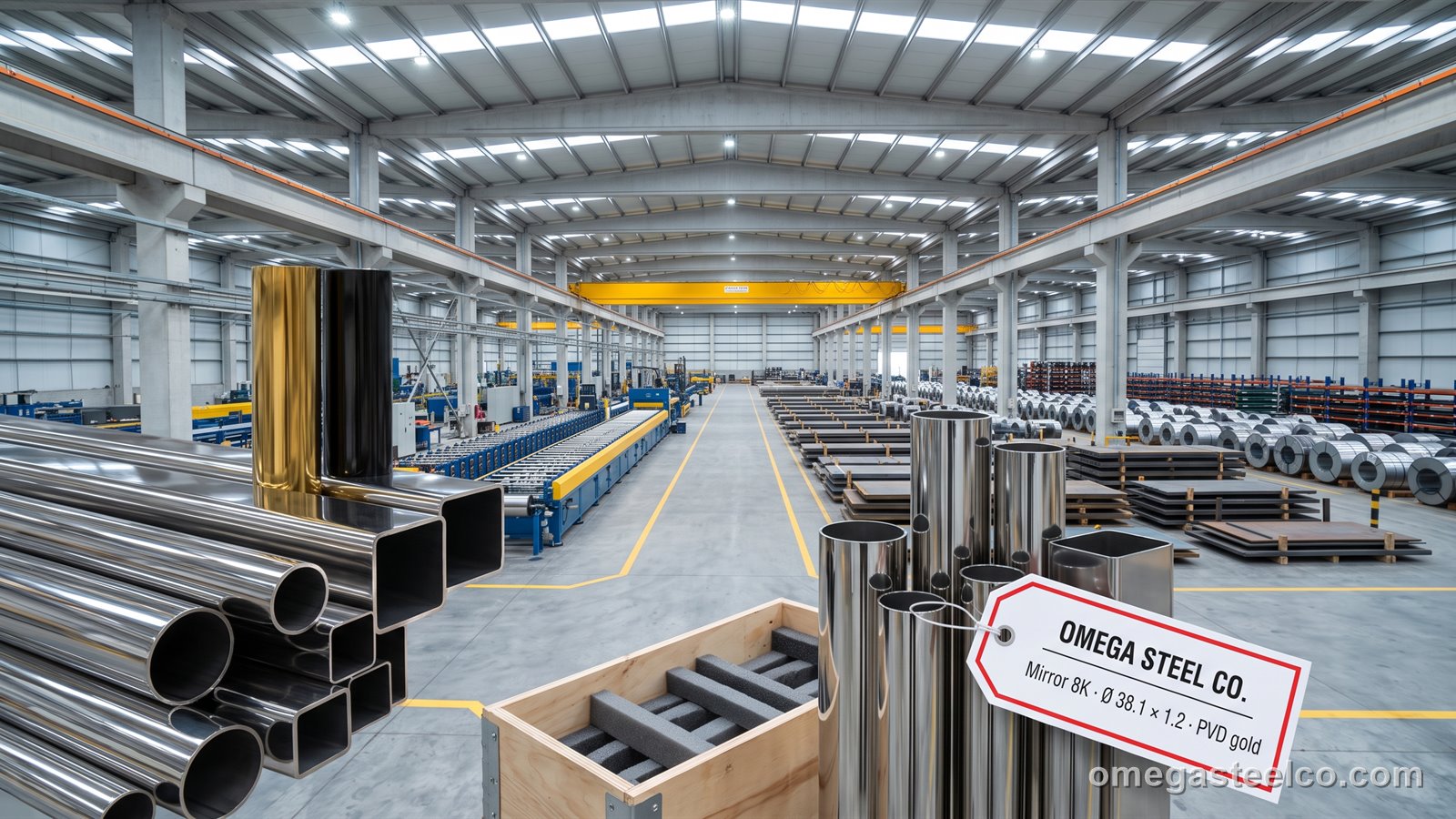

Mirror Stainless Steel Tube Supplier Turkey

What is Mirror stainless steel tube?

Mirror tube is produced by taking a satin-polished tube through successively finer belts (400, 600) and finishing with cloth buffing wheels and polishing compound until the surface reflects an image without distortion — designated No. 8 in the US system, 2P in EN 10088-2, 8K in the Asian trade, Ra below 0.05 µm. The base tube is the same welded 304 or 316 ornamental tube as satin tube, with the weld ground flush before polishing; walls 1–1.5 mm are typical because a thicker wall does not improve the look and the polishing cost is per surface, not per kilo. Mirror is the finish of luxury interiors — hotel lobbies, boutiques, showrooms, lifts, restaurant and bar railings, display stands, signage and lettering supports, furniture legs and decorative screens — and the necessary base for PVD (physical vapour deposition) colouring, in which titanium-nitride and related coatings a few tenths of a micron thick turn the tube gold, rose-gold, champagne, bronze or black while keeping the mirror depth; PVD tube is ordered per colour and size in lots of 100 pieces and arrives in 2–4 weeks. The disadvantages are practical: every fingerprint, water spot and scratch shows, the finish cannot be renewed on site (only re-polished in the shop), and welds must be hidden or re-buffed by a specialist. We stock 304 mirror in round Ø 12–101.6 mm and square 12 × 12 to 80 × 80 mm, the handrail sizes in 316 mirror for coastal projects, and matching mirror elbows, end caps and flanges.

Weight table — round mirror tube (kg/m and per 6 m)

Mirror tube is normally 1–1.5 mm wall; heavier walls to order.

Filter rows

Stainless round tube & pipe 304 / 316 — OD, wall and weight
OD (mm)	Wall (mm)	kg/m	kg per 6 m
20	1	0.473	2.84
20	1.2	0.562	3.37
20	1.5	0.691	4.15
20	2	0.897	5.38
20	2.5	1.09	6.54
20	3	1.271	7.63
21.3	1	0.506	3.04
21.3	1.2	0.601	3.61
21.3	1.5	0.74	4.44
21.3	2	0.962	5.77
21.3	2.5	1.171	7.03
21.3	3	1.368	8.21
22	1	0.523	3.14
22	1.2	0.622	3.73
22	1.5	0.766	4.6
22	2	0.997	5.98
22	2.5	1.215	7.29
22	3	1.42	8.52
25	1	0.598	3.59
25	1.2	0.712	4.27
25	1.5	0.878	5.27
25	2	1.146	6.88
25	2.5	1.401	8.41
25	3	1.644	9.86
26.9	1	0.645	3.87
26.9	1.2	0.768	4.61
26.9	1.5	0.949	5.69
26.9	2	1.241	7.45
26.9	2.5	1.52	9.12
26.9	3	1.786	10.72
28	1	0.673	4.04
28	1.2	0.801	4.81
28	1.5	0.99	5.94
28	2	1.295	7.77
28	2.5	1.588	9.53
28	3	1.868	11.21
30	1	0.722	4.33
30	1.2	0.861	5.17
30	1.5	1.065	6.39
30	2	1.395	8.37
30	2.5	1.713	10.28
30	3	2.018	12.11
32	1	0.772	4.63
32	1.2	0.921	5.53
32	1.5	1.14	6.84
32	2	1.495	8.97
32	2.5	1.837	11.02
32	3	2.167	13
33.7	1	0.815	4.89
33.7	1.2	0.972	5.83
33.7	1.5	1.203	7.22
33.7	2	1.579	9.47
33.7	2.5	1.943	11.66
33.7	3	2.294	13.76
35	1	0.847	5.08
35	1.2	1.01	6.06
35	1.5	1.252	7.51
35	2	1.644	9.86
35	2.5	2.024	12.14
35	3	2.392	14.35
38	1	0.922	5.53
38	1.2	1.1	6.6
38	1.5	1.364	8.18
38	2	1.794	10.76
38	2.5	2.211	13.27
38	3	2.616	15.7
40	1	0.972	5.83
40	1.2	1.16	6.96
40	1.5	1.439	8.63
40	2	1.893	11.36
40	2.5	2.336	14.02
40	3	2.765	16.59
42.4	1	1.031	6.19
42.4	1.2	1.232	7.39
42.4	1.5	1.528	9.17
42.4	2	2.013	12.08
42.4	2.5	2.485	14.91
42.4	3	2.945	17.67
44.5	1	1.084	6.5
44.5	1.2	1.294	7.76
44.5	1.5	1.607	9.64
44.5	2	2.118	12.71
44.5	2.5	2.616	15.7
44.5	3	3.102	18.61
48.3	1	1.178	7.07
48.3	1.2	1.408	8.45
48.3	1.5	1.749	10.49
48.3	2	2.307	13.84
48.3	2.5	2.853	17.12
48.3	3	3.386	20.32
50	1	1.221	7.33
50	1.2	1.459	8.75
50	1.5	1.812	10.87
50	2	2.392	14.35
50	2.5	2.958	17.75
50	3	3.513	21.08
50.8	1	1.241	7.45
50.8	1.2	1.483	8.9
50.8	1.5	1.842	11.05
50.8	2	2.431	14.59
50.8	2.5	3.008	18.05
50.8	3	3.572	21.43
54	1	1.32	7.92
54	1.2	1.578	9.47
54	1.5	1.962	11.77
54	2	2.591	15.55
54	2.5	3.208	19.25
54	3	3.812	22.87
57	1	1.395	8.37
57	1.2	1.668	10.01
57	1.5	2.074	12.44
57	2	2.74	16.44
57	2.5	3.394	20.36
57	3	4.036	24.22
60.3	1	1.477	8.86
60.3	1.2	1.767	10.6
60.3	1.5	2.197	13.18
60.3	2	2.905	17.43
60.3	2.5	3.6	21.6
60.3	3	4.283	25.7
63.5	1	1.557	9.34
63.5	1.2	1.862	11.17
63.5	1.5	2.317	13.9
63.5	2	3.064	18.38
63.5	2.5	3.799	22.79
63.5	3	4.522	27.13
70	1	1.719	10.31
70	1.2	2.057	12.34
70	1.5	2.56	15.36
70	2	3.388	20.33
70	2.5	4.204	25.22
70	3	5.007	30.04
76.1	1	1.871	11.23
76.1	1.2	2.239	13.43
76.1	1.5	2.788	16.73
76.1	2	3.692	22.15
76.1	2.5	4.584	27.5
76.1	3	5.463	32.78
80	1	1.968	11.81
80	1.2	2.356	14.14
80	1.5	2.933	17.6
80	2	3.886	23.32
80	2.5	4.827	28.96
80	3	5.755	34.53
84	1	2.068	12.41
84	1.2	2.475	14.85
84	1.5	3.083	18.5
84	2	4.086	24.52
84	2.5	5.076	30.46
84	3	6.054	36.32
88.9	1	2.19	13.14
88.9	1.2	2.622	15.73
88.9	1.5	3.266	19.6
88.9	2	4.33	25.98
88.9	2.5	5.381	32.29
88.9	3	6.42	38.52

Welded EN 10217-7 / ASTM A554 (ornamental) and A312 (pressure); density 7.93 kg/dm³; 6 m lengths.

Weight table — square mirror tube

Stocked in 304 mirror up to 80 × 80 mm.

Filter rows

Stainless square & rectangular tube 304 / 316 — weight per metre
Size (mm)	Wall (mm)	kg/m	kg per 6 m
12 × 12	1	0.358	2.15
15 × 10	1	0.37	2.22
15 × 10	1.2	0.44	2.64
15 × 10	1.5	0.54	3.24
15 × 15	1	0.453	2.72
15 × 15	1.2	0.538	3.23
15 × 15	1.5	0.661	3.97
16 × 16	1	0.485	2.91
16 × 16	1.2	0.576	3.46
16 × 16	1.5	0.709	4.25
19 × 19	1	0.567	3.4
19 × 19	1.2	0.675	4.05
19 × 19	1.5	0.832	4.99
19 × 19	2	1.09	6.54
20 × 10	1	0.453	2.72
20 × 10	1.2	0.538	3.23
20 × 10	1.5	0.661	3.97
20 × 15	1	0.533	3.2
20 × 15	1.2	0.634	3.8
20 × 15	1.5	0.781	4.69
20 × 15	2	1.016	6.1
20 × 20	1	0.613	3.68
20 × 20	1.2	0.729	4.37
20 × 20	1.5	0.901	5.41
20 × 20	2	1.176	7.06
22 × 22	1	0.677	4.06
22 × 22	1.2	0.806	4.84
22 × 22	1.5	0.996	5.98
22 × 22	2	1.303	7.82
25 × 10	1	0.533	3.2
25 × 10	1.2	0.634	3.8
25 × 10	1.5	0.781	4.69
25 × 15	1	0.613	3.68
25 × 15	1.2	0.729	4.37
25 × 15	1.5	0.901	5.41
25 × 15	2	1.176	7.06
25 × 20	1	0.693	4.16
25 × 20	1.2	0.825	4.95
25 × 20	1.5	1.02	6.12
25 × 20	2	1.335	8.01
25 × 25	1	0.772	4.63
25 × 25	1.2	0.921	5.53
25 × 25	1.5	1.14	6.84
25 × 25	2	1.495	8.97
25 × 25	2.5	1.837	11.02
25 × 25	3	2.167	13
30 × 10	1	0.613	3.68
30 × 10	1.2	0.729	4.37
30 × 10	1.5	0.901	5.41
30 × 10	2	1.176	7.06
30 × 15	1	0.693	4.16
30 × 15	1.2	0.825	4.95
30 × 15	1.5	1.02	6.12
30 × 15	2	1.335	8.01
30 × 20	1	0.772	4.63
30 × 20	1.2	0.921	5.53
30 × 20	1.5	1.14	6.84
30 × 20	2	1.495	8.97
30 × 20	2.5	1.837	11.02
30 × 20	3	2.167	13
30 × 25	1	0.84	5.04
30 × 25	1.2	1	6
30 × 25	1.5	1.24	7.44
30 × 25	2	1.63	9.78
30 × 30	1	0.932	5.59
30 × 30	1.2	1.112	6.67
30 × 30	1.5	1.379	8.27
30 × 30	2	1.814	10.88
30 × 30	2.5	2.236	13.42
30 × 30	3	2.645	15.87
32 × 32	1	0.96	5.76
32 × 32	1.2	1.15	6.9
32 × 32	1.5	1.42	8.52
32 × 32	2	1.87	11.22
32 × 32	2.5	2.31	13.86
32 × 32	3	2.74	16.44
35 × 15	1	0.76	4.56
35 × 15	1.2	0.91	5.46
35 × 15	1.5	1.13	6.78
35 × 15	2	1.48	8.88
35 × 20	1	0.852	5.11
35 × 20	1.2	1.017	6.1
35 × 20	1.5	1.259	7.55
35 × 20	2	1.654	9.92
35 × 20	2.5	2.036	12.22
35 × 20	3	2.406	14.44
35 × 35	1	1.091	6.55
35 × 35	1.2	1.304	7.82
35 × 35	1.5	1.618	9.71
35 × 35	2	2.133	12.8
35 × 35	2.5	2.635	15.81
35 × 35	3	3.124	18.74
40 × 10	1	0.76	4.56
40 × 10	1.2	0.91	5.46
40 × 10	1.5	1.13	6.78
40 × 10	2	1.48	8.88
40 × 15	1	0.852	5.11
40 × 15	1.2	1.017	6.1
40 × 15	1.5	1.259	7.55
40 × 15	2	1.654	9.92
40 × 15	2.5	2.036	12.22
40 × 15	3	2.406	14.44
40 × 20	1	0.932	5.59
40 × 20	1.2	1.112	6.67
40 × 20	1.5	1.379	8.27
40 × 20	2	1.814	10.88
40 × 20	2.5	2.236	13.42
40 × 20	3	2.645	15.87
40 × 30	1	1.091	6.55
40 × 30	1.2	1.304	7.82
40 × 30	1.5	1.618	9.71
40 × 30	2	2.133	12.8
40 × 30	2.5	2.635	15.81
40 × 30	3	3.124	18.74
40 × 40	1	1.251	7.51
40 × 40	1.2	1.495	8.97
40 × 40	1.5	1.858	11.15
40 × 40	2	2.452	14.71
40 × 40	2.5	3.033	18.2
40 × 40	3	3.602	21.61
40 × 40	4	4.703	28.22
45 × 15	1	0.91	5.46
45 × 15	1.2	1.09	6.54
45 × 15	1.5	1.35	8.1
45 × 15	2	1.78	10.68
45 × 20	1	0.99	5.94
45 × 20	1.2	1.18	7.08
45 × 20	1.5	1.46	8.76
45 × 20	2	1.92	11.52
45 × 45	1	1.41	8.46
45 × 45	1.2	1.686	10.12
45 × 45	1.5	2.097	12.58
45 × 45	2	2.771	16.63
45 × 45	2.5	3.432	20.59
45 × 45	3	4.081	24.49
50 × 10	1	0.91	5.46
50 × 10	1.2	1.09	6.54
50 × 10	1.5	1.35	8.1
50 × 10	2	1.78	10.68
50 × 20	1	1.091	6.55
50 × 20	1.2	1.304	7.82
50 × 20	1.5	1.618	9.71
50 × 20	2	2.133	12.8
50 × 20	2.5	2.635	15.81
50 × 20	3	3.124	18.74
50 × 25	1	1.171	7.03
50 × 25	1.2	1.399	8.39
50 × 25	1.5	1.738	10.43
50 × 25	2	2.292	13.75
50 × 25	2.5	2.834	17
50 × 25	3	3.363	20.18
50 × 30	1	1.251	7.51
50 × 30	1.2	1.495	8.97
50 × 30	1.5	1.858	11.15
50 × 30	2	2.452	14.71
50 × 30	2.5	3.033	18.2
50 × 30	3	3.602	21.61
50 × 40	1	1.41	8.46
50 × 40	1.2	1.686	10.12
50 × 40	1.5	2.097	12.58
50 × 40	2	2.771	16.63
50 × 40	2.5	3.432	20.59
50 × 40	3	4.081	24.49
50 × 50	1.2	1.878	11.27
50 × 50	1.5	2.336	14.02
50 × 50	2	3.09	18.54
50 × 50	2.5	3.831	22.99
50 × 50	3	4.559	27.35
50 × 50	4	5.979	35.87
50 × 50	5	7.349	44.09
60 × 20	1	1.251	7.51
60 × 20	1.2	1.495	8.97
60 × 20	1.5	1.858	11.15
60 × 20	2	2.452	14.71
60 × 20	2.5	3.033	18.2
60 × 20	3	3.602	21.61
60 × 30	1	1.41	8.46
60 × 30	1.2	1.686	10.12
60 × 30	1.5	2.097	12.58
60 × 30	2	2.771	16.63
60 × 30	2.5	3.432	20.59
60 × 30	3	4.081	24.49
60 × 40	1.2	1.878	11.27
60 × 40	1.5	2.336	14.02
60 × 40	2	3.09	18.54
60 × 40	2.5	3.831	22.99
60 × 40	3	4.559	27.35
60 × 40	4	5.979	35.87
60 × 60	1.5	2.814	16.88
60 × 60	2	3.728	22.37
60 × 60	2.5	4.628	27.77
60 × 60	3	5.516	33.1
60 × 60	4	7.255	43.53
60 × 60	5	8.943	53.66
70 × 20	1.2	1.65	9.9
70 × 20	1.5	2.05	12.3
70 × 20	2	2.71	16.26
70 × 20	2.5	3.36	20.16
70 × 20	3	4	24
70 × 30	1.5	2.29	13.74
70 × 30	2	3.03	18.18
70 × 30	2.5	3.76	22.56
70 × 30	3	4.48	26.88
70 × 40	1.5	2.575	15.45
70 × 40	2	3.409	20.45
70 × 40	2.5	4.229	25.37
70 × 40	3	5.038	30.23
70 × 70	1.5	3.293	19.76
70 × 70	2	4.366	26.2
70 × 70	2.5	5.426	32.56
70 × 70	3	6.473	38.84
70 × 70	4	8.531	51.19
70 × 70	5	10.538	63.23
80 × 20	1.5	2.29	13.74
80 × 20	2	3.03	18.18
80 × 20	2.5	3.76	22.56
80 × 20	3	4.48	26.88
80 × 30	1.5	2.53	15.18
80 × 30	2	3.35	20.1
80 × 30	2.5	4.16	24.96
80 × 30	3	4.96	29.76
80 × 40	1.5	2.814	16.88
80 × 40	2	3.728	22.37
80 × 40	2.5	4.628	27.77
80 × 40	3	5.516	33.1
80 × 40	4	7.255	43.53
80 × 40	5	8.943	53.66
80 × 40	6	10.582	63.49
80 × 50	1.5	3.01	18.06
80 × 50	2	4	24
80 × 50	2.5	4.96	29.76
80 × 50	3	5.92	35.52
80 × 50	4	7.79	46.74
80 × 50	5	9.62	57.72
80 × 50	6	11.39	68.34
80 × 60	1.5	3.293	19.76
80 × 60	2	4.366	26.2
80 × 60	2.5	5.426	32.56
80 × 60	3	6.473	38.84
80 × 60	4	8.531	51.19
80 × 60	5	10.538	63.23
80 × 60	6	12.496	74.98
80 × 80	1.5	3.771	22.63
80 × 80	2	5.004	30.02
80 × 80	2.5	6.223	37.34
80 × 80	3	7.43	44.58
80 × 80	4	9.807	58.84
80 × 80	5	12.133	72.8
80 × 80	6	14.41	86.46
100 × 20	1.5	2.76	16.56
100 × 20	2	3.65	21.9
100 × 20	2.5	4.54	27.24
100 × 20	3	5.41	32.46
100 × 30	1.5	3.01	18.06
100 × 30	2	4	24
100 × 30	2.5	4.96	29.76
100 × 30	3	5.92	35.52
100 × 40	1.5	3.293	19.76
100 × 40	2	4.366	26.2
100 × 40	2.5	5.426	32.56
100 × 40	3	6.473	38.84
100 × 40	4	8.531	51.19
100 × 40	5	10.538	63.23
100 × 40	6	12.496	74.98
100 × 50	1.5	3.532	21.19
100 × 50	2	4.685	28.11
100 × 50	2.5	5.824	34.94
100 × 50	3	6.952	41.71
100 × 50	4	9.169	55.01
100 × 50	5	11.336	68.02
100 × 50	6	13.453	80.72
100 × 60	1.5	3.771	22.63
100 × 60	2	5.004	30.02
100 × 60	2.5	6.223	37.34
100 × 60	3	7.43	44.58
100 × 60	4	9.807	58.84
100 × 60	5	12.133	72.8
100 × 60	6	14.41	86.46
100 × 80	1.5	4.25	25.5
100 × 80	2	5.641	33.85
100 × 80	2.5	7.021	42.13
100 × 80	3	8.387	50.32
100 × 80	4	11.083	66.5
100 × 80	5	13.728	82.37
100 × 80	6	16.324	97.94
100 × 100	1.5	4.728	28.37
100 × 100	2	6.279	37.67
100 × 100	2.5	7.818	46.91
100 × 100	3	9.344	56.06
100 × 100	4	12.359	74.15
100 × 100	5	15.323	91.94
100 × 100	6	18.237	109.42
120 × 40	1.5	3.771	22.63
120 × 40	2	5.004	30.02
120 × 40	2.5	6.223	37.34
120 × 40	3	7.43	44.58
120 × 40	4	9.807	58.84
120 × 40	5	12.133	72.8
120 × 40	6	14.41	86.46
120 × 60	1.5	4.25	25.5
120 × 60	2	5.641	33.85
120 × 60	2.5	7.021	42.13
120 × 60	3	8.387	50.32
120 × 60	4	11.083	66.5
120 × 60	5	13.728	82.37
120 × 60	6	16.324	97.94
120 × 80	1.5	4.728	28.37
120 × 80	2	6.279	37.67
120 × 80	2.5	7.818	46.91
120 × 80	3	9.344	56.06
120 × 80	4	12.359	74.15
120 × 80	5	15.323	91.94
120 × 80	6	18.237	109.42
120 × 120	2	7.555	45.33
120 × 120	2.5	9.413	56.48
120 × 120	3	11.258	67.55
120 × 120	4	14.91	89.46
120 × 120	5	18.513	111.08
120 × 120	6	22.065	132.39
140 × 80	3	10.301	61.81
140 × 80	4	13.635	81.81
140 × 80	5	16.918	101.51
140 × 80	6	20.151	120.91
140 × 140	2	8.831	52.99
140 × 140	2.5	11.008	66.05
140 × 140	3	13.172	79.03
140 × 140	4	17.462	104.77
140 × 140	5	21.703	130.22
140 × 140	6	25.893	155.36
150 × 50	3	9.344	56.06
150 × 50	4	12.359	74.15
150 × 50	5	15.323	91.94
150 × 50	6	18.237	109.42
150 × 100	3	11.736	70.42
150 × 100	4	15.548	93.29
150 × 100	5	19.31	115.86
150 × 100	6	23.022	138.13
150 × 150	2	9.469	56.81
150 × 150	2.5	11.805	70.83
150 × 150	3	14.129	84.77
150 × 150	4	18.738	112.43
150 × 150	5	23.298	139.79
150 × 150	6	27.807	166.84
160 × 80	3	11.258	67.55
160 × 80	4	14.91	89.46
160 × 80	5	18.513	111.08
160 × 80	6	22.065	132.39
200 × 100	3	14.129	84.77
200 × 100	4	18.738	112.43
200 × 100	5	23.298	139.79
200 × 100	6	27.807	166.84
200 × 200	2	12.659	75.95
200 × 200	2.5	15.793	94.76
200 × 200	3	18.913	113.48
200 × 200	4	25.118	150.71
200 × 200	5	31.272	187.63
200 × 200	6	37.376	224.26

EN 10219 / ASTM A554; mill, 180/240 grit satin or mirror finish.

Grades, standards and tolerances

Mirror stainless steel tube — steel grades and standards
Grade / standard	Yield (MPa)	Note
1.4301 / 304 mirror	≥ 210	interiors — the stock grade
1.4401 / 316 mirror	≥ 220	coastal, spa, exterior signage
1.4016 / 430 mirror	≥ 260	dry indoor decoration, cheaper, to order
PVD-coated 304 / 316	as base	gold, rose-gold, champagne, bronze, black

PVD coatings are 0.3–0.5 µm ceramic layers (TiN, ZrN, TiCN) — colour-fast indoors for decades, scratch-resistant, not suitable for abrasive cleaning.

Finish and colour options

Mirror and PVD finishes on stainless tube — what each is and where it fits
Finish	Designation	Ra (µm)	Look	Use	Lead time
Mirror	No. 8 / 2P / 8K	≤ 0.05	true reflection	lobbies, retail, lifts, signage	stock
Super mirror	No. 8+ / 12K	≤ 0.03	distortion-free	art, luxury retail	3–4 weeks
PVD gold	TiN on mirror	≤ 0.05	bright gold	hotels, boutiques, mosques	2–4 weeks
PVD rose gold / champagne	ZrN / TiCN	≤ 0.05	warm metallic	residential, hospitality	2–4 weeks
PVD black / bronze	TiCN / TiAlN	≤ 0.05	dark mirror	contemporary interiors	2–4 weeks
PVD on satin	TiN on No. 4	0.3–0.5	brushed gold / black	railings, furniture	2–4 weeks

PVD colour matches within a batch; order all pieces of one project together. Not for chlorinated or abrasive cleaning.

Lengths and stock

304 mirror round Ø 12–101.6 mm × 1–1.5 mm and square 12 × 12 to 80 × 80 × 1–1.5 mm in 6 m from stock; 316 mirror in Ø 38.1–50.8 and 40 × 40; PVD colours and super-mirror to order in 2–4 weeks. Matching mirror fittings (elbows, end caps, flanges, glass clamps) from stock.

Handling, cutting and joining

Cut with a fine-tooth cold saw or tube laser through the film; deburr inward. Bending is possible on mandrel benders but marks the mirror — bend before polishing where you can, or design with fittings. Joints are best made with internal sleeves, adhesives or hidden mechanical fixings; where welding is unavoidable, TIG with purge, then grind, sand through 400–600 and re-buff — a specialist job. Keep the film on until final clean-up; clean with microfibre and glass cleaner only, never abrasives; wear gloves.

Where it is used

Hotel, restaurant and retail interiors — railings, screens, trims
Lift cars, doors and reveals
Signage, lettering supports and display stands
Furniture legs, frames and decorative panels
PVD gold and black tube for luxury and hospitality projects
Mosque, palace and ceremonial-hall decoration

Mirror vs satin — the practical choice

Satin tube is the default for anything touched daily — it hides marks and can be repaired; mirror is chosen for effect and protected accordingly. Both are the same 304/316 tube underneath, and the same square tube and round pipe sizes apply.

Price

Mirror tube carries a polishing premium of about 15–20 % over satin and PVD colours roughly double the tube price; 316 adds 40 %. The bands below are the month\'s indicative FOB Istanbul ranges for 304 mirror and for 316 / PVD tube. Fittings per piece.

Mirror 304 round / square · 12–76 mm3 900 – 4 300USD/MT · FOB Istanbul

Mirror 316 / PVD colour5 050 – 5 450USD/MT · FOB Istanbul

Bands from our weekly export list (September 2026), FOB Istanbul, full-container quantities, excluding freight and certificates. Firm price per project on RFQ within one working day.

Export and packing

Mirror tube is double-wrapped in PE film with foam separators and packed only in wooden crates (never loose bundles), 200–500 kg per crate, labelled fragile-finish; a 20' takes 10–12 t crated, a 40' HC 16–18 t. PVD tube is crated per colour. HS 7306.40 / 7306.61.

Term	Detail
MOQ	300 kg; PVD 100 pcs per colour and size
Incoterms	FOB Istanbul · CIF / CFR Gulf, Africa · DAP EU, Balkans, Iraq, Caucasus · DAP Aktau
Lead time	Stock 3–5 working days; 316 and PVD colours 2–4 weeks
Packing	Double PE film per tube, foam separators, wooden crates
Container / truck	20' ≈ 10–12 t (crated); 40' HC ≈ 16–18 t
Documents	Invoice, packing list, EN 10204 3.1, certificate of origin; 3.2 and PED on request
Payment	30% advance, balance against B/L copy; L/C at sight above 100 t

Certificates

Mirror and PVD tube ship with the strip mill's EN 10204 3.1 certificate, the tube mill's size and finish record and, for PVD, the coating batch reference and colour sample; a polished sample piece is sent before production for large projects.

How to order

Specify grade, shape and size, wall, finish (mirror / super-mirror / PVD colour), length, quantity, matching fittings and delivery; PVD orders need all sizes of a project listed together for one coating batch.

Standards

EN 10296-2 / ASTM A554 — ornamental tube
EN 10088-2 finish 2P (bright polished); ASTM No. 8
PVD coating: TiN / TiCN / ZrN (gold, rose, black)
EN 10204 3.1

Grades

Grade data sheets (chemistry, mechanicals, equivalents) are on our reference site: 1.4301 · 1.4401 · 1.4016

Frequently asked questions

What is mirror finish on stainless tube?

A buffed, reflective No. 8 / 2P / 8K surface with Ra below 0.05 µm — the tube reflects an image without distortion; used for decorative interiors, signage and as the base for PVD colours.

Can mirror tube be used outdoors?

In 316 yes, for signage and coastal decoration; it needs regular cleaning because every mark shows, and PVD colours should be kept from chlorinated cleaners.

What is PVD gold stainless tube?

Mirror (or satin) stainless tube coated by physical vapour deposition with a 0.3–0.5 µm titanium-nitride ceramic layer that gives a colour-fast gold, rose-gold, bronze or black finish.

Can a scratched mirror tube be repaired on site?

No — mirror finishes are re-polished in the workshop; protect the tube with its film until the site is finished.

What sizes of mirror tube are in stock?

304 mirror round Ø 12–101.6 mm and square 12–80 mm in 1–1.5 mm, 6 m; 316 mirror in handrail sizes; PVD colours to order in 2–4 weeks.
