What is DD13 forming steel?
DD13 is the third level of EN 10111 and the first true deep-drawing hot-rolled grade: aluminium-killed for a fine, stable grain, carbon at most 0.08 % (typically 0.03), manganese 0.40 %, phosphorus and sulphur 0.030 %, giving a yield window of 170–310 MPa, a tensile ceiling of 400 MPa and 33 % elongation with a six-month non-ageing guarantee. Where cold-rolled DC04 covers 0.4–3 mm, DD13 covers 1.5–6 mm (up to 12 mm at some mills), so it is the grade for thick drawn parts: wheel rims and discs (the classic use — rim strip is DD13 by default), LPG and CNG cylinder halves and feet (with EN 10120 cross-certification), drawn hubs, cups and housings, agricultural discs and pressed structural parts of construction machinery. It is supplied pickled and oiled — never black — because scale would score the die and the part. Drawing behaviour is close to DC04 (r ≈ 1.2–1.4 on hot-rolled texture, n ≈ 0.20); draw ratios to about 1.9 in one stroke. It is a stock grade in Turkey thanks to the wheel and cylinder industries, and the one we hold.
Chemical composition
| Element | C | Mn | P | S |
|---|---|---|---|---|
| max. % (ladle) | 0.08 | 0.40 | 0.030 | 0.030 |
Typical heat: C 0.02–0.04, Mn 0.20–0.30, Al 0.03–0.06 (killed).
Mechanical properties and deep-drawing behaviour
| Property | Requirement | Typical value | Note |
|---|---|---|---|
| Yield strength ReH | 170–310 MPa (≤ 330 below 2 mm) | 190–250 MPa | |
| Tensile strength Rm | ≤ 400 MPa | 300–360 MPa | |
| Elongation A80 | ≥ 33 % | 35–40 % | |
| r / n (typical) | not specified | ≈ 1.3 / 0.20 | |
| Bend radius | 0 × t | passes | |
| Ageing | non-ageing 6 months | guaranteed |
Equivalent grades
| System | Grade | Note |
|---|---|---|
| DIN 1614-1 (old) | StW 24 | historic German |
| EN 10111 (1998) | DD13 | previous edition |
| JIS G3131 | SPHE | |
| ASTM A1011 | DDS Type A | |
| GB/T 3273 / 5213 | SPHE |
Why a drawing grade is ordered pickled
| Condition | Process | Surface | Best for |
|---|---|---|---|
| Black (HR, as-rolled) | none — mill scale left on | blue-black oxide, 10–40 µm, flakes when bent | welded structures, plate to be blasted, hidden parts |
| HRPO (pickled & oiled) | HCl pickling of coil, rinse, light oil | uniform grey-metallic, scale-free, Ra ≈ 1–3 µm | forming, painting, roll-forming, tube making, visible parts |
| HRP / HRPO skin-passed | pickling + temper pass | flatter, tighter gauge, no Lüders lines | pressing, blanking, precision parts |
| Dry (pickled, unoiled) | pickling, no oil | bare, rusts within days | immediate galvanizing or welding only |
A drawing grade is almost always pickled: scale cracks off in the draw, embeds in the die and marks every following part. Ask for a temper pass as well when the stretch is deep enough to raise Lüders lines.
Thickness range and stock sizes
| Thickness | Widths × lengths | Availability |
|---|---|---|
| 1.5–3.0 mm | coil 1 000 / 1 250 / 1 500 mm; slit rim strips | stock HRPO |
| 4.0–6.0 mm | coil 1 250 / 1 500 mm; sheet 2 500 / 3 000; blanks | stock HRPO |
| 8–12 mm | coil / sheet, pickled | to order 2–3 weeks |
Weight per m² and per sheet
| Thickness | kg/m² | 1 000 × 2 000 (kg) | 1 250 × 2 500 (kg) | 1 500 × 3 000 (kg) |
|---|---|---|---|---|
| 1.5 mm | 11.78 | 23.6 | 36.8 | 53.0 |
| 2 mm | 15.70 | 31.4 | 49.1 | 70.7 |
| 2.5 mm | 19.63 | 39.3 | 61.3 | 88.3 |
| 3 mm | 23.55 | 47.1 | 73.6 | 106.0 |
| 4 mm | 31.40 | 62.8 | 98.1 | 141.3 |
| 5 mm | 39.25 | 78.5 | 122.7 | 176.6 |
| 6 mm | 47.10 | 94.2 | 147.2 | 212.0 |
Uncoated; tolerances to EN 10051.
Forming, welding and painting
Deep drawing to a ratio of about 1.9, redraws with or without intermediate annealing, flow-forming of rims, flanging and hemming at 0 × t; drawing oil or the mill oil for light draws, polished tools. Welds without preheat (very low carbon) — rim strip is flash-butt welded, cylinder halves MAG or SAW welded, to EN 10120 procedures where certified. Paint after degreasing; the pickled surface takes e-coat and powder directly.
Where it is used
- Wheel rims and discs for cars, trucks, tractors and trailers
- LPG / CNG cylinder halves, feet and collars
- Drawn hubs, cups, housings and covers in 2–6 mm
- Agricultural discs and pressed implements
- Construction-machinery pressed parts
- Drawn parts too thick for cold-rolled sheet
DD13 vs DD14 vs DC04
DD14 narrows the window to 170–290 MPa with 36 % elongation for the deepest hot-rolled draws — a mill-order grade. DC04 is the cold-rolled deep-drawing sheet for 0.4–3 mm with a smoother surface and tighter gauge. DD13 is the stock choice between 1.5 and 6 mm; go to DD14 only above a draw ratio of about 2, and to DC04 when the part is thin or visible.
Price
DD13 is priced about 20 USD/t over DD11 HRPO; the band below is the month's indicative FOB Istanbul range for our stock. Blanking and slitting priced per ton.
Bands from our weekly export list (September 2026), FOB Istanbul, full-container quantities, excluding freight and certificates. Firm price per project on RFQ within one working day.
Export and packing
Export packing of DD13 forming steel: coil eye-to-sky, VCI paper; blanks interleaved on skids. Loading: 20' one coil ≤ 20 t; 40' HC two coils or 24 t sheet. HS code is assigned by surface and alloy: 7208 (hot-rolled), 7209 (cold-rolled), 7210 (coated), 7225 / 7226 (alloy).
| Term | Detail |
|---|---|
| MOQ | One coil (10–25 t) or 5 t of sheet |
| Incoterms | FOB Istanbul · CIF / CFR Gulf, Africa · DAP EU, Balkans, Iraq, Caucasus · DAP Aktau |
| Lead time | Stock 1.5–6 mm HRPO: 3–5 working days; blanks 5–8 days |
| Packing | Coil eye-to-sky, VCI paper; blanks interleaved on skids |
| Container / truck | 20' one coil ≤ 20 t; 40' HC two coils or 24 t sheet |
| Documents | Invoice, packing list, EN 10204 3.1 (3.2 on request), certificate of origin; SASO / SONCAP / PVoC on request |
| Payment | 30% advance, balance against B/L copy; L/C at sight for orders above 100 t |
Certificates and testing
DD13 forming steel is released against an EN 10204 3.1 certificate giving the heat number, the ladle analysis and the mechanical values at the delivered thickness. Where the buyer's file needs an inspected release we organise 3.2 witnessing at the mill. We can also report the thickness measured across the strip width and the flatness at the cut edge.
How to order
Specify thickness × width (or slit / blank size), tonnage, the part and any cross-certification (e.g. EN 10120 for cylinders); stock confirmed the same day.
Standards
- EN 10111:2008 — DD13, 1.0335
- EN 10051 — tolerances
- EN 10204 3.1
- Former DIN 1614 StW 24
Grades
Grade data sheets (chemistry, mechanicals, equivalents) are on our reference site: DD13 · DD12 · DD14
Frequently asked questions
What is DD13 steel?
The deep-drawing hot-rolled steel of EN 10111 (1.0335, ex StW 24): Al-killed, yield 170–310 MPa, elongation ≥ 33 %, non-ageing, supplied pickled and oiled in 1.5–6 mm for wheel rims, cylinders and thick drawn parts.
What steel is used for wheel rims?
DD13 (or DD12) hot-rolled pickled strip is the standard rim material in Europe and Turkey; high-strength rims use S355MC–S420MC.
What is the equivalent of DD13?
DIN StW 24, JIS SPHE, ASTM A1011 DDS Type A.
What is the difference between DD13 and DC04?
Both are deep-drawing grades; DD13 is hot-rolled (1.5–6 mm, hot-rolled tolerances, pickled surface), DC04 is cold-rolled (0.4–3 mm, tighter gauge, smoother surface, higher price).
Is DD13 in stock in Turkey?

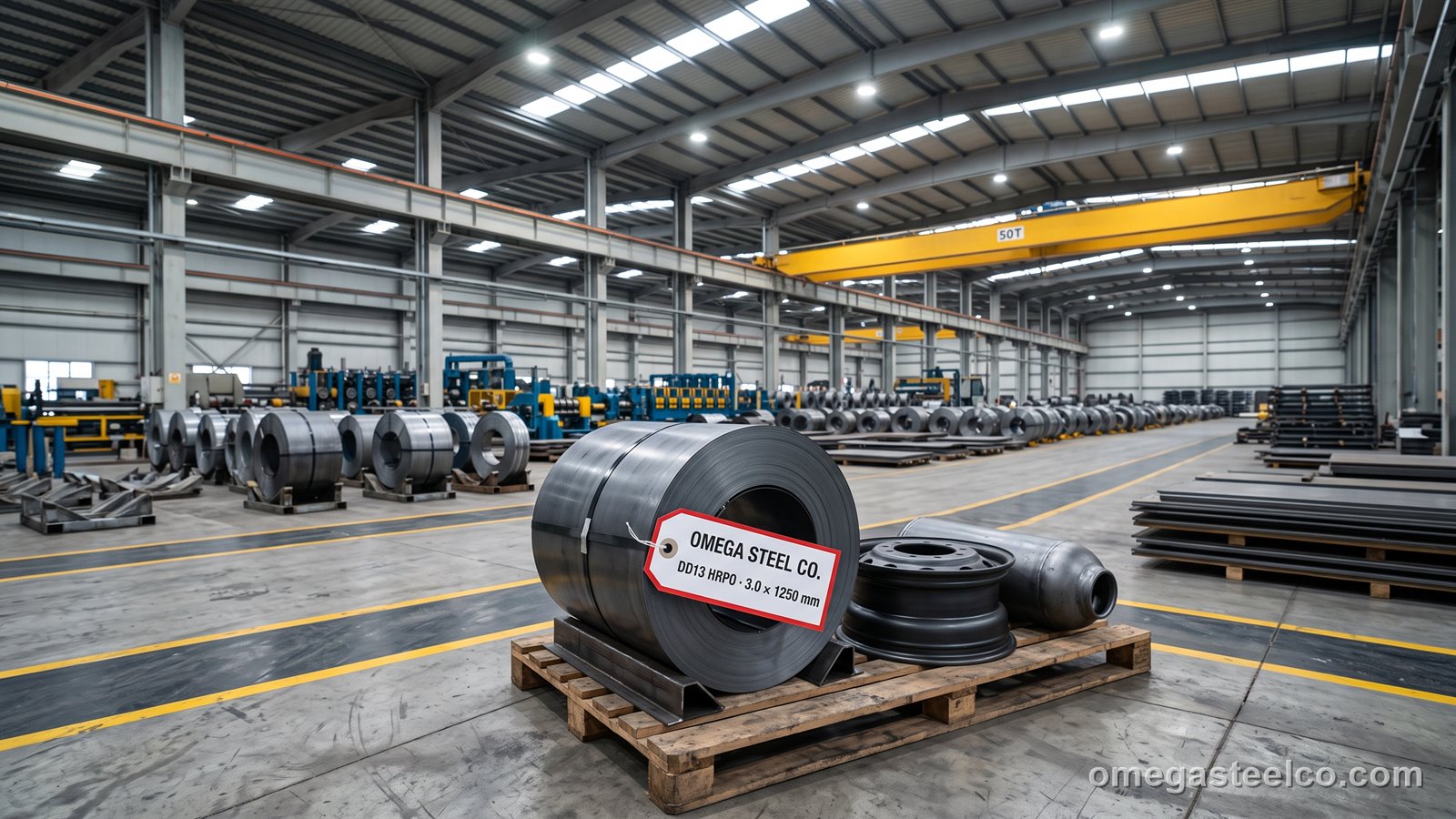

Yes — 1.5–6 mm pickled and oiled, coil and sheet, at our Dilovası warehouse.
